series TRITOR series TRITOR 101, 102, 200/20PENTOR – 5 axes system

compact multi dimensional translation stages

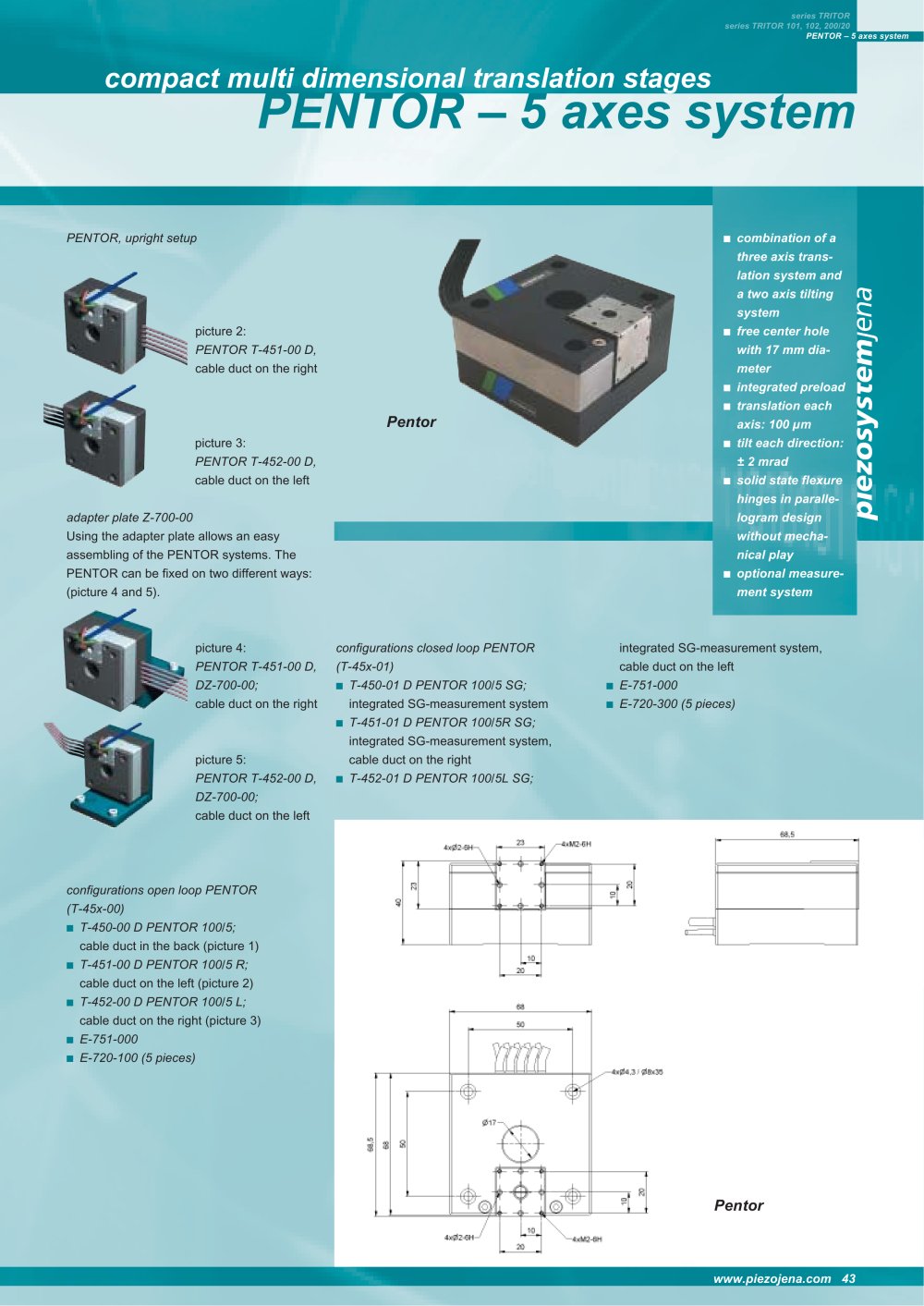

General Catalog - 14251 PENTOR – 5 axes system

PENTOR, upright setup combination of a three axis trans- lation system and a two axis tilting system picture 2: cable duct on the rightpicture 3: free center hole with 17 mm dia- meter PENTOR T-451-00 D, integrated preload cable duct on the left translation each axis: 100 µm PENTOR T-452-00 D,

Pentor Pentor

adapter plate Z-700-00 cable duct on the right picture 5: tilt each direction: ±2 mrad Using the adapter plate allows an easy assembling of the PENTOR systems. The PENTOR can be fixed on two different ways: (picture 4 and 5).picture 4: PENTOR T-451-00 D, DZ-700-00; cable duct on the left solid state flexure hinges in paralle- logram design without mecha- nical play PENTOR T-452-00 D, DZ-700-00; configurations open loop PENTOR (T-45x-00) optional measure- ment system integrated SG-measurement system, cable duct on the left integrated SG-measurement system T-450-01 D PENTOR 100/5 SG; E-751-000 integrated SG-measurement system, cable duct on the right E-720-300 (5 pieces) T-451-01 D PENTOR 100/5R SG; T-452-01 D PENTOR 100/5L SG; cable duct in the back (picture 1) T-450-00 D PENTOR 100/5; cable duct on the left (picture 2) T-451-00 D PENTOR 100/5 R; cable duct on the right (picture 3) T-452-00 D PENTOR 100/5 L; E-751-000 E-720-100 (5 pieces) configurations closed loop PENTOR (T-45x-01) www.piezojena.com 43
