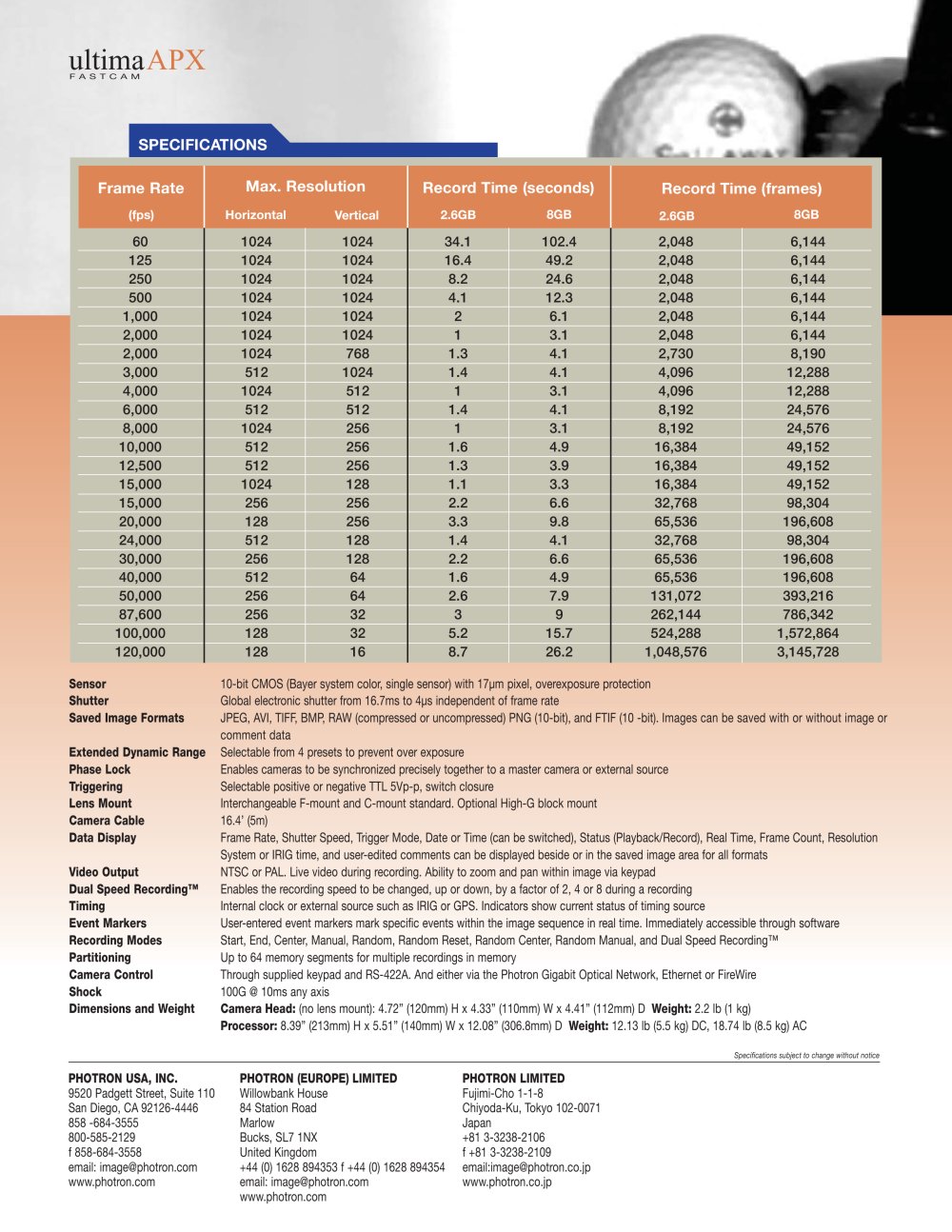

ultimaAPX

F A S T C A M

SPECIFICATIONS

Max. Resolution

Record Time (seconds)

2.6GB 8GB

Frame Rate

(fps)

Record Time (frames)

Horizontal

Vertical

8GB

2.6GB


60	1024	1024	34.1	102.4	2,048	6,144
125	1024	1024	16.4	49.2	2,048	6,144
250	1024	1024	8.2	24.6	2,048	6,144
500	1024	1024	4.1	12.3	2,048	6,144
1,000	1024	1024	2	6.1	2,048	6,144
2,000	1024	1024	1	3.1	2,048	6,144
2,000	1024	768	1.3	4.1	2,730	8,190
3,000	512	1024	1.4	4.1	4,096	12,288
4,000	1024	512	1	3.1	4,096	12,288
6,000	512	512	1.4	4.1	8,192	24,576
8,000	1024	256	1	3.1	8,192	24,576
10,000	512	256	1.6	4.9	16,384	49,152
12,500	512	256	1.3	3.9	16,384	49,152
15,000	1024	128	1.1	3.3	16,384	49,152
15,000	256	256	2.2	6.6	32,768	98,304
20,000	128	256	3.3	9.8	65,536	196,608
24,000	512	128	1.4	4.1	32,768	98,304
30,000	256	128	2.2	6.6	65,536	196,608
40,000	512	64	1.6	4.9	65,536	196,608
50,000	256	64	2.6	7.9	131,072	393,216
87,600	256	32	3	9	262,144	786,342
100,000	128	32	5.2	15.7	524,288	1,572,864
120,000	128	16	8.7	26.2	1,048,576	3,145,728

Sensor Shutter

Saved Image Formats

Extended Dynamic Range

Phase Lock

Triggering

Lens Mount

Camera Cable

Data Display

Video Output

Dual Speed Recording™

Timing

Event Markers Recording Modes Partitioning Camera Control Shock

Dimensions and Weight

10-bit CMOS (Bayer system color, single sensor) with 17pm pixel, overexposure protection Global electronic shutter from 16.7ms to 4us independent of frame rate

JPEG, AVI, TIFF, BMP, RAW (compressed or uncompressed) PNG (10-bit), and FTIF (10 -bit). Images can be saved with or without image or comment data

Selectable from 4 presets to prevent over exposure

Enables cameras to be synchronized precisely together to a master camera or external source

Selectable positive or negative TTL 5Vp-p, switch closure

Interchangeable F-mount and C-mount standard. Optional High-G block mount

16.4' (5m)

Frame Rate, Shutter Speed, Trigger Mode, Date or Time (can be switched), Status (Playback/Record), Real Time, Frame Count, Resolution

System or IRIG time, and user-edited comments can be displayed beside or in the saved image area for all formats

NTSC or PAL. Live video during recording. Ability to zoom and pan within image via keypad

Enables the recording speed to be changed, up or down, by a factor of 2, 4 or 8 during a recording

Internal clock or external source such as IRIG or GPS. Indicators show current status of timing source

User-entered event markers mark specific events within the image sequence in real time. Immediately accessible through software

Start, End, Center, Manual, Random, Random Reset, Random Center, Random Manual, and Dual Speed Recording™

Up to 64 memory segments for multiple recordings in memory

Through supplied keypad and RS-422A. And either via the Photron Gigabit Optical Network, Ethernet or FireWire 100G @ 10ms any axis

Camera Head: (no lens mount): 4.72" (120mm) H x 4.33" (110mm) W x 4.41" (112mm) D Weight: 2.2 lb (1 kg) Processor: 8.39" (213mm) H x 5.51" (140mm) W x 12.08" (306.8mm) D Weight: 12.13 lb (5.5 kg) DC, 18.74 lb (8.5 kg) AC

Specifications subject to change without notice
