Digital camera, Camera, Intensified camera, High speed camera, CMOS camera
Text version of the page

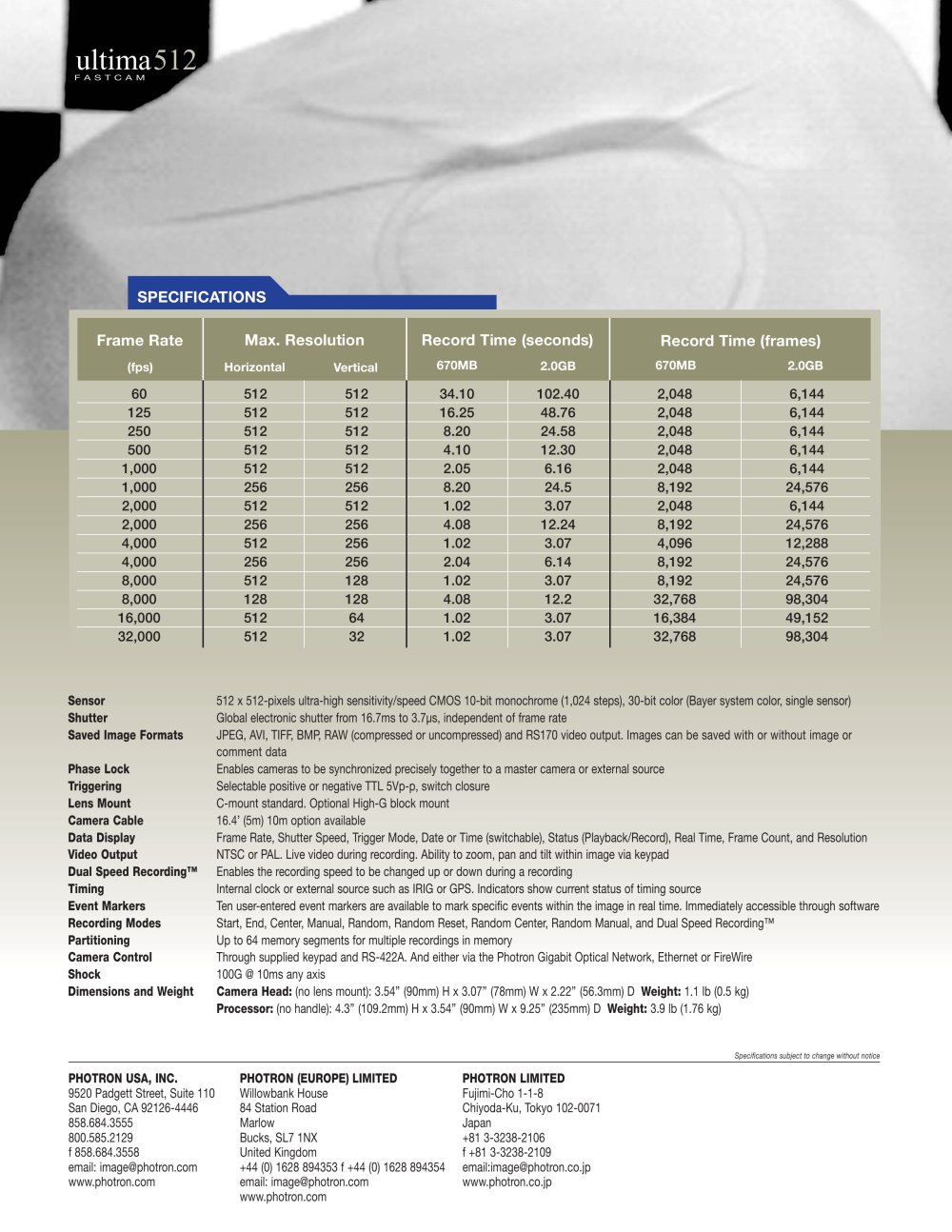

| Sensor Shutter Saved Image Formats Phase Lock Triggering Lens Mount Camera Cable Data Display Video Output Dual Speed Recording™ Timing Event Markers Recording Modes Partitioning Camera Control Shock Dimensions and Weight | 512 x 512-pixels ultra-high sensitivity/speed CMOS 10-bit monochrome (1,024 steps), 30-bit color (Bayer system color, single sensor) Global electronic shutter from 16.7ms to 3.7us, independent of frame rate JPEG, AVI, TIFF BMP, RAW (compressed or uncompressed) and RS170 video output. Images can be saved with or without image or comment data Enables cameras to be synchronized precisely together to a master camera or external source Selectable positive or negative TTL 5Vp-p, switch closure C-mount standard. Optional High-G block mount 16.4' (5m) 10m option available Frame Rate, Shutter Speed, Trigger Mode, Date or Time (switchable), Status (Playback/Record), Real Time, Frame Count, and Resolution NTSC or PAL. Live video during recording. Ability to zoom, pan and tilt within image via keypad Enables the recording speed to be changed up or down during a recording Internal clock or external source such as IRIG or GPS. Indicators show current status of timing source Ten user-entered event markers are available to mark specific events within the image in real time. Immediately accessible through software Start, End, Center, Manual, Random, Random Reset, Random Center, Random Manual, and Dual Speed Recording™ Up to 64 memory segments for multiple recordings in memory Through supplied keypad and RS-422A. And either via the Photron Gigabit Optical Network, Ethernet or FireWire 100G @ 10ms any axis Camera Head: (no lens mount): 3.54" (90mm) H x 3.07" (78mm) W x 2.22" (56.3mm) D Weight: 1.1 lb (0.5 kg) Processor: (no handle): 4.3" (109.2mm) H x 3.54" (90mm) W x 9.25" (235mm) D Weight: 3.9 lb (1.76 kg) | ||||||||||||
| Specifications subject to change without notice | |||||||||||||
