Photron's high-speed camera captures a 40 mile perhour vehicle impact test. All vehicles are subjectedto
rigorous crash and sled tests,every one of which
must be recorded at 1,000 frames per second for the
engineers to analyze to see how the vehicle and
dummy occupants interact. These images are selected
from the original 1,000 fps recording.
Variable speed resolutions,including:1,024 x 1,024-pixels at 1,000 fps 512 x 512-pixels at 3,000 fps 27,000 fps at 128 x 128-pixels 109,500 fps at reduced resolutionGlobal shuttering to 2µs,independent frame rate selectedExpandable memory offers several different configurations(PCI card and memory daughter PCB still fit in a single PCI slot) providing a wide range of record times:2GB for 1.6 seconds at 1,000 fps full resolution 4GB for 3.08 seconds at 1,000 fps full resolution6GB for 4.6 seconds at 1,000 fps full resolution8GB for 6.2 seconds at 1,000 fps full resolution 12GB for 9.2 seconds at 1,000 fps full resolution 16GB for 12.3 seconds at 1,000 fps full resolution24GB for 18.5 seconds at 1,000 fps full resolutionFits in single PCI slot,regardless of memory configurationselectedCamera is connected to PCI card via 16 foot (5m) flexible cable User defined ‘Region Of Interest’ Ultima APX with large 17 micron squarepixels, the 1024 PCI operates from 60 to 1,000 fps at full1,024 x 1,024-pixels resolution, and at reduced resolution all the way to a top speed of 109,500 fps.A global electronic shutter, operating down to 1.5microseconds ensures even the fastest moving objects are frozen, blur free, in every image. A user selectable ‘Region Of Interest’ function enables theactive image area to be defined in steps of 128 pixels wide by 16 pixels high to allow the most efficient use of frame rate, image resolution and memory capacity for any event. Up to 20 commonly used configurations can be saved to memory for future operation.A single flexible sixteen foot (5 meter) cable allows thelightweight camera head easy access to any location.

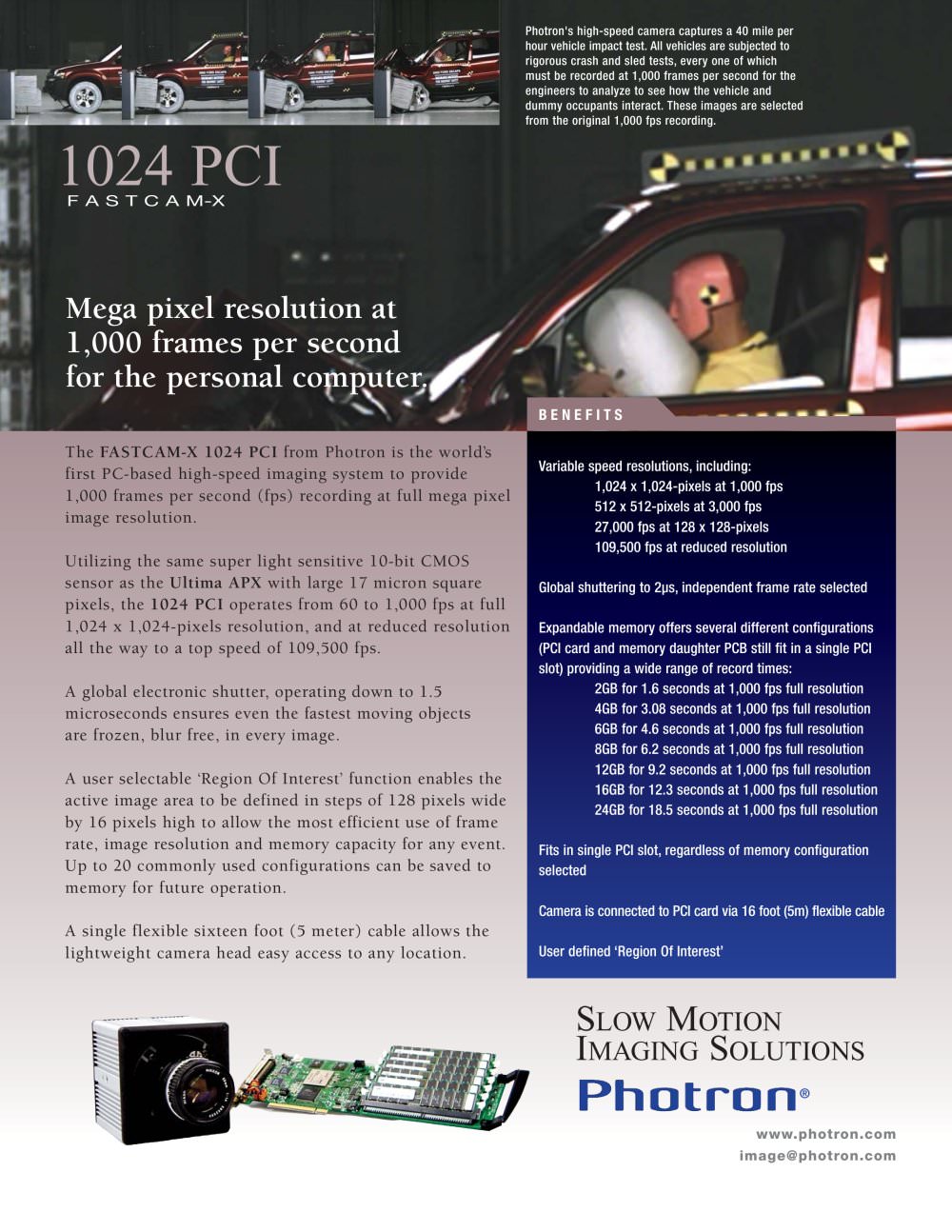

1024 PCI - 25374 1024 PCI
F A S T C A M-XMega pixel resolution at1,000 frames per second for the personal computer.
BENEFITS The FASTCAM-X 1024 PCI from Photron is the world’sfirst PC-based high-speed imaging system to provide 1,000 frames per second (fps) recording at full mega pixel image resolution.Utilizing the same super light sensitive 10-bit CMOS sensor as theVariable speed resolutions,including:1,024 x 1,024-pixels at 1,000 fps 512 x 512-pixels at 3,000 fps 27,000 fps at 128 x 128-pixels 109,500 fps at reduced resolutionGlobal shuttering to 2µs,independent frame rate selectedExpandable memory offers several different configurations(PCI card and memory daughter PCB still fit in a single PCI slot) providing a wide range of record times:2GB for 1.6 seconds at 1,000 fps full resolution 4GB for 3.08 seconds at 1,000 fps full resolution6GB for 4.6 seconds at 1,000 fps full resolution8GB for 6.2 seconds at 1,000 fps full resolution 12GB for 9.2 seconds at 1,000 fps full resolution 16GB for 12.3 seconds at 1,000 fps full resolution24GB for 18.5 seconds at 1,000 fps full resolutionFits in single PCI slot,regardless of memory configurationselectedCamera is connected to PCI card via 16 foot (5m) flexible cable User defined ‘Region Of Interest’ Ultima APX with large 17 micron squarepixels, the 1024 PCI operates from 60 to 1,000 fps at full1,024 x 1,024-pixels resolution, and at reduced resolution all the way to a top speed of 109,500 fps.A global electronic shutter, operating down to 1.5microseconds ensures even the fastest moving objects are frozen, blur free, in every image. A user selectable ‘Region Of Interest’ function enables theactive image area to be defined in steps of 128 pixels wide by 16 pixels high to allow the most efficient use of frame rate, image resolution and memory capacity for any event. Up to 20 commonly used configurations can be saved to memory for future operation.A single flexible sixteen foot (5 meter) cable allows thelightweight camera head easy access to any location.
