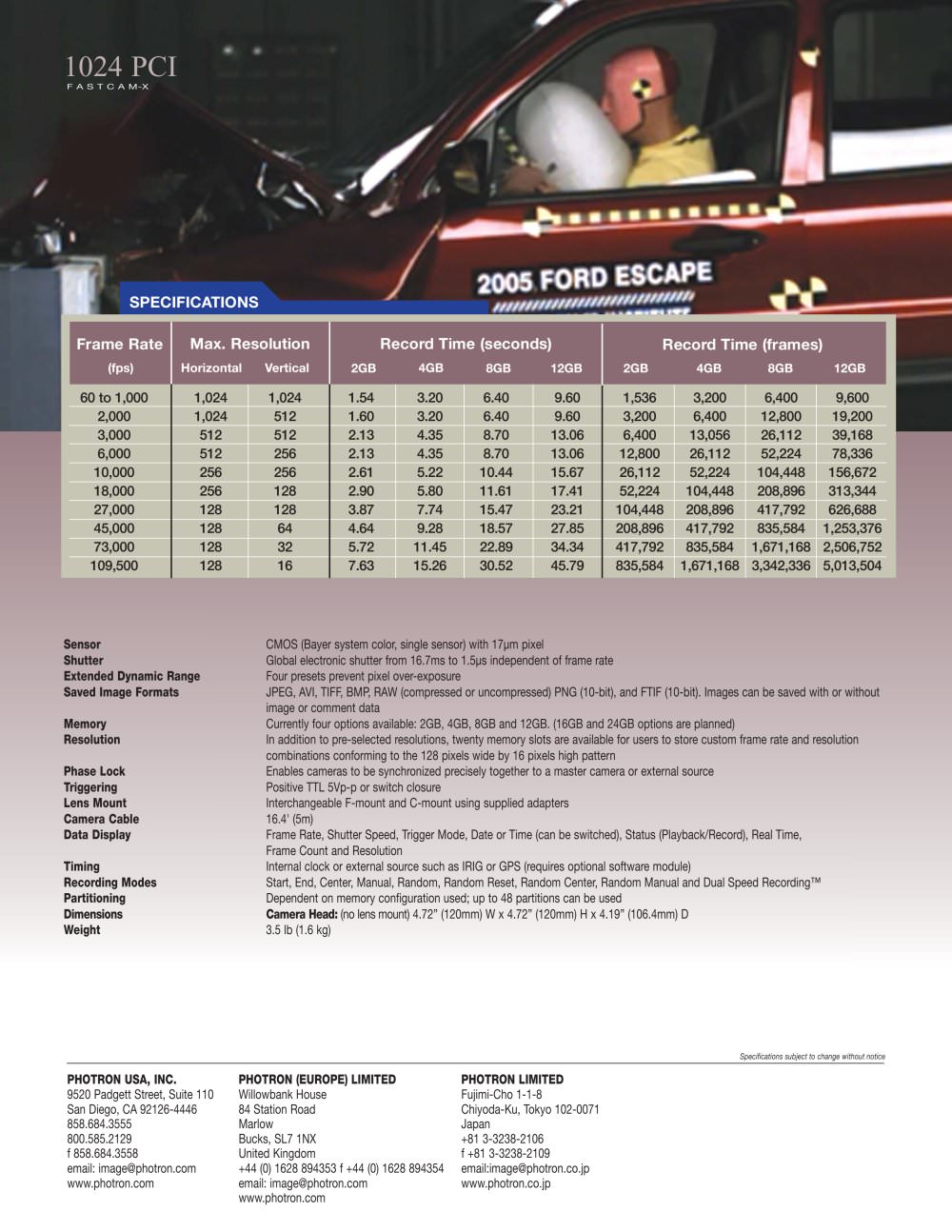

Record Time (seconds)

Record Time (frames)

(fps) Horizontal Vertical 2GB 4GB 8GB 12GB 2GB 4GB 8GB 12GB

60 to 1,000

1,024

1.54

3.20

6.40

9.60

1,536

3,200

6,400

9,600

2,000

1,024

512

1.60

3.20

6.40

9.60

3,200

6,400

12,800

19,200

3,000

512

2.13

4.35

8.70

13.06

6,400

13,056

26,112

39,168

6,000

512

256

2.13

4.35

8.70

13.06

12,800

26,112

52,224

78,336

10,000

256

2.61

5.22

10.44

15.67

26,112

52,224

104,448

156,672

18,000

256

128

2.90

5.80

11.61

17.41

52,224

104,448

208,896

313,344

27,000

128

3.87

7.74

15.47

23.21

104,448

208,896

417,792

626,688

45,000

128

4.64

9.28

18.57

27.85

208,896

417,792

835,584

1,253,376

73,000

128

5.72

11.45

22.89

34.34

417,792

835,584

1,671,168

2,506,752

109,500

128

7.63

15.26

30.52

45.79

835,584

1,671,168

3,342,336

5,013,504

Sensor Shutter

Extended Dynamic Range Saved Image Formats

Memory Resolution

Phase Lock

Triggering Lens Mount

Camera Cable

Data Display Timing

Recording Modes Partitioning Dimensions Weight

CMOS (Bayer system color, single sensor) with 17pm pixel

Global electronic shutter from 16.7ms to 1.5us independent of frame rate

Four presets prevent pixel over-exposure

JPEG, AVI, TIFF, BMP, RAW (compressed or uncompressed) PNG (10-bit), and FTIF (10-bit). Images can be saved with or without image or comment data

Currently four options available: 2GB, 4GB, 8GB and 12GB. (16GB and 24GB options are planned)

In addition to pre-selected resolutions, twenty memory slots are available for users to store custom frame rate and resolution

combinations conforming to the 128 pixels wide by 16 pixels high pattern

Enables cameras to be synchronized precisely together to a master camera or external source

Positive TTL 5Vp-p or switch closure

Interchangeable F-mount and C-mount using supplied adapters

16.4' (5m)

Frame Rate, Shutter Speed, Trigger Mode, Date or Time (can be switched), Status (Playback/Record), Real Time,

Frame Count and Resolution

Internal clock or external source such as IRIG or GPS (requires optional software module)

Start, End, Center, Manual, Random, Random Reset, Random Center, Random Manual and Dual Speed Recording™

Dependent on memory configuration used; up to 48 partitions can be used

Camera Head: (no lens mount) 4.72" (120mm) W x 4.72" (120mm) H x 4.19" (106.4mm) D

3.5 lb (1.6 kg)

Specifications subject to change without notice
