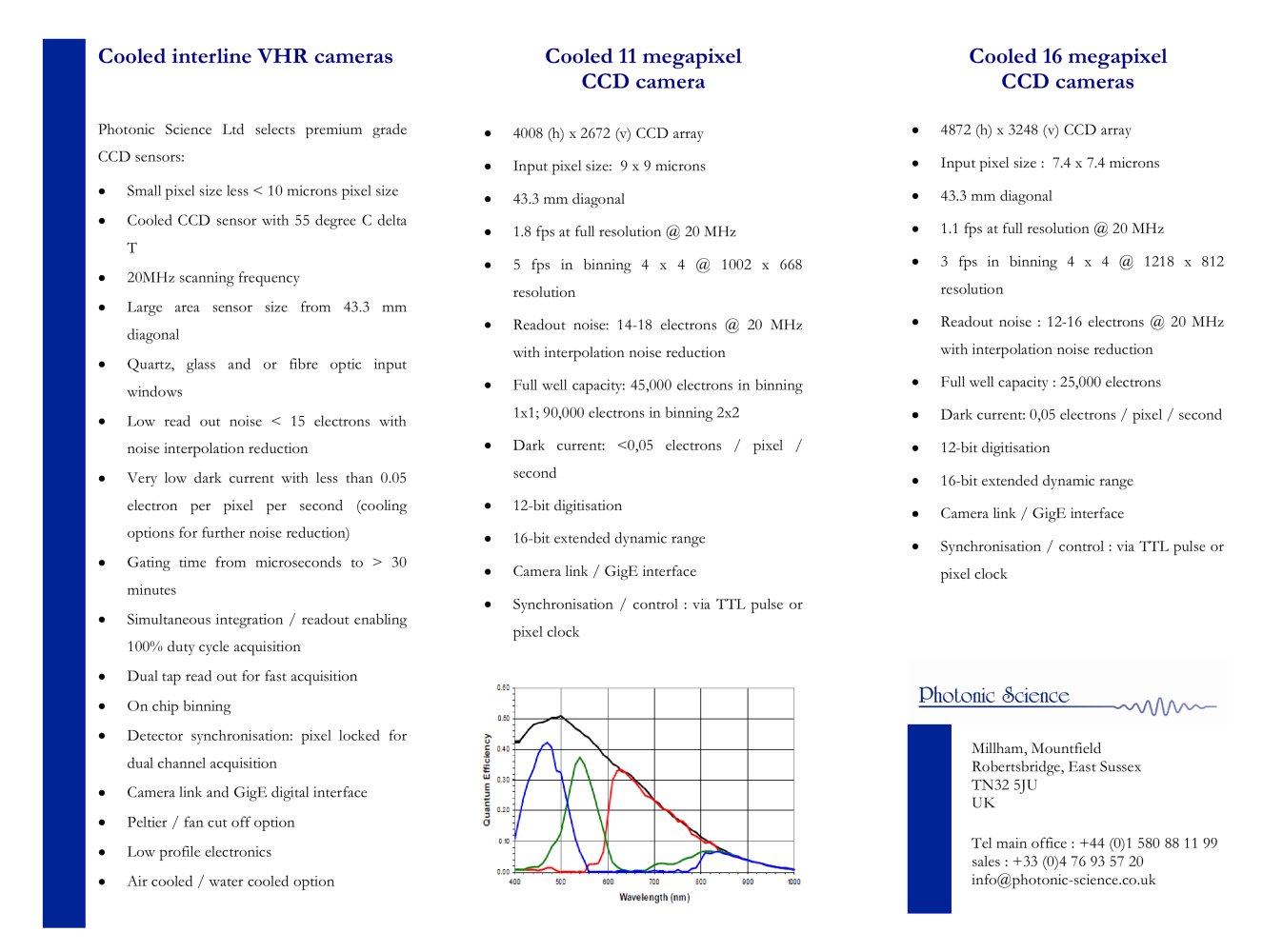

Cooled interline VHR cameras Cooled 11 megapixel CCD camera • 4008 (h) x 2672 (v) CCD array • Input pixel size: 9 x 9 microns • 43.3 mm diagonal 1.8 fps at full resolution @ 20 MHz • 5 fps in binning 4 x 4 @ 1002 x 668 resolution • Readout noise: 14-18 electrons @ 20 MHz with interpolation noise reduction Full well capacity: 45,000 electrons in binning 1x1; 90,000 electrons in binning 2x2 Dark current: <0,05 electrons / pixel / second 12-bit digitisation 16-bit extended dynamic range Camera link / GigE interface Synchronisation / control : via TTL pulse or pixel clock Cooled 16 megapixel CCD cameras 4872 (h) x 3248 (v) CCD array Input pixel size : 7.4 x 7.4 microns 43.3 mm diagonal 1.1 fps at full resolution @ 20 MHz 3 fps in binning 4 x 4 @ 1218 x 812 resolution Readout noise : 12-16 electrons @ 20 MHz with interpolation noise reduction Full well capacity : 25,000 electrons Dark current: 0,05 electrons / pixel / second 12-bit digitisation 16-bit extended dynamic range Camera link / GigE interface Synchronisation / control : via TTL pulse or pixel clock Photonic Science Ltd selects premium grade CCD sensors: • Small pixel size less < 10 microns pixel size • Cooled CCD sensor with 55 degree C delta T • 20MHz scanning frequency • Large area sensor size from 43.3 mm diagonal Quartz, glass and or fibre optic input windows Low read out noise < 15 electrons with noise interpolation reduction Very low dark current with less than 0.05 electron per pixel per second (cooling options for further noise reduction) Gating time from microseconds to > 30 minutes Simultaneous integration / readout enabling 100% duty cycle acquisition Dual tap read out for fast acquisition On chip binning Detector synchronisation: pixel locked for dual channel acquisition Camera link and GigE digital interface Peltier / fan cut off option Low profile electronics Air cooled / water cooled option Millham, Mountfield Robertsbridge, East Sussex TN32 5JU UK Tel main office : +44 (0)1 580 88 11 99 sales : +33 (0)4 76 93 57 20 info@photonic-science.co.uk
