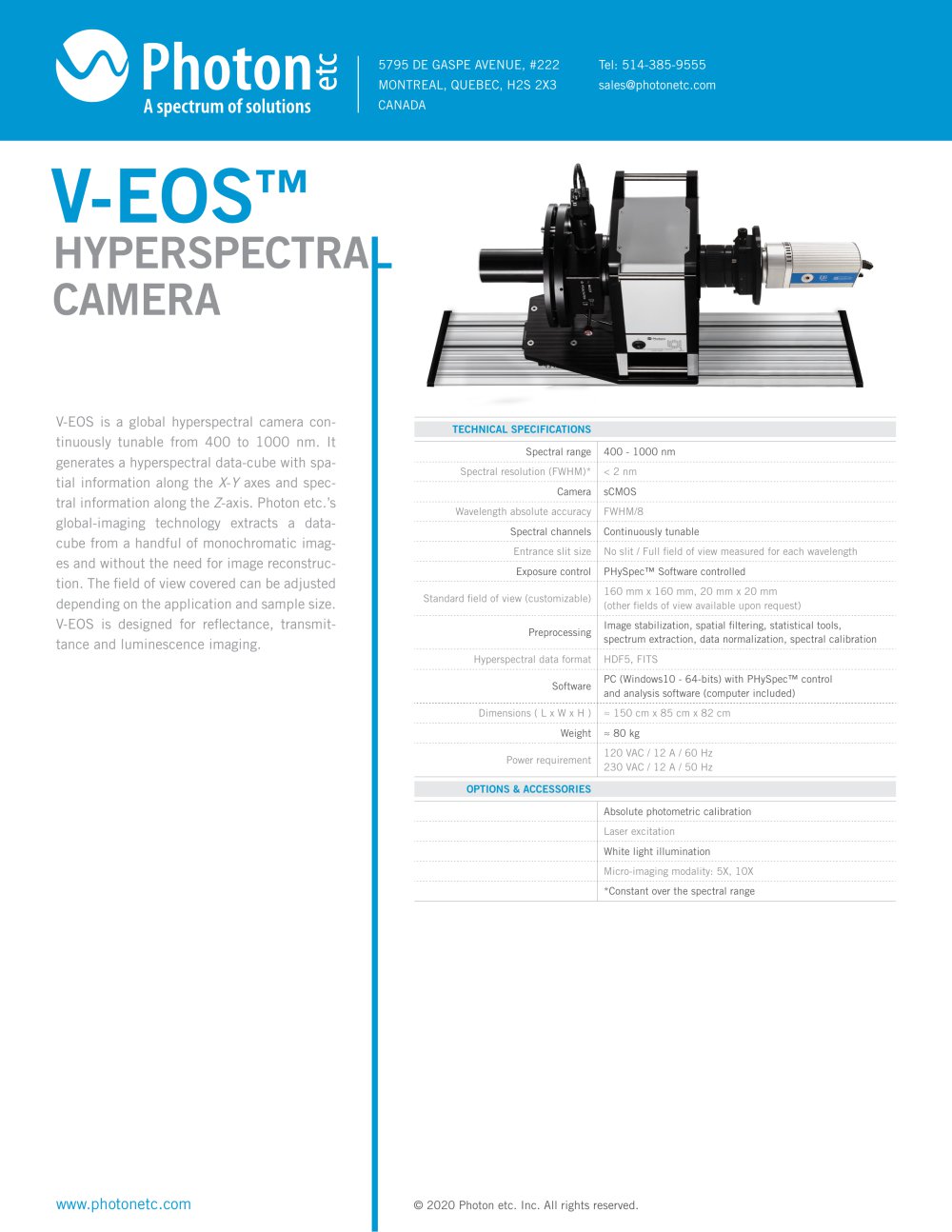

5795 DE GASPE AVENUE, #222 MONTREAL, QUEBEC, H2S 2X3 CANADA V-EOS™HYPERSPECTRACAMERA V-EOS is a global hyperspectral camera continuously tunable from 400 to 1000 nm. It generates a hyperspectral data-cube with spatial information along the X-Y axes and spectral information along the Z-axis. Photon etc.’s global-imaging technology extracts a data-cube from a handful of monochromatic images and without the need for image reconstruction. The field of view covered can be adjusted depending on the application and sample size. V-EOS is designed for reflectance, transmittance and luminescence imaging. TECHNICAL SPECIFICATIONS © 2020 Photon etc. Inc. All rights reserved.

V-EOS OPENS THE DOOR TO: » Photovoltaic characterization » Counterfeit examination » Forensic research » Food and plant sorting grand-EOS Spectral range 400 - 1620 nm Micro and macro modalities GLOBAL IMAGING VS RASTER SCANNING: Hyperspectral global imaging acquires monochromatic images and scans the wavelengths. In contrast, a spectral measurement performed with raster scanning technology is taken point by point or line by line by moving the sample or the excitation source. The number of acquisitions being much lower in global imaging (a few hundred wavelengths compared to several hundreds of...
