HIGH-PERFORMANCE EMCCD & CCD CAMERAS FOR LIFE SCIENCES

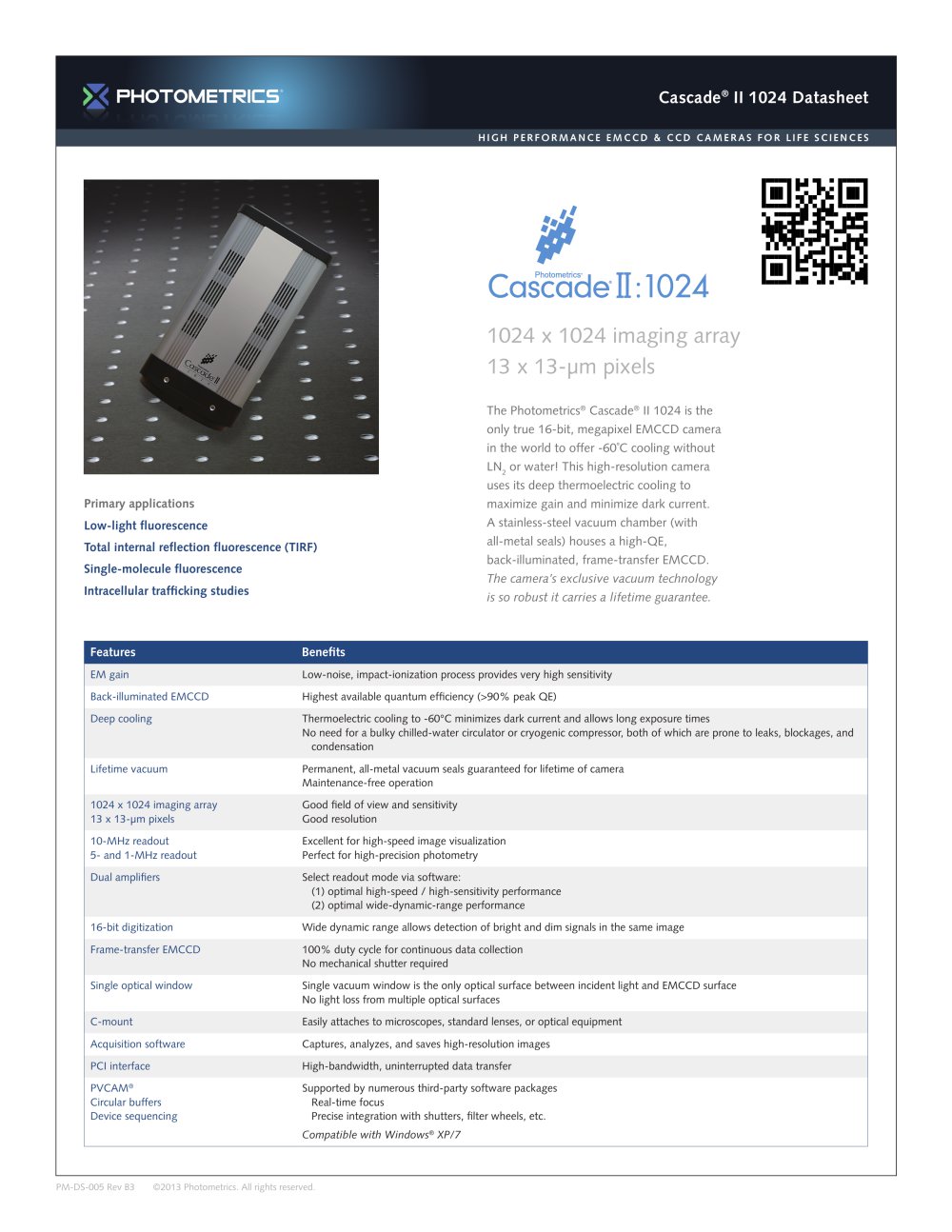

Cascade II:1024 The Most Versatile Megapixel EMCCD Camera - 35150 1024 x 1024 imaging array13 x 13-µm pixels

The camera’s exclusive vacuum technology is so robust it carries a lifetime guarantee.

®

Cascade

®

II:1024 is the only true 16-bit, megapixel EMCCD camera in the world to offer -60ËšC cooling without LN

2

or water! This high-resolution camera uses its deep thermoelectric cooling to maximize gain and minimize dark current. A stainless-steel vacuum chamber (with all-metal seals) houses a high-QE, back-illuminated, frame-transfer EMCCD. Primary applications Low-light fluorescence Total internal reflection fluorescence (TIRF) Single-molecule fluorescence Intracellular trafficking studies The Photometrics Features Benefits

EM gain Low-noise, impact-ionization process provides very high sensitivity Back-illuminated EMCCD Highest available quantum efficiency (>90% peak QE) Deep cooling Thermoelectric cooling to -60°C minimizes dark current and allows long exposure timesNo need for a bulky chilled-water circulator or cryogenic compressor, both of which are prone to leaks, blockages, and condensation Lifetime vacuum Permanent, all-metal vacuum seals guaranteed for lifetime of camera Maintenance-free operation 1024 x 1024 imaging array 13 x 13-µm pixels Good field of view and sensitivity Good resolution 10-MHz readout 5- and 1-MHz readout Excellent for high-speed image visualization Perfect for high-precision photometry Dual amplifiers Select readout mode via software: (1) optimal high-speed / high-sensitivity performance (2) optimal wide-dynamic-range performance 16-bit digitization Wide dynamic range allows detection of bright and dim signals in the same image Frame-transfer EMCCD 100% duty cycle for continuous data collection No mechanical shutter required Single optical window Single vacuum window is the only optical surface between incident light and EMCCD surface No light loss from multiple optical surfaces C-mount Easily attaches to microscopes, standard lenses, or optical equipment Acquisition software Captures, analyzes, and saves high-resolution images PCI interface High-bandwidth, uninterrupted data transfer PVCAM
® Circular buffers Device sequencing Supported by numerous third-party software packages Real-time focus Precise integration with shutters, filter wheels, etc. Compatible with Windows
® XP/Vista 32, Mac OS X, and Linux
® (kernel versions 2.4 and 2.6.8)
