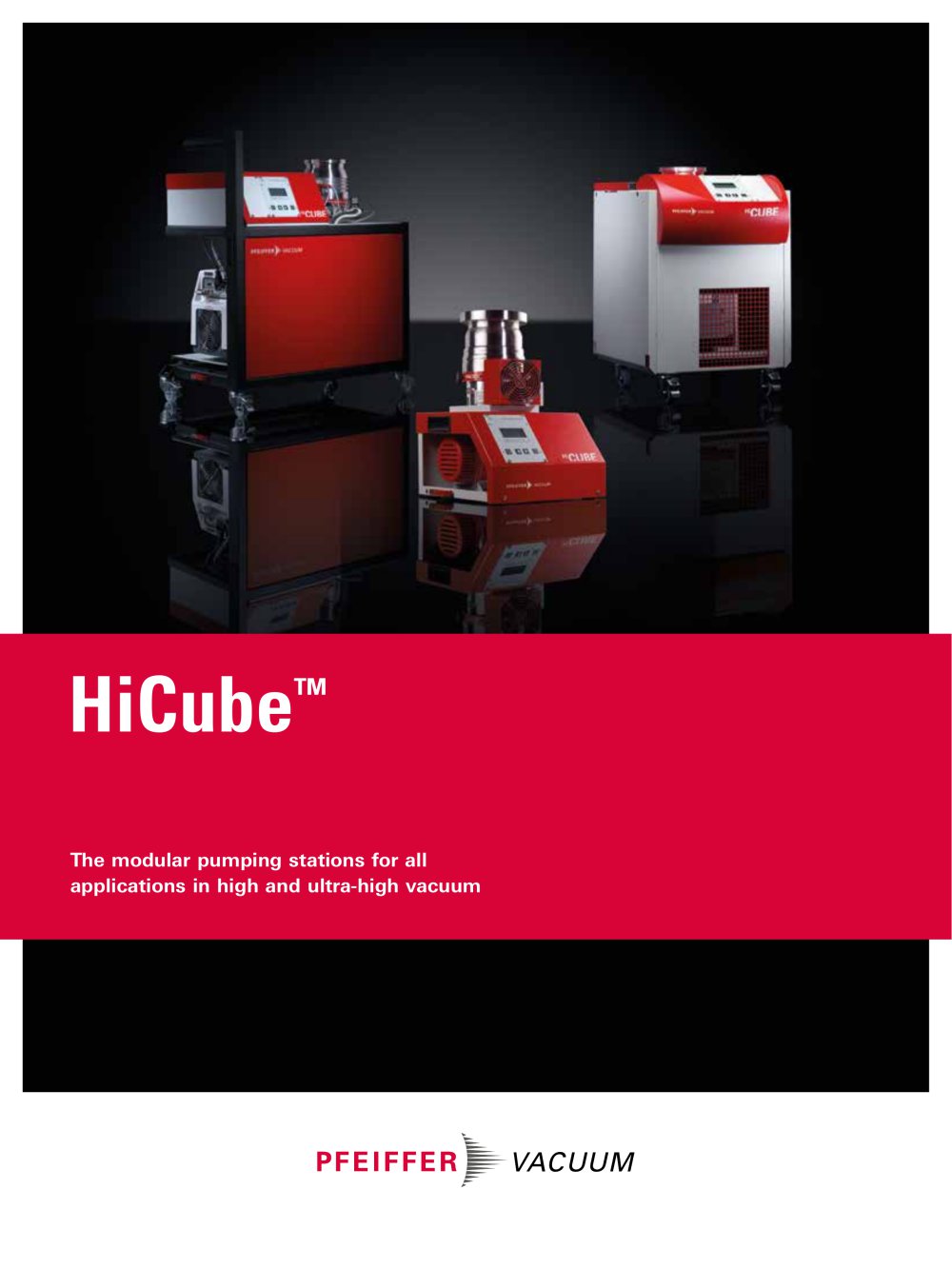

Turbo Pumping Stations - HiCube - 1

The modular pumping stations for all applications in high and ultra-high vacuum

Open the catalog to page 1
Turbo Pumping Stations - HiCube - 2

The modular pumping stations for all applications in high and ultra-high vacuum Ideal for any application HiCube turbopumping stations are defined by their modular design. Turbopumps and backing pumps can be independently selected. This makes it possible to configure pumping stations which are adapted to all high and ultra-high vacuum requirements. The robust workmanship and the ready-to-connect, fully automated pump unit guarantee maximum reliability. Intelligent efficiency The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load on the vacuum...

Open the catalog to page 2
Turbo Pumping Stations - HiCube - 3

Easy data collection The HiCube Eco can also be remotely controlled via a USB and analysis interface, if required, which is obtainable as an accessory. All operating parameters and the pressure values of the pressure sensors, which are also available as accessories, can be read out using this. For data collection and analysis, the TurboViewer software or the corresponding LabView drivers can be downloaded free of charge from our homepage. Order number of the USB/RS-485 interface = PM 061 207 -T Pfeiffer] vacuum

Open the catalog to page 3
Turbo Pumping Stations - HiCube - 4

High performance combination In combination with the HiPace 300 H or HiPace 700 H turbopumps, which features particularly high compression, the pumping unit now achieves even faster final pressures in the UHV range. Previously unattainable, the HiPace H series opens an entire new application in the UHV range

Open the catalog to page 4
Turbo Pumping Stations - HiCube - 5

Customer benefits ■ Modular turbopumping stations for all high vacuum and ultra-high vacuum applications ■ Ideal adaption to all applications in high and ultra-high vacuum due to a modular design ■ Powerful technology ■ Maximum energy savings through intermittent operation of the backing pumps ■ Connection option for pressure gauges ■ Easy data collection and analysis

Open the catalog to page 5
Turbo Pumping Stations - HiCube - 6

The complete solution for high vacuum applications: modular pumping station for clean vacuum Modular design The perfect package Optimized and quiet The HiCube Eco is a compact turbopumping station. It is ideally suited for pumping down small to medium-sized volumes. In combination with the HiPace 300 H turbopump and a diaphragm backing pump, final pressures of <10-10 hPa can be achieved. The performance of the backing pump can be maximized when needed and when the pumping performance is not required, automatically reduce the pumping speed to operate in ultra quiet mode. Technical data...

Open the catalog to page 6
Turbo Pumping Stations - HiCube - 7

■ Compact, robust, high performance ■ Pressures <10"10 hPa in combination with HiPace 300 H DN 40 ISO-KF DN 63 ISO-K DN 63 CF-F DN 100 ISO-K DN 100 CF-F DN 100 ISO-K DN 100 CF-F

Open the catalog to page 7
Turbo Pumping Stations - HiCube - 8

The complete dry solution for high vacuum applications: modular pumping station for clean vacuum Possible combinations Turbopumps HiPace 30 Backing pumps

Open the catalog to page 8
Turbo Pumping Stations - HiCube - 9

Order matrix HiCube Eco Order number PM Saa bbc de Turbopumps HiPace 30 DN 40 ISO-KF 70 Without air venting valve Venting valves With air venting valve With air venting valve and dryer TTV 001 Standard air cooling Water cooling1) ^ Water cooling and heating jacket 115 V AC1)2) Water cooling and heating jacket 230 V AC1)2) 2) not available in combination with HiPace 30 2) only in combination with CF flange Order number Digital pressure sensors Extension kit cable and fore-vacuum line 3 m USB converter to RS-485 interface TIC 010 adapter, necessary to connect max. two pressure sensors to the...

Open the catalog to page 9
Turbo Pumping Stations - HiCube - 10

Compact The HiCube Classic is a floor-standing, compact turbopumping station. It is ideal for pumping down small to medium volumes. Dry diaphragm pumps or rotary vane pumps are available as backing pumps also in a low-maintenance, magnetically coupled version. The perfect package In combination with HiPace 300 H, HiPace 700 H turbopumps and a diaphragm backing pump, final pressures of <10-10 hPa can be achieved. Flange (in) Pumping speed for nitrogen N2 l/s Rotary vane pump Duo 3 Ultimate pressure hPa Pumping speed backing pump at 50 Hz m3/h Weight of pumping station:11 kg Rotary vane pump...

Open the catalog to page 10
Turbo Pumping Stations - HiCube - 11

Quiet and flexible The volume is reduced to a minimum by the targeted control of the backing pump. Thanks to its optional wheels, the HiCube Classic is ready for use quickly in a wide variety of fields. Advantages at a glance ■ Mobile, robust, high performance ■ Pressures down to < 1 ■10-10 hPa ■ Gauge controller slot ■ Available with fore-vacuum safety valve DN 100 ISO-K DN 100 CF-F DN 100 ISO-K DN 100 CF-F DN 160 ISO-K DN 160 CF-F DN 160 ISO-K DN 160 CF-F Ultimate pressure with elastomer seal (standard. not bakeable): < 1 ■ 10-7 mbar 11 without fore-vacuum safety valve

Open the catalog to page 11
Turbo Pumping Stations - HiCube - 12

The complete solution for high vacuum applications: the modular pumping station for clean vacuum Dimensions Turbopump HiPace 80 DN 40 ISO-KF HiPace 80 DN 63 ISO-K HiPace 80 DN 63 CF-F Water cooling Exhaust 1/2“; 1/4“ Sealing gas Venting gas Feedthrough Measurement cable Mains connection Switch ON/OFF HiPace 300 DN 100 ISO-KF 580 HiPace 300 DN 100 CF-F 592 HiPace 400 DN 100 ISO-KF 624 HiPace 400 DN 100 CF-F 624 HiPace 700 DN 160 ISO-KF 597 HiPace 700 DN 160 CF-F 609 Possible combinations Turbopumps Backing pumps Diaphragm pumps, 2-stage 3-stage Rotary vane pumps – standard, 2-stage Rotary...

Open the catalog to page 12
Turbo Pumping Stations - HiCube - 13

Order matrix HiCube Classic Order number PM S aa bb c d e Turbopump HiPace 80 HiPace 80 HiPace 80 HiPace 300 HiPace 300 HiPace 300 H HiPace 300 H HiPace 400 HiPace 400 HiPace 700 HiPace 700 HiPace 700 H HiPace 700 H DN 40 ISO-KF DN 63 ISO-K DN 63 CF-F DN 100 ISO-K DN 100 CF-F DN 100 ISO-K DN 100 CF-F DN 100 ISO-K DN 100 CF-F DN 160 ISO-K DN 160 CF-F DN 160 ISO-K DN 160 CF-F Backing pump _ Standard, on rubber feet On wheels, 4 guiding wheels, 2 brakes Air dryer TTV 001, with connection to the venting valve On wheels + air dryer TTV 001 Standard (without cable set for external use) Cable set...

Open the catalog to page 13
Turbo Pumping Stations - HiCube - 14

Technical data Ultimate pressure with Multi-stage Roots pump ACP hPa < 1 ■ 10-7 < 1 ■ 10-7 < 5 ■ 10-10 < 1 ■ 10-7 < 5 ■ 10-10 with rotary vane pump DuoLine hPa < 1 ■ 10-7 < 1 ■ 10-7 < 5 ■ 10-10 < 1 ■ 10-7 < 5 ■ 10-10 with rotary vane pump Pascal hPa < 1 ■ 10-7 < 1 ■ 10-7 < 5 ■ 10-10 < 1 ■ 10-7 < 5 ■ 10-10 Rotary vane pump Duo 11 M Pumping speed backing pump at 50 Hz m3/h 9 9 9 9 9 Rotary vane pump Duo 20 M Pumping speed backing pump at 50 Hz m3/h 20 20 20 20 20 Rotary vane pump Pascal 2010 Pumping speed backing pump at 50 Hz m3/h 9 9 9 9 9 Rotary vane pump Pascal 2021 Pumping speed backing...

Open the catalog to page 14
