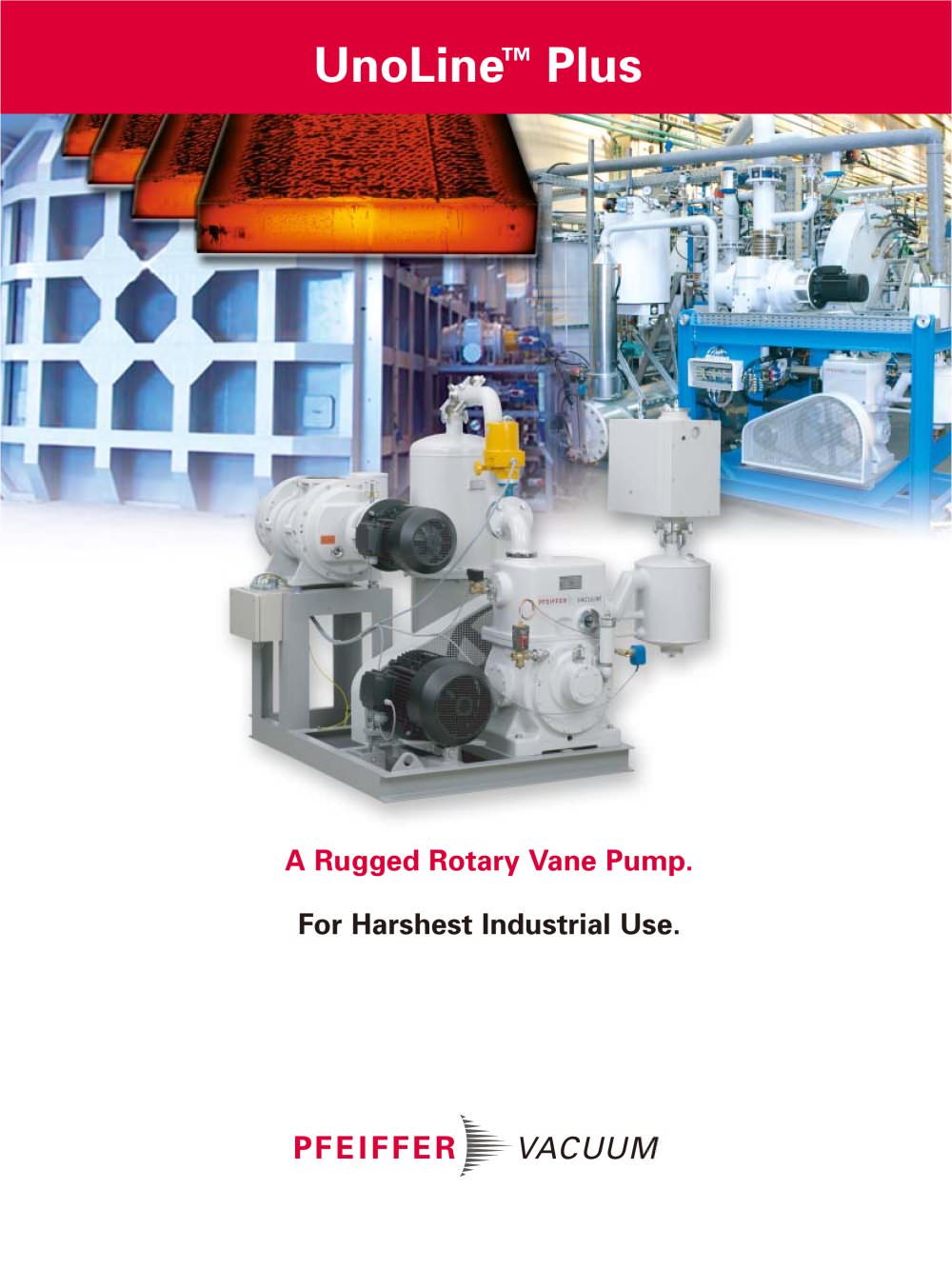

UnoLine™ Plus A Rugged Rotary Vane Pump. For Harshest Industrial Use.

Open the catalog to page 1

UnoLine™ Plus 2 Proven in any number of fields Metallurgy Vacuum furnaces Transformer drying The workhorse for industrial vacuum applications The UnoLine™ Plus is an optimum solution for industrial applications. This rotary vane pump has a proven track record for highest reliability as both a stand-alone pump and as a backing pump for Pfeiffer Vacuum Roots pumps. This is a water-cooled pump that is extremely resistant to dust and dirt. It is equipped with an oil regeneration system. This enables condensate, dirt and dust particles to be removed from the operating fluid, collected in the...

Open the catalog to page 2

BA 251 BA 501 A DN 63 ISO-F DN 100 ISO-F B DN 63 ISO-K DN 100 ISO-K C 890 1130 D 840 1070 E 277 310 F 522 715 G 1030 1260 BA 251 BA 501 H 1528 1905 I 745 890 J 730 980 K 220 280 L 480 645 M 520 685 N 130 200 G H I D C E F K M N J L A DN 10 KF B 3 Technical data/Order numbers/Accessories Dimensions in mm UnoLine™ Plus BA 251 BA 501 50 Hz 60 Hz 50 Hz 60 Hz Flange (in) DN 63 ISO-F DN 100 ISO-F Flange (out) DN 63 ISO-K DN 100 ISO-K Mains voltage 1) 230/400 V 265/460 V 230/400 V 440/480 V Eff. pumping speed 250 m3/h 500 m3/h Ultimate pressure: Total without gas ballast < 6 · 10-2 mbar < 6 · 10-2...

Open the catalog to page 3

Pfeiffer Vacuum Pfeiffer Vacuum · Headquarters/Germany Phone +49 (0) 6441 802-0 · Fax +49 (0) 6441 802-202 · info@pfeiffer-vacuum.de · www.pfeiffer-vacuum.net Vacuum is nothing, but everything to us! All data subject to change without prior notice. PD 0037 PE (October 2006) Sales, consulting and service Worldwide on-site service Comprehensive in-factory and on-site training programs Modular service system ranging from spare parts to maintenance contracts Pfeiffer Vacuum has been setting technological milestones for creating, measuring and analyzing vacuum for over 100 years. Our...

Open the catalog to page 4
