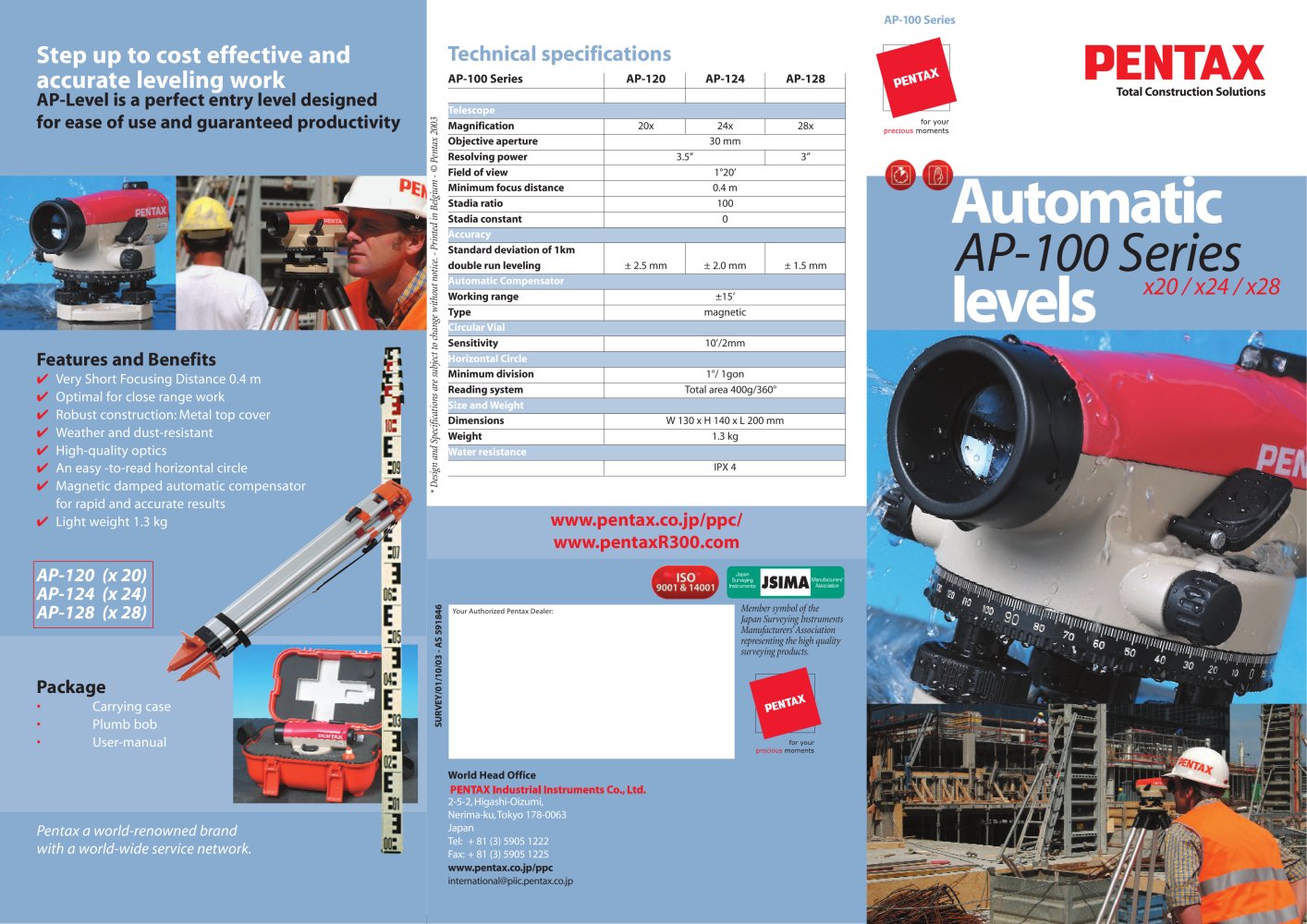

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:15.00pt "Arial", sans-serif; } .font9 { font:41.00pt "Arial", sans-serif; } .font10 { font:5.00pt "Georgia", serif; } .font11 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font12 { font:24.00pt "Lucida Sans Unicode", sans-serif; } AP-100 Séries Technu for your precious moments PENTAX Total Construction Solutions Step up to cost effective a AP-Level is a perfect entry level designed for ease of use and guaranteed productivity AP-100 Séries AP-120 AP-124 AP-128 Magnifi cation 20x 24x 28x Objective aperture 30 mm Resolving power 3.5" 3" Field of view 1°20' Minimum focus distance 0.4 m Stadia ratio 100 Stadia constant 0 Standard déviation of 1 km double run leveling ± 2.5 mm ± 2.0 mm ± 1.5 mm Working range ±15' Type magnetic Sensitivity 1072mm Minimum division 17 Igon Reading System Total area 400g/360° Dimensions W130xH 140 xL 200 mm Weight 1.3 kg IPX 4 Pentax a world-renowned brand with a world-wide service network. •Jll AP-100 Séries x20/x24/x28 www.pentax.co.jp/ppc/ www.pentaxR300.com InBlnimentB F^^^^^^J Association Member symbol ofthe Japan Surveying Instruments Manufacturera Association representing the high quality surveyingproducts. 0 World Head Office PENTAX Industrial Instruments Co.,1 precious moments www.pentax.co.jp/ppc
