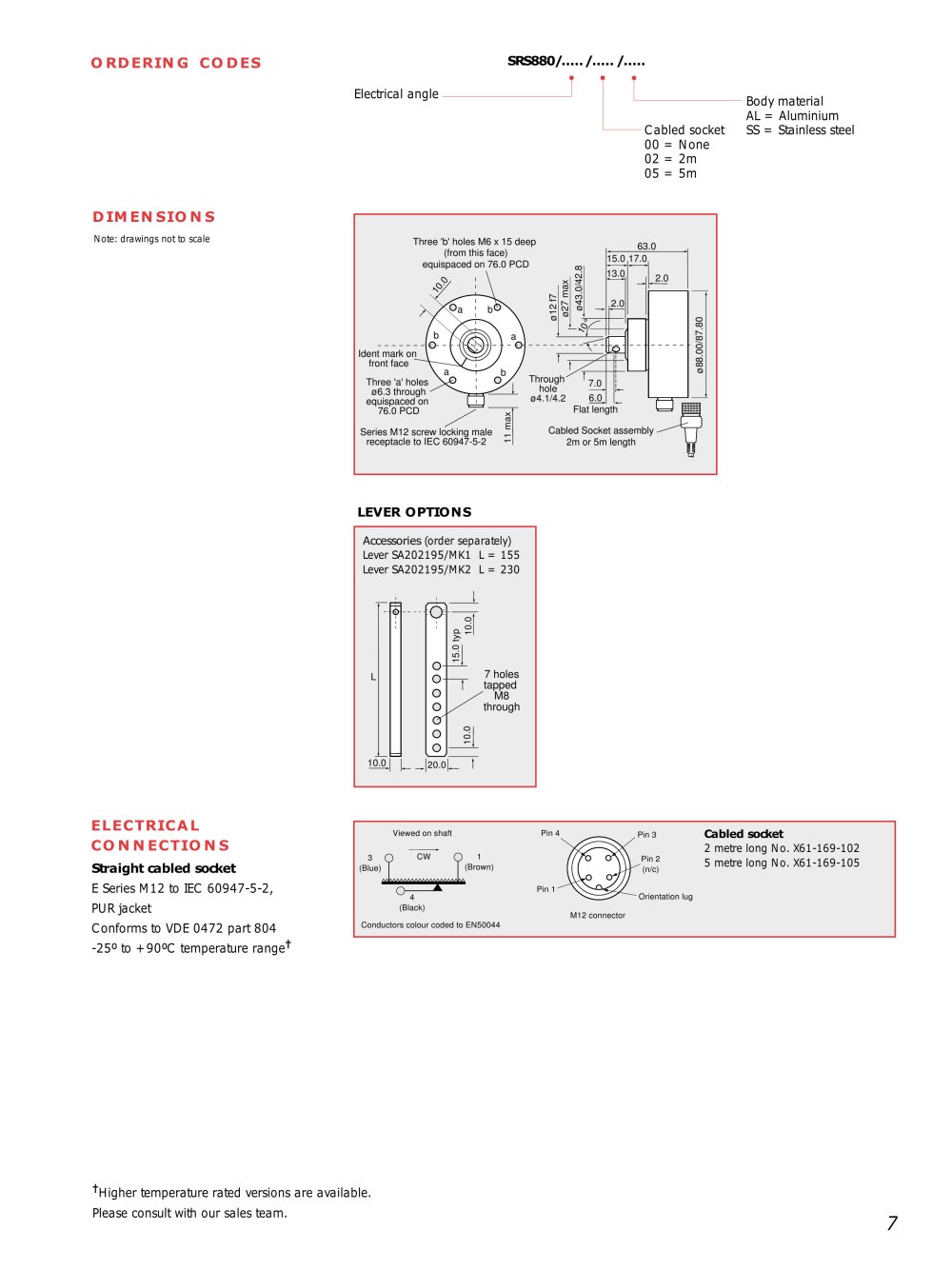

DIMENSIONS ORDERING CODES

Note: drawings not to scale Three 'b' holes M6 x 15 deep (from this face)equispaced on 76.0 PCD Three 'a' holes ø6.3 throughequispaced on 76.0 PCD 17.015.063.02.0 13.0 2.0
10.0 aaabbb
ø43.0/42.8 ø27 max ø12 f7 10° Ident mark on front face
ø88.00/87.80 Through holeø4.1/4.2 7.06.0Flat length Series M12 screw locking malereceptacle to IEC 60947-5-2 Cabled Socket assembly2m or 5m length
11 max

LEVER OPTIONS

Accessories (order separately)Lever SA202195/MK1 L = 155 Lever SA202195/MK2 L = 230

10.0 15.0 typ L

7 holestapped M8through

10.0 10.0
20.0

ELECTRICAL CONNECTIONS

Cabled socket

CW3(Blue)1(Brown)4(Black)Viewed on shaft

2 metre long No. X61-169-102 (Hirschmann No. 934 401-203 2m) 5 metre long No. X61-169-105(Hirschmann No. 934 401-202 5m)

Pin 2(n/c)Conductors colour coded to EN50044

Straight cabled socket E Series M12 to IEC 60947-5-2, PUR jacket Conforms to VDE 0472 part 804 -25º to +90ºC temperature range

Pin 1Pin 3Pin 4Orientation lug M12 manufacturer of connector

Higher temperaturerated versions are available.Please consult with our sales team or contact Hirschmann.

7
