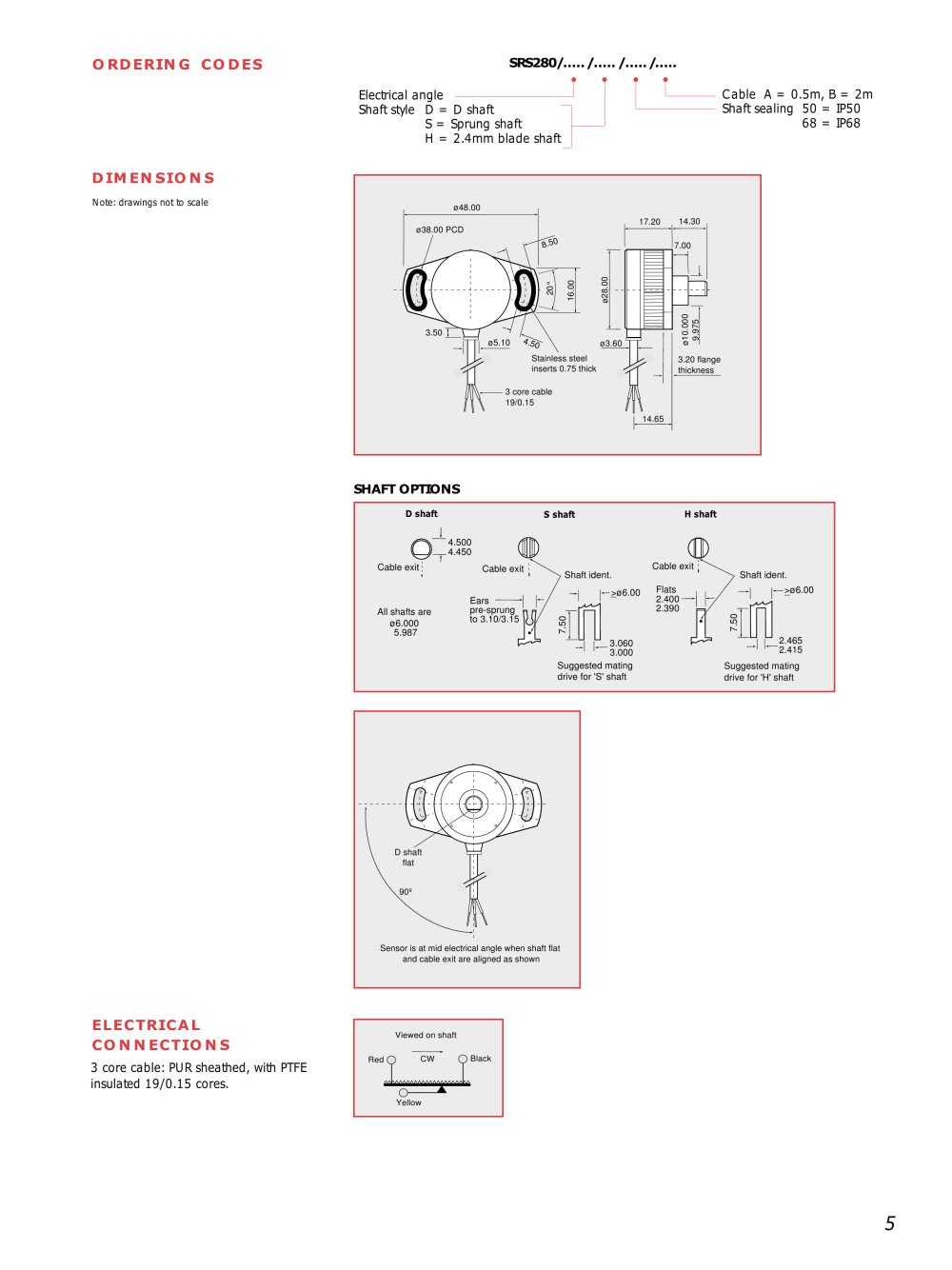

| | | SRS280/...../...../...../..... | | |
| | | ORDERING CODES | | |
| | | |
| | | |
| | | Cable A = 0.5m, B = 2m Shaft sealing 50 = IP50 68 = IP68 | | |
| | | Electrical angle Shaft style D = D shaft S = Sprung shaft | | |
| | | |
| | | |
| | | DIMENSIONS Note: drawings not to scale | | |
| | | |
| | | SHAFT OPTIONS | | |
| | | |
| | | ELECTRICAL CONNECTIONS 3 core cable: PUR sheathed, with PTFE insulated 19/0.15 cores. | | |
| | | |
| | | 5 | | |
| | | |
| | | | | | | | | | | | | | | | | | |
