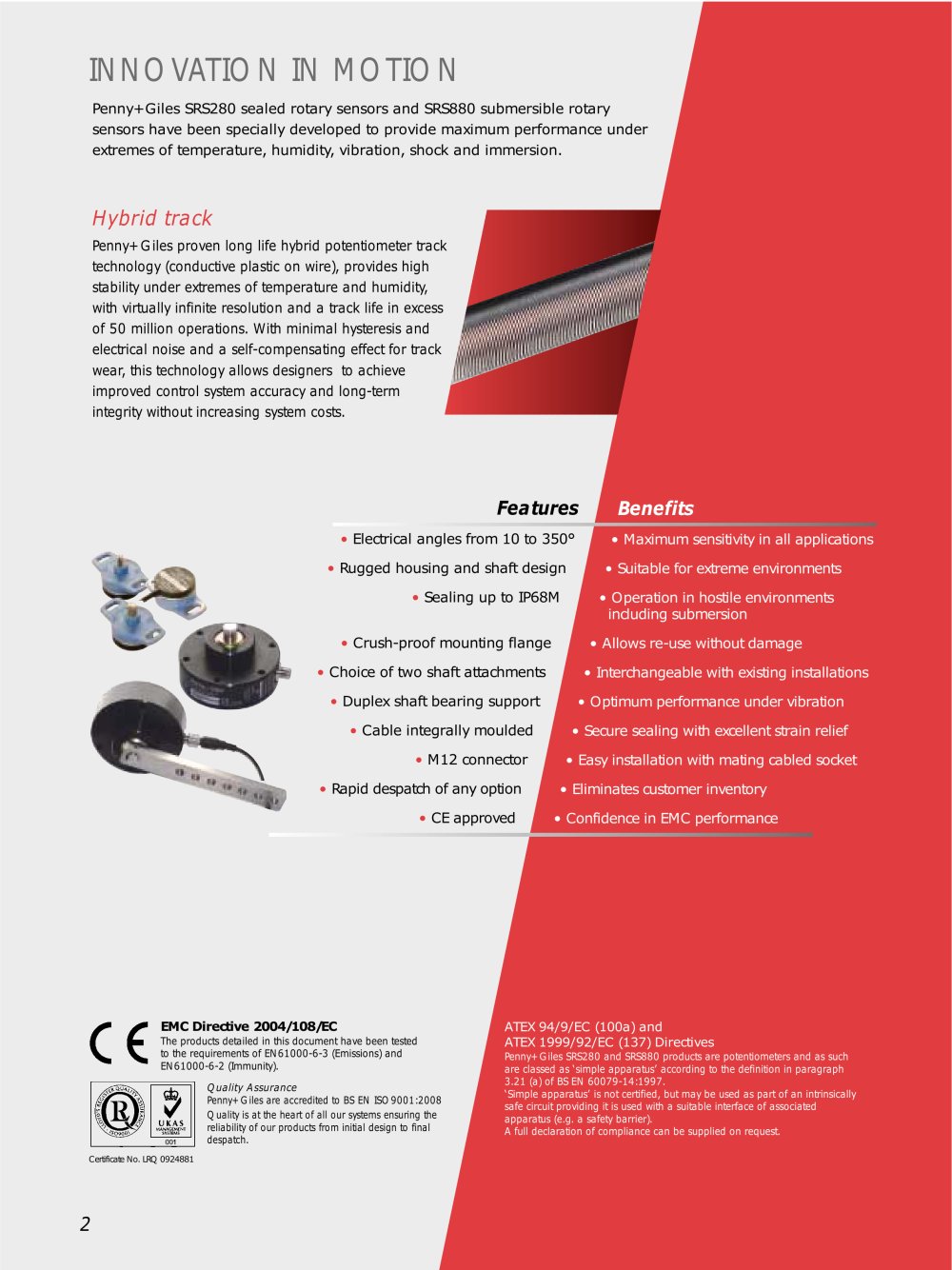

INNOVATION IN MOTION

Penny+Giles SRS280 sealed rotary sensors and SRS880 submersible rotarysensors have been specially developed to provide maximum performance under extremes of temperature, humidity, vibration, shock and immersion.

Hybrid track

Penny+Giles proven long life hybrid potentiometer tracktechnology (conductive plastic on wire), provides highstability under extremes of temperature and humidity,with virtually infinite resolution and a track life in excessof 50 million operations. With minimal hysteresis andelectrical noise and a self-compensating effect for track wear, this technology allows designers to achieveimproved control system accuracy and long-termintegrity without increasing system costs.

Features Benefits

•Electrical angles from 10 to 350°•Rugged housing and shaft design•Sealing up to IP68M•Crush-proof mounting flange•Choice of two shaft attachments•Duplex shaft bearing support• Cable integrally moulded • M12 connector•Rapid despatch of any option•CE approved • Maximum sensitivity in all applications• Suitable for extreme environments• Operation in hostile environments including submersion• Allows re-use without damage• Interchangeable with existing installations• Optimum performance under vibration• Secure sealing with excellent strain relief• Easy installation with mating cabled socket• Eliminates customer inventory• Confidence in EMC performance
EMC Directive 89/336/EEC ATEX94/9/EC (100a) and ATEX1999/92/EC (137) Directives The products detailed in this document have been tested to the requirements of EN61000-6-3 (Emissions) and EN61000-6-2 (Immunity). Penny+Giles SRS280 and SRS880 products are potentiometers and as such are classed as ‘simple apparatus’ according to the definition in paragraph3.21 (a) of BSEN60079-14:1997.‘Simple apparatus’ is not certified, but may be used as part of an intrinsicallysafe circuit providing it is used with a suitable interface of associated apparatus (e.g. a safety barrier).A full declaration of compliance can be supplied on request. Quality Assurance Penny+Giles are accredited to BS EN ISO9001:2000Quality is at the heart of all our systems ensuring thereliability of our products from initial design to finaldespatch. Certificate No. LRQ0924881

2
