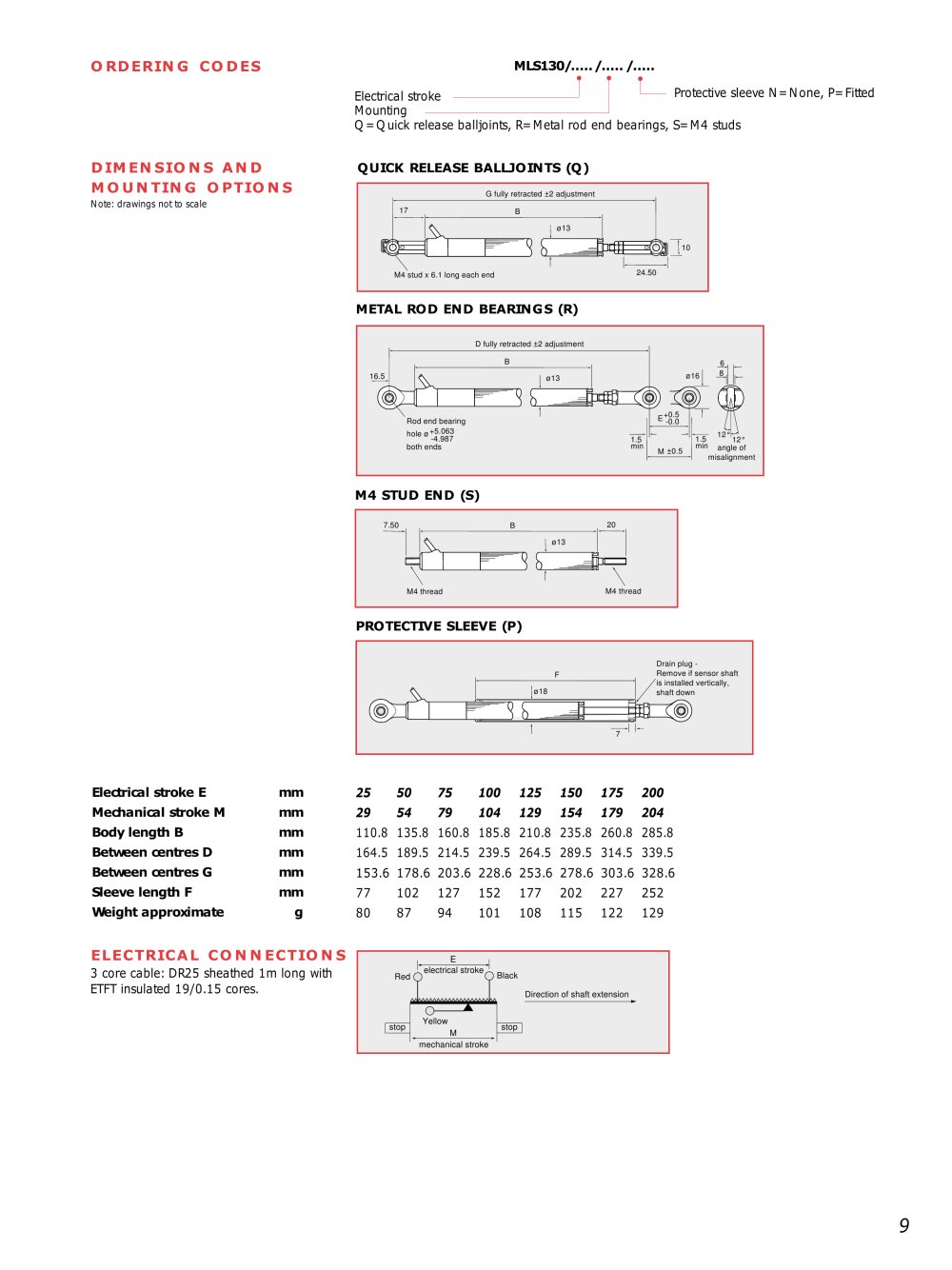

ORDERING CODES

MLS130/...../...../.....

Protective sleeve N = None, P=Fitted

Electrical stroke Mounting

Q = Quick release balljoints, R=Metal rod end bearings, S=M4 studs QUICK RELEASE BALLJOINTS (Q)

DIMENSIONS AND MOUNTING OPTIONS

Note: drawings not to scale

METAL ROD END BEARINGS (R)

M4 STUD END (S)

PROTECTIVE SLEEVE (P)

Electrical stroke E mm

Mechanical stroke M mm

Body length B mm

Between centres D mm

Between centres G mm

Sleeve length F mm

Weight approximate g

25 50 75 100 125 150 175 200

29 54 79 104 129 154 179 204

110.8 135.8 160.8 185.8 210.8 235.8 260.8 285.8

164.5 189.5 214.5 239.5 264.5 289.5 314.5 339.5

153.6 178.6 203.6 228.6 253.6 278.6 303.6 328.6 77 102 127 152 177 202 227 252

80 87 94 101 108 115 122 129

ELECTRICAL CONNECTIONS

3 core cable: DR25 sheathed 1m long with ETFT insulated 19/0.15 cores.


Red	u_^E_4 'electrical stroke	Black Direction of shaft extension
	o-^A
[""stop	Yellow M	stop
	mechanical stroke
