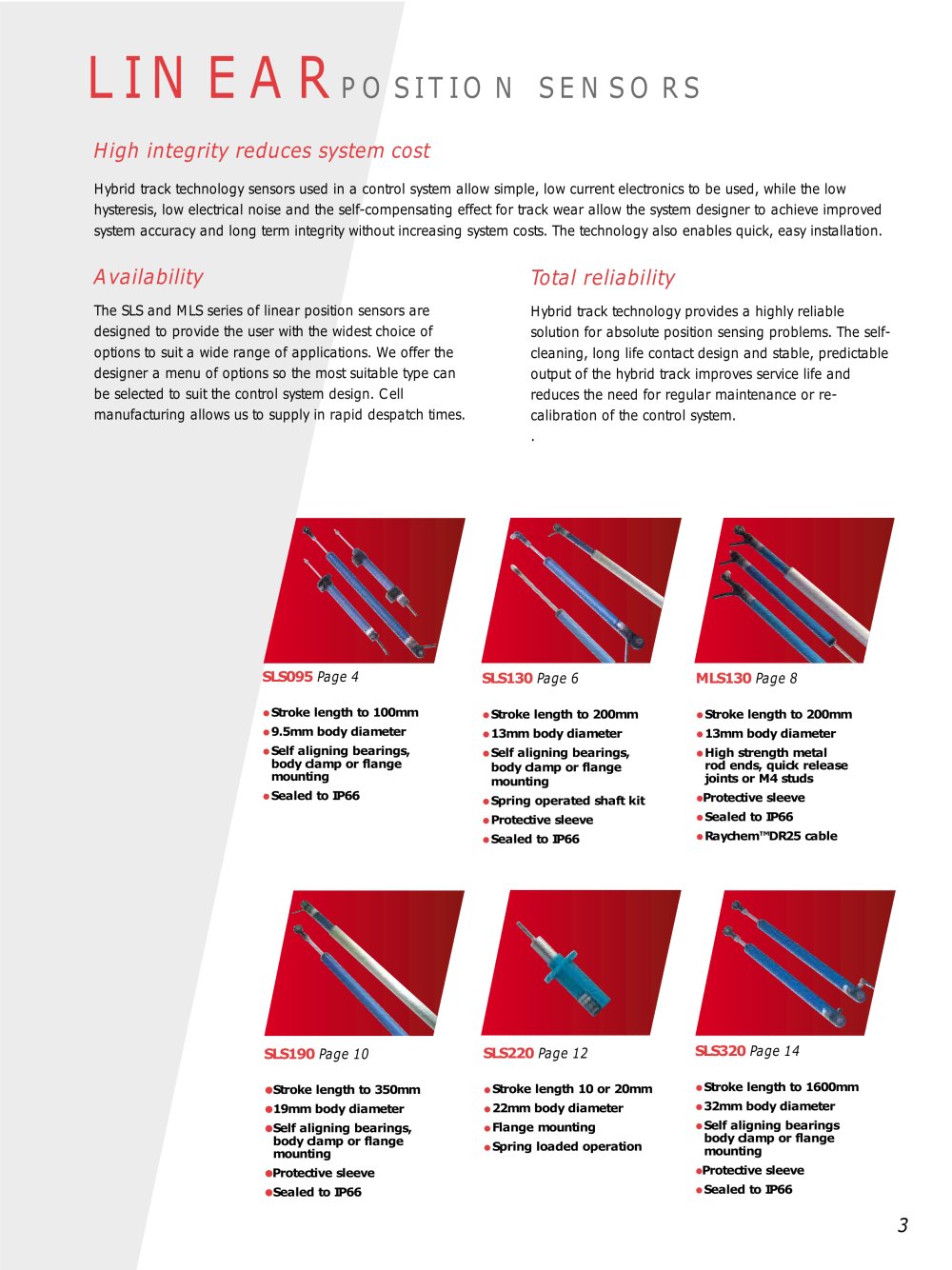

LINEAR
High integrity reduces system cost
Hybrid track technology sensors used in a control system allow simple, low current electronics to be used, while the lowhysteresis, low electrical noise and the self-compensating effect for track wear allow the system designer to achieve improvedsystem accuracy and long term integrity without increasing system costs. The technology also enables quick, easy installation.
Availability Total reliability
The SLS and MLS series of linear position sensors aredesigned to provide the user with the widest choice of
options to suit a wide range of applications. We offer thedesigner a menu of options so the most suitable type canbe selected to suit the control system design. Cellmanufacturing allows us to supply in rapid despatch times. Hybrid track technology provides a highly reliablesolution for absolute position sensing problems. The self-cleaning, long life contact design and stable, predictableoutput of the hybrid track improves service life andreduces the need for regular maintenance or re-
calibration of the control system.
. SLS095 Page 4 SLS130 Page 6 MLS130 Page 8
•Stroke length to 100mm•9.5mm body diameter •Self aligning bearings, body clamp or flange mounting•Sealed to IP66 •Stroke length to 200mm•13mm body diameter•Self aligning bearings,body clamp or flange mounting•Spring operated shaft kit•Protective sleeve•Sealed to IP66 •Stroke length to 200mm •13mm body diameter•High strength metalrod ends, quick releasejoints or M4 studs•Protective sleeve•Sealed to IP66 •Raychem™DR25 cable SLS190 Page 10 SLS220 Page 12 SLS320 Page 14 •
Stroke length to 350mm •Stroke length 10 or 20mm •22mm body diameter•Flange mounting •Spring loaded operation •Stroke length to 1600mm•32mm body diameter •Self aligning bearings body clamp or flange mounting•Protective sleeve•Sealed to IP66 •
19mm body diameter •
Self aligning bearings, body clamp or flange mounting •
Protective sleeve •
Sealed to IP66 3
