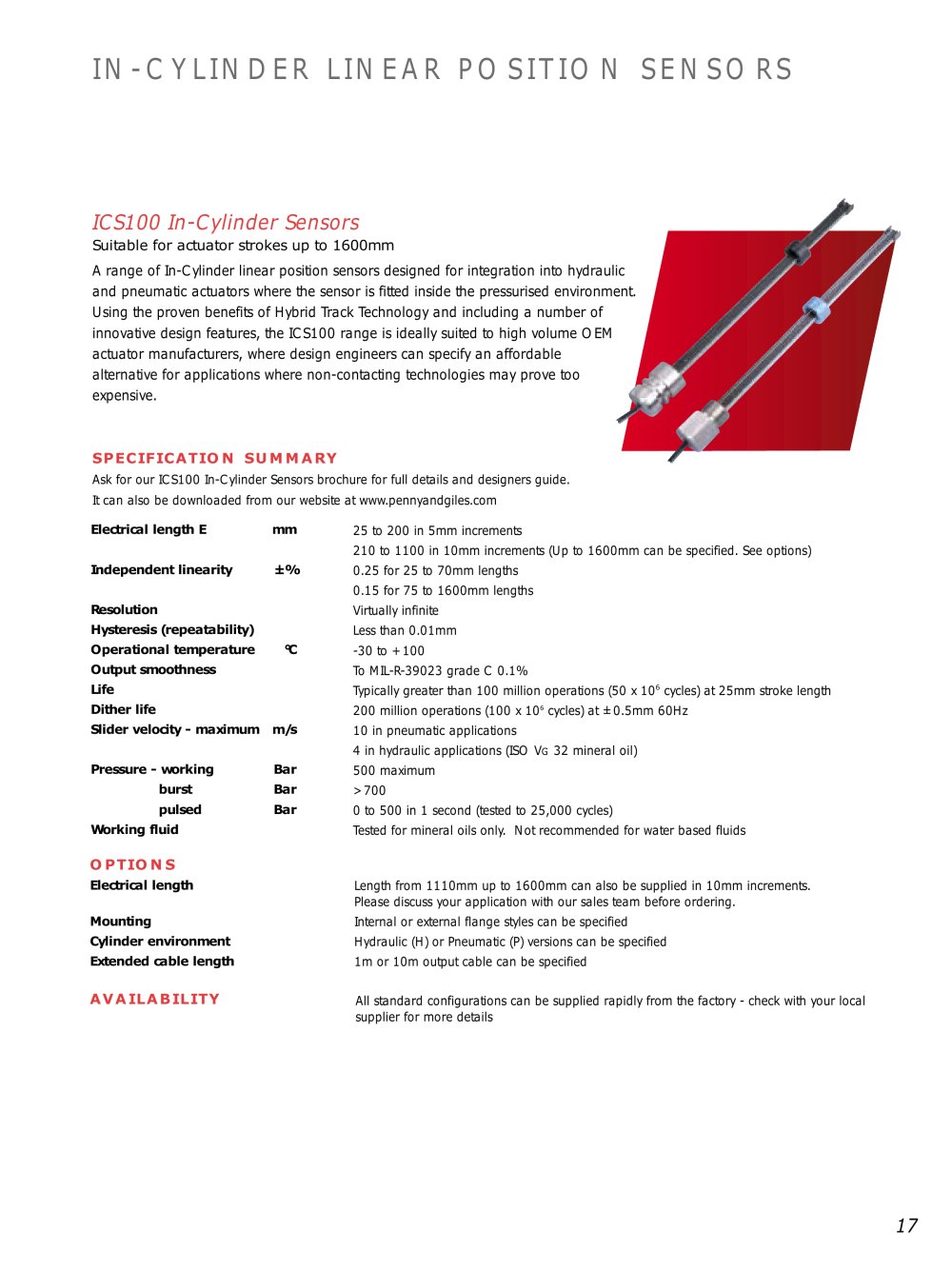

N-CYLINDER LINEAR POSITION SENSORS

ICS!00 In-Cylinder Sensors

Suitable for actuator strokes up to 1600mm

A range of In-Cylinder linear position sensors designed for integration into hydraulic and industrial pneumatic actuators where the sensor is fitted inside the pressurised environment. Using the proven benefits of Hybrid Track Technology and including a number of innovative design features, the ICS100 range is ideally suited to high volume OEM actuator manufacturers, where design engineers can specify an affordable alternative for applications where non-contacting technologies may prove too expensive.

SPECIFICATION SUMMARY

Ask for our ICS100 In-Cylinder Sensors brochure for full details and designers guide. It can also be downloaded from our website at www.pennyandgiles.com

Electrical length E Independent linearity

25 to 200 in 5mm increments

210 to 1100 in 10mm increments (Up to 1600mm can be specified. See options) 0.25 for 25 to 70mm lengths

0.15 for 75 to 1600mm lengths

Virtually infinite Less than 0.01mm -30 to +100

To MIL-R-39023 grade C 0.1%

Typically greater than 100 million operations (50 x 10⁶ cycles) at 25mm stroke length

200 million operations (100 x 10⁶ cycles) at ±0.5mm 60Hz

10 in pneumatic applications

4 in hydraulic applications (ISO Vg 32 mineral oil)

500 maximum

>700

0 to 500 in 1 second (tested to 25,000 cycles)

Tested for mineral oils only. Not recommended for water based fluids

Resolution

Hysteresis (repeatability) Operational temperature °C Output smoothness Life

Dither life

Slider velocity - maximum m/s

Pressure - working burst pulsed

Working fluid

OPTIONS

Electrical length Mounting

Cylinder environment Extended cable length

Bar Bar Bar

Length from 1110mm up to 1600mm can also be supplied in 10mm increments. Please discuss your application with our sales team before ordering.

Internal or external flange styles can be specified

Hydraulic (H) or Pneumatic (P) versions can be specified

1m or 10m output cable can be specified

AW A I I ADII ITV

All options can be supplied within five days from the factory

Features, Benefits and Operating Principles overleaf
