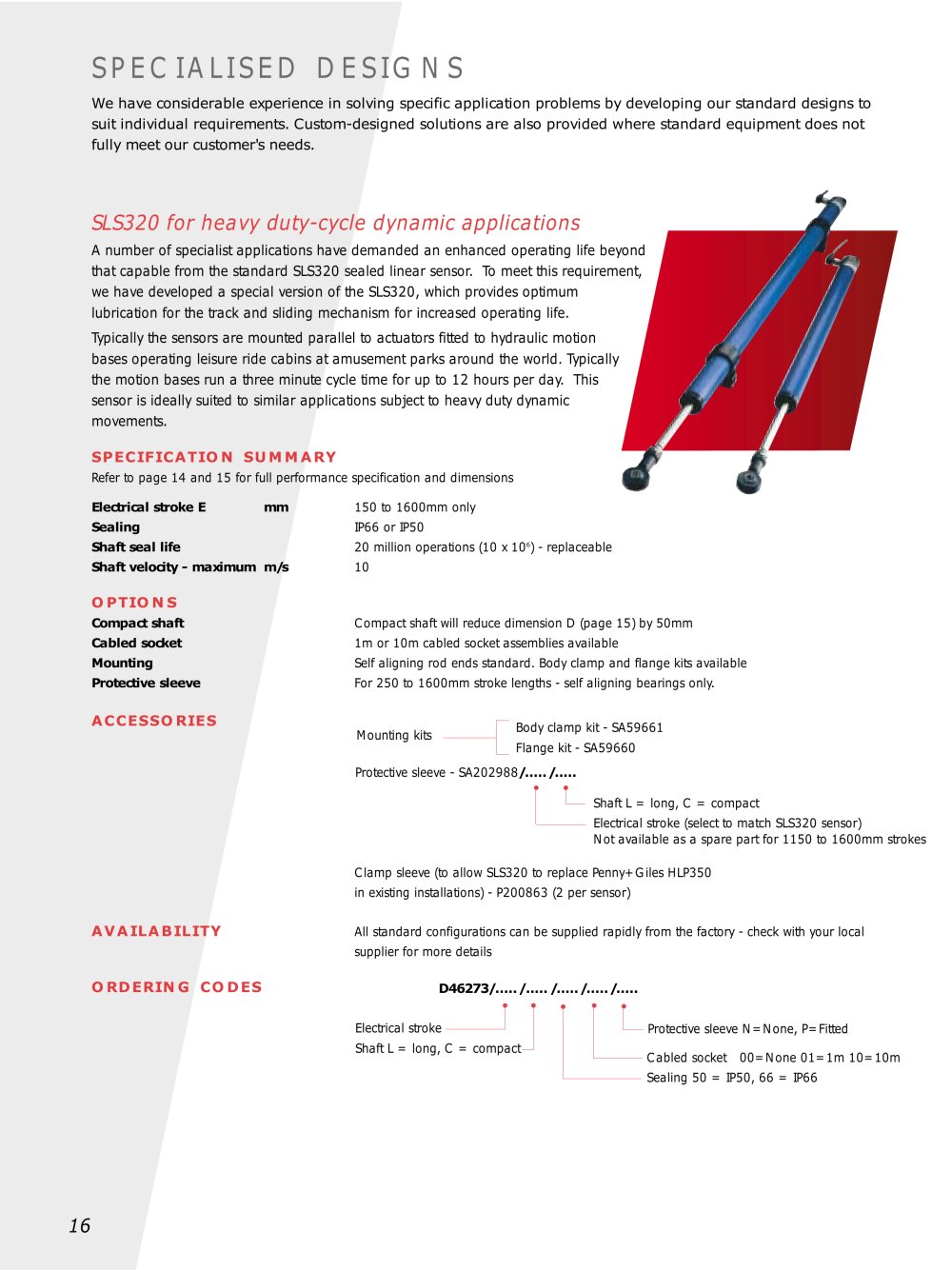

| | | SPECIALISED DESIGNS | | |
| | | |
| | | We have considerable experience in solving specific application problems by developing our standard designs to suit individual requirements. Custom-designed solutions are also provided where standard equipment does not fully meet our customer's needs. | | |
| | | |
| | | SLS320 for heavy duty-cycle dynamic applications A number of specialist applications have demanded an enhanced operating life beyond that capable from the standard SLS320 sealed linear sensor. To meet this requirement, we have developed an oil-filled version of the SLS320, which provides optimum lubrication for the track and sliding mechanism for increased operating life. Typically the sensors are mounted parallel to actuators fitted to hydraulic motion I bases operating leisure ride cabins at amusement parks around the world. Typically 1 the motion bases run a three minute cycle time for up to 12 hours per day. This m sensor is ideally suited to similar applications subject to heavy duty dynamic movements. SPECIFICATION SUMMARY Refer to page 14 and 15 for full performance specification and dimensions | | |
| | | |
| | | Electrical stroke E mm Sealing Shaft seal life Shaft velocity - maximum m/s | | 250 to 1100mm only IP66 20 million operations (10 x 106) - replaceable 10 | | |
| | | |
| | | |
| | | OPTIONS Compact shaft Cabled socket Mounting Protective sleeve | | |
| | | Compact shaft will reduce dimension D (page 15) by 50mm 1m or 10m cabled socket assemblies available Self aligning rod ends standard. Body clamp and flange kits available For 250 to 1100mm stroke lengths - self aligning bearings only. | | |
| | | |
| | | |
| | | ACCESSORIES | | |
| | | Body clamp kit - SA59661 Flange kit - SA59660 | | |
| | | |
| | | Mounting kits | | |
| | | |
| | | |
| | | Protective sleeve - SA202988/...../..... | | |
| | | |
| | | Shaft L = long, C = compact Electrical stroke (select to match SLS320 sensor) | | |
| | | |
| | | Clamp sleeve (to allow SLS320 to replace Penny+Giles HLP350 in existing installations) - P200863 (2 per sensor) | | |
| | | |
| | | AVAILABILITY ORDERING CODES | | |
| | | Can be supplied within five days from the factory | | |
| | | |
| | | |
| | | D45566/...../...../...../...../..... | | |
| | | |
| | | Electrical stroke Shaft L = long, C = compact— | | |
| | | Protective sleeve N = None, P=Fitted Cabled socket 00 = None 01=1m 10=10m Sealing 50 = IP50, 66 = IP66 | | |
| | | |
| | | |
| | | 16 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
