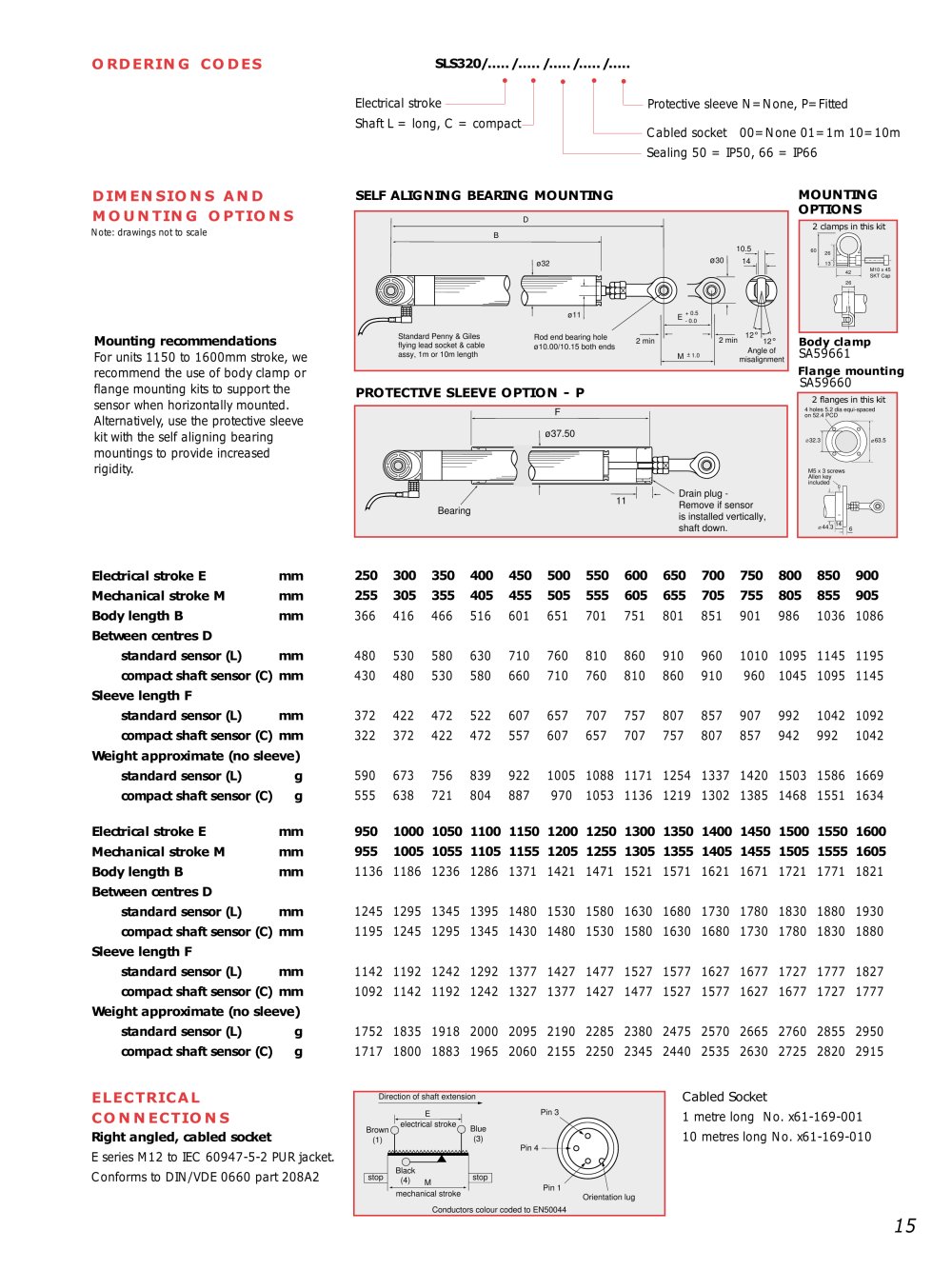

| | | ORDERING CODES | | |
| | | SLS320/...../...../...../...../..... | | |
| | | |
| | | |
| | | Electrical stroke Shaft L = long, C = compact- | | |
| | | Protective sleeve N = None, P=Fitted Cabled socket 00 = None 01=1m 10 = 10m Sealing 50 = IP50, 66 = IP66 | | |
| | | |
| | | |
| | | MOUNTING OPTIONS | | |
| | | DIMENSIONS AND MOUNTING OPTIONS Note: drawings not to scale | | SELF ALIGNING BEARING MOUNTING | | |
| | | |
| | | |
| | | |
| | | Standard Penny & Giles flying lead socket & cable assy, 1m or 10m length | | |
| | | Rod end bearing hole 010.00/10.15 both ends | | |
| | | Mounting recommendations For units 1150 to 1600mm stroke, we recommend the use of body clamp or flange mounting kits to support the sensor when horizontally mounted. Alternatively, use the protective sleeve kit with the self aligning bearing mountings to provide increased rigidity. | | |
| | | Body clamp SA59661 Flange mounting SA59660 | | |
| | | 2 min | | |
| | | |
| | | Angle of misalignment | | |
| | | |
| | | M ± lu | | |
| | | |
| | | |
| | | |
| | | PROTECTIVE SLEEVE OPTION | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | Electrical stroke E | mm | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | | | | Mechanical stroke M | mm | 255 | 305 | 355 | 405 | 455 | 505 | 555 | 605 | 655 | 705 | 755 | 805 | 855 | 905 | | | | Body length B | mm | 366 | 416 | 466 | 516 | 601 | 651 | 701 | 751 | 801 | 851 | 901 | 986 | 1036 | 1086 | | | | Between centres D | | | | | | | | | | | | | | | | | | | standard sensor (L) | mm | 480 | 530 | 580 | 630 | 710 | 760 | 810 | 860 | 910 | 960 | 1010 | 1095 | 1145 | 1195 | | | | compact shaft sensor (C) | mm | 430 | 480 | 530 | 580 | 660 | 710 | 760 | 810 | 860 | 910 | 960 | 1045 | 1095 | 1145 | | | | Sleeve length F | | | | | | | | | | | | | | | | | | | standard sensor (L) | mm | 372 | 422 | 472 | 522 | 607 | 657 | 707 | 757 | 807 | 857 | 907 | 992 | 1042 | 1092 | | | | compact shaft sensor (C) | mm | 322 | 372 | 422 | 472 | 557 | 607 | 657 | 707 | 757 | 807 | 857 | 942 | 992 | 1042 | | | | Weight approximate (no sleeve) | | | | | | | | | | | | | | | | | | standard sensor (L) | g | 590 | 673 | 756 | 839 | 922 | 1005 | 1088 | 1171 | 1254 | 1337 | 1420 | 1503 | 1586 | 1669 | | | | compact shaft sensor (C) | g | 555 | 638 | 721 | 804 | 887 | 970 | 1053 | 1136 | 1219 | 1302 | 1385 | 1468 | 1551 | 1634 | | | | Electrical stroke E | mm | 950 | 1000 | 1050 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1600 | | | | Mechanical stroke M | mm | 955 | 1005 | 1055 | 1105 | 1155 | 1205 | 1255 | 1305 | 1355 | 1405 | 1455 | 1505 | 1555 | 1605 | | | | Body length B | mm | 1136 | 1186 | 1236 | 1286 | 1371 | 1421 | 1471 | 1521 | 1571 | 1621 | 1671 | 1721 | 1771 | 1821 | | | | Between centres D | | | | | | | | | | | | | | | | | | | standard sensor (L) | mm | 1245 | 1295 | 1345 | 1395 | 1480 | 1530 | 1580 | 1630 | 1680 | 1730 | 1780 | 1830 | 1880 | 1930 | | | | compact shaft sensor (C) | mm | 1195 | 1245 | 1295 | 1345 | 1430 | 1480 | 1530 | 1580 | 1630 | 1680 | 1730 | 1780 | 1830 | 1880 | | | | Sleeve length F | | | | | | | | | | | | | | | | | | | standard sensor (L) | mm | 1142 | 1192 | 1242 | 1292 | 1377 | 1427 | 1477 | 1527 | 1577 | 1627 | 1677 | 1727 | 1777 | 1827 | | | | compact shaft sensor (C) | mm | 1092 | 1142 | 1192 | 1242 | 1327 | 1377 | 1427 | 1477 | 1527 | 1577 | 1627 | 1677 | 1727 | 1777 | | | | Weight approximate (no sleeve) | | | | | | | | | | | | | | | | | | standard sensor (L) | g | 1752 | 1835 | 1918 | 2000 | 2095 | 2190 | 2285 | 2380 | 2475 | 2570 | 2665 | 2760 | 2855 | 2950 | | | | compact shaft sensor (C) | g | 1717 | 1800 | 1883 | 1965 | 2060 | 2155 | 2250 | 2345 | 2440 | 2535 | 2630 | 2725 | 2820 | 2915 | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Cabled Socket 1 metre long No. x61-169-001 (Hirschmann No. 933 316-021/1m) 10 metres long No. x61-169-010 (Hirschmann No. 933 316-021/10m) | | |
| | | Right angled, cabled socket E series M12 to IEC 60947-5-2 PUR jacket. Conforms to DIN/VDE 0660 part 208A2 | | |
| | | |
| | | 15 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
