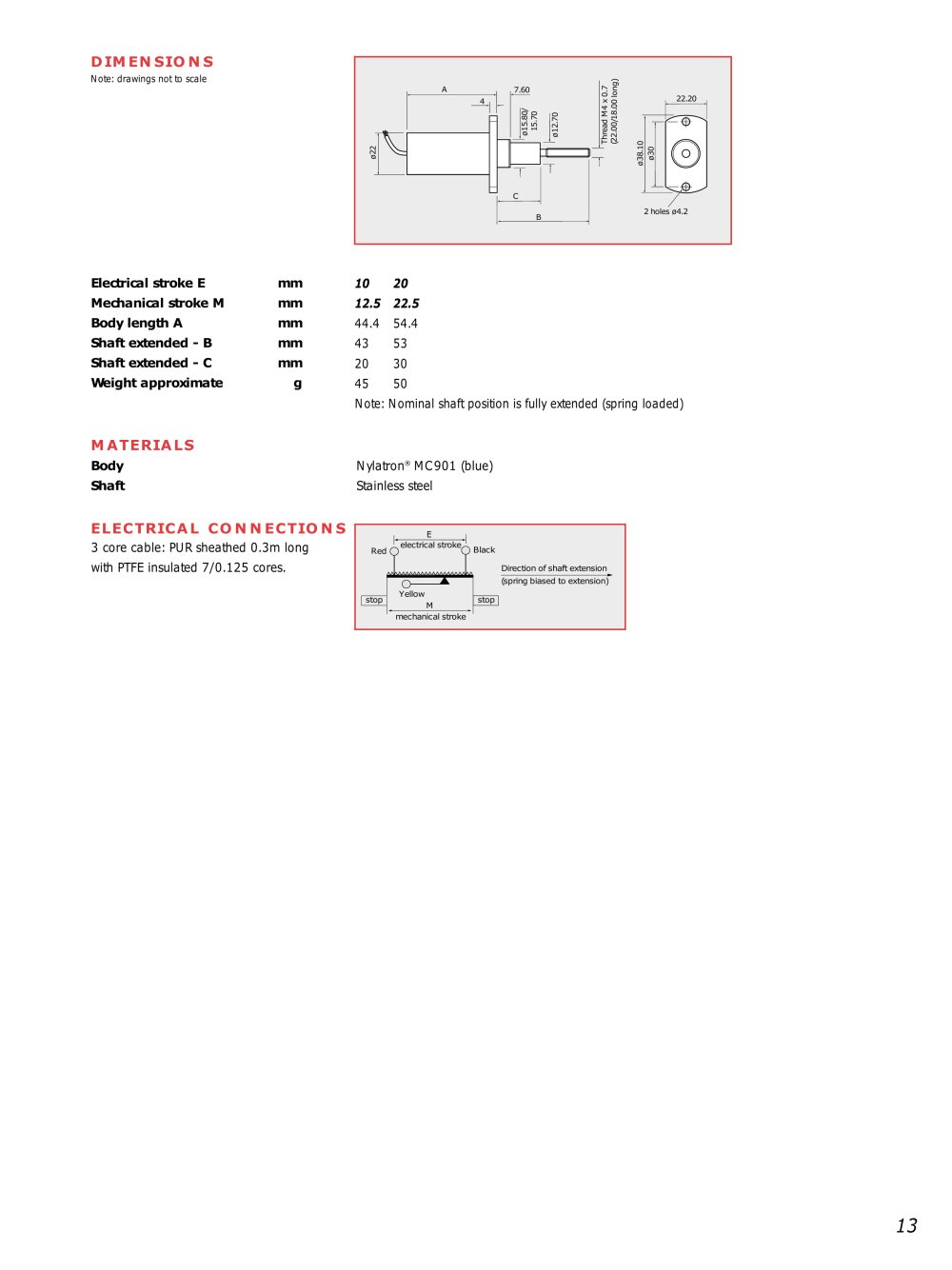

DIMENSIONS
Note: drawings not to scale A7.60
C 4 ø15.80/ 15.70ø12.70Thread M4 x 0.7(22.00/18.00 long) ø22 ø30 ø38.10 B 2 holes ø4.2
22.20 44.454.4
4353
2030
4550
Note: Nominal shaft position is fully extended (spring loaded) Electrical stroke E mm
Mechanical stroke Mmm
Body length A mm
Shaft extended - Bmm
Shaft extended -
Cmm
Weight approximate g 10 20 12.5 22.5
MATERIALS
BodyShaft Nylatron
® MC901 (blue)Stainless steel
E 3 core cable: PUR sheathed 0.3m long
with PTFE insulated 7/0.125 cores.
electrical strokeRedBlackYellowDirection of shaft extension(spring biased to extension)mechanical strokeM stopstop 13
