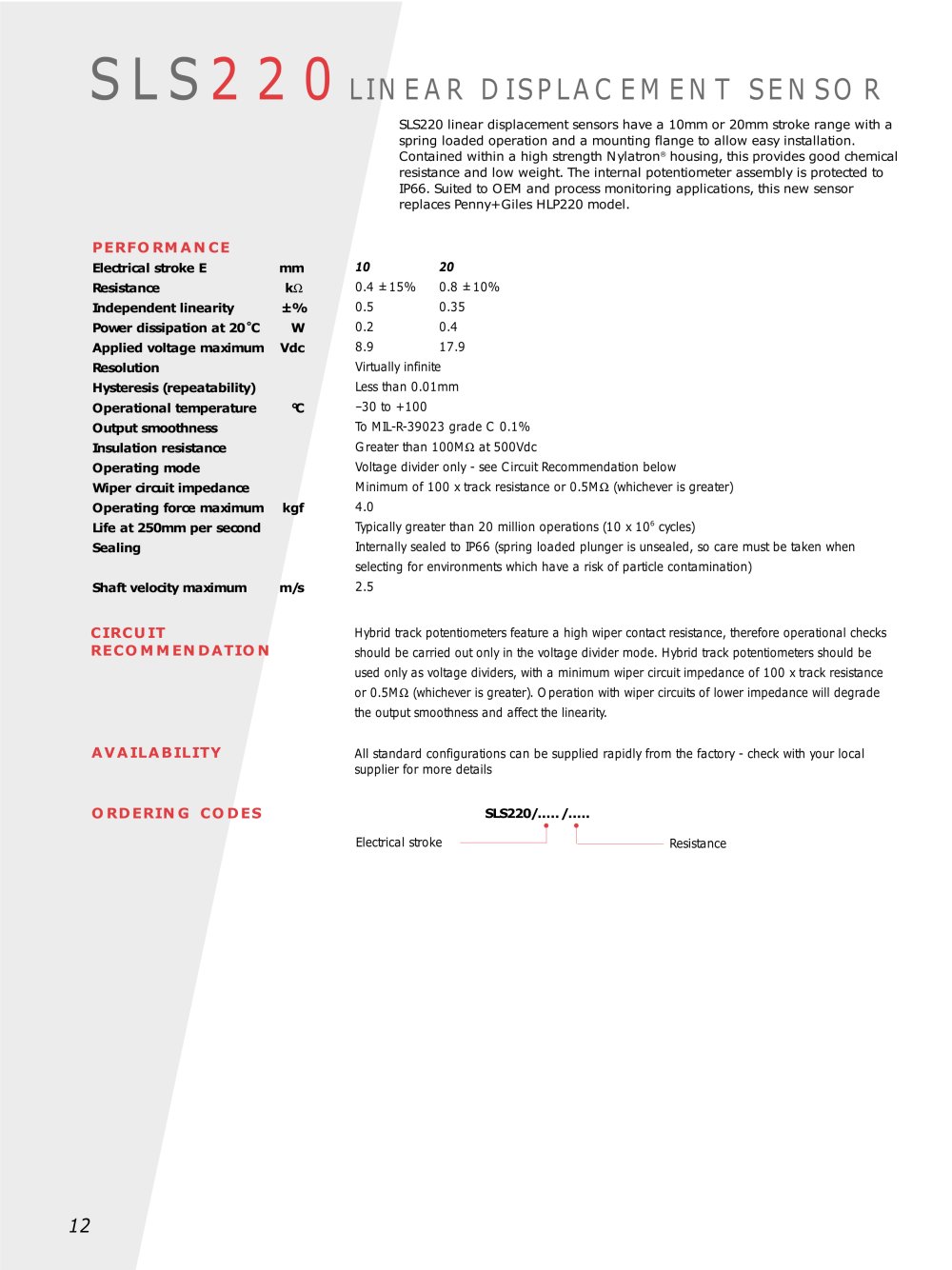

SLS 220
LINEAR DISPLACEMENT SENSOR
SLS220 linear
displacement sensors have a 10mm or 20mm stroke range with aspring loaded operation and a mounting flange to allow easy installation.
Contained within a high strength Nylatron
® housing, this provides good chemicalresistance and low weight. The internal potentiometer assembly is protected to
IP66. Suited to OEM and process monitoring applications, this new sensor
replaces Penny+Giles HLP220 model. Ω at 500VdcVoltage divider only - see Circuit Recommendation below
Minimum of 100 x track resistance or 0.5M Ω (whichever is greater)4.0
Typically greater than 20 million operations (10 x 10
PERFORMANCE
Electrical stroke EmmResistance k 10 20 Ω 0.4 ±15%0.8 ±10% 0.50.35
0.2 0.4 8.9 17.9 Virtually infinite
Less than 0.01mm
–30 to +100
To MIL-R-39023 grade C 0.1%
Greater than 100M Independent linearity±%
Power dissipation at 20ËšC W
Applied voltage maximum Vdc Resolution Hysteresis (repeatability)
Operational temperature °C
Output smoothness Insulation resistance Operating mode Wiper circuit impedance Operating force maximumkgf
Life at 250mm per second
SealingShaft velocity maximumm/s
6 cycles)Internally sealed to IP66 (
spring loaded plunger is unsealed, so care must be taken when
selecting for environments which have a risk of particle contamination)
2.5 Ω (whichever is greater). Operation with wiper circuits of lower impedance will degrade the output smoothness and affect the linearity.
CIRCUITRECOMMENDATION
Hybrid track
potentiometers feature a high wiper contact resistance, therefore operational checks should be carried out only in the voltage divider mode. Hybrid track potentiometers should be used only as voltage dividers, with a minimum wiper circuit impedance of 100 x track resistance or 0.5M
AVAILABILITY ORDERING CODES
Supplied from stock or within five days from the factory SLS220/...../..... Electrical stroke Resistance
12
