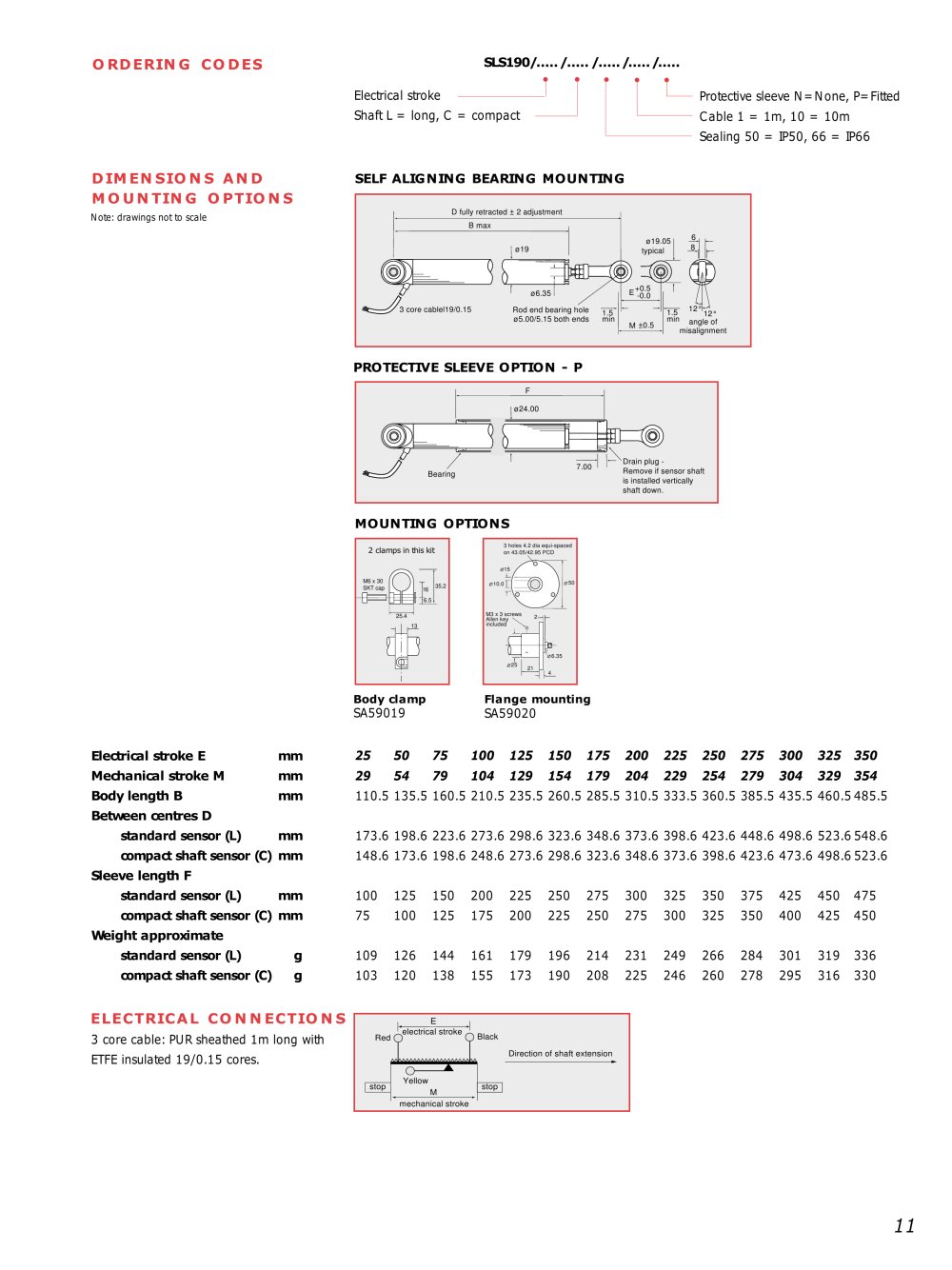

SLS190/...../...../...../...../.....

ORDERING CODES

Electrical stroke

Shaft L = long, C = compact

Protective sleeve N = None, P=Fitted Cable 1 = 1m, 10 = 10m Sealing 50 = IP50, 66 = IP66

DIMENSIONS AND MOUNTING OPTIONS

Note: drawings not to scale

SELF ALIGNING BEARING MOUNTING

PROTECTIVE SLEEVE OPTION - P

\— Drain plug -

Remove if sensor shaft is installed vertically shaft down.

Bearing

MOUNTING OPTIONS

Body clamp

SA59019

Flange mounting

SA59020

Electrical stroke E mm

Mechanical stroke M mm

Body length B mm Between centres D

standard sensor (L) mm

compact shaft sensor (C) mm Sleeve length F

standard sensor (L) mm

compact shaft sensor (C) mm Weight approximate

standard sensor (L) g

compact shaft sensor (C) g

25 50 75 100 125 1 50 175 200 225 250 275 300 325 350 29 54 79 104 129 154 179 204 229 254 279 304 329 354

110.5 135.5 160.5 210.5 235.5 260.5 285.5 310.5 333.5 360.5 385.5 435.5 460.5 485.5

173.6 198.6 223.6 273.6 298.6 323.6 348.6 373.6 398.6 423.6 448.6 498.6 523.6548.6 148.6 173.6 198.6 248.6 273.6 298.6 323.6 348.6 373.6 398.6 423.6 473.6 498.6523.6

100 125 150 200 225 250 275 300 325 350 375 425 450 475 75 100 125 175 200 225 250 275 300 325 350 400 425 450

109 126 144 161 179 196 214 231 249 266 284 301 319 336 103 120 138 155 173 190 208 225 246 260 278 295 316 330


Red	L_^E_-\| 'electrical stroke.-.	Black Direction of shaft extension
	o-*
	Yellow
stop	M	stop
	mechanical stroke

ELECTRICAL CONNECTIONS

3 core cable: PUR sheathed 1m long with ETFE insulated 19/0.15 cores.
