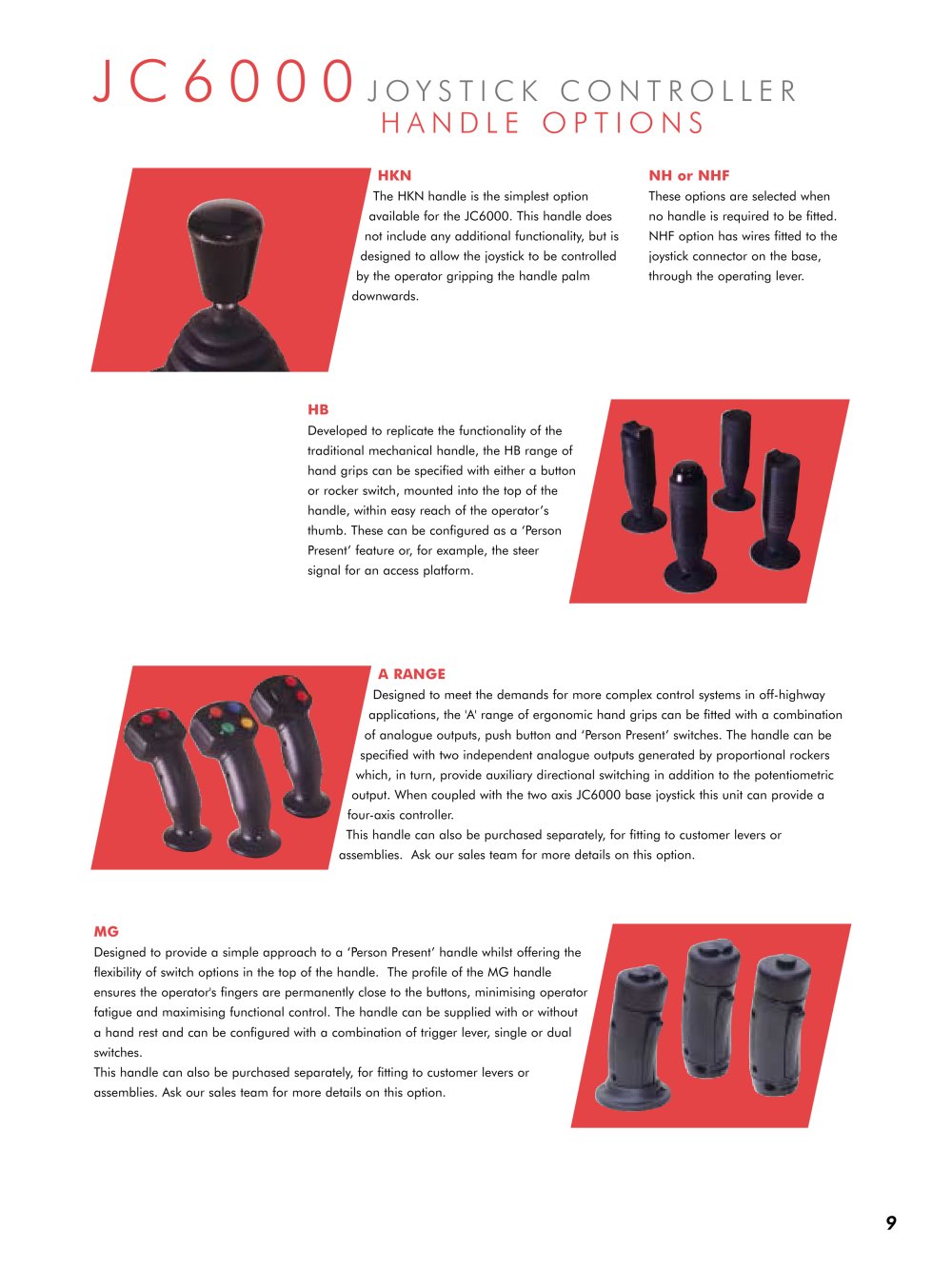

JC6000
HKN NH or NHF
The HKNhandle is the simplest optionavailable for the JC6000. This handle doesnot include any additional functionality, but isdesigned to allow the joystick to be controlledby the operator gripping the handle palmdownwards. These options are selected when
no handle is required to be fitted.
NHF option has wires fitted to the
joystick connector on the base,
through the operating lever.
HB
Developed to replicate the functionality of the
traditional mechanical handle, the HB range of
hand grips can be specified with either a button
or
rocker switch, mounted into the top of the
handle, within easy reach of the operator’s
thumb. These can be configured as a ‘Person
Present’ feature or, for example, the steer
signal for an
access platform.
A RANGE
Designed to meet the demands for more complex control systems in off-highwayapplications, the 'A' range of ergonomic hand grips can be fitted with a combinationof analogue outputs, push button and ‘Person Present’ switches. The handle can bespecified with two independent analogue outputs generated by proportional rockerswhich, in turn, provide auxiliary directional switching in addition to the potentiometricoutput. When coupled with the two axis JC6000 base joystick this unit can provide afour-axis controller.This handle can also be purchased separately, for fitting to customer levers orassemblies. Ask our sales team for more details on this option.
MG
Designed to provide a simple approach to a ‘Person Present’ handle whilst offering theflexibility of switch options in the top of the handle. The profile of the MG handle
ensures the operator's fingers are permanently close to the buttons, minimising operator
fatigue and maximising functional control. The handle can be supplied with or without
a hand rest and can be configured with a combination of trigger lever, single or dual
switches. This handle can also be purchased separately, for fitting to customer levers or
assemblies. Ask our sales team for more details on this option.
9
