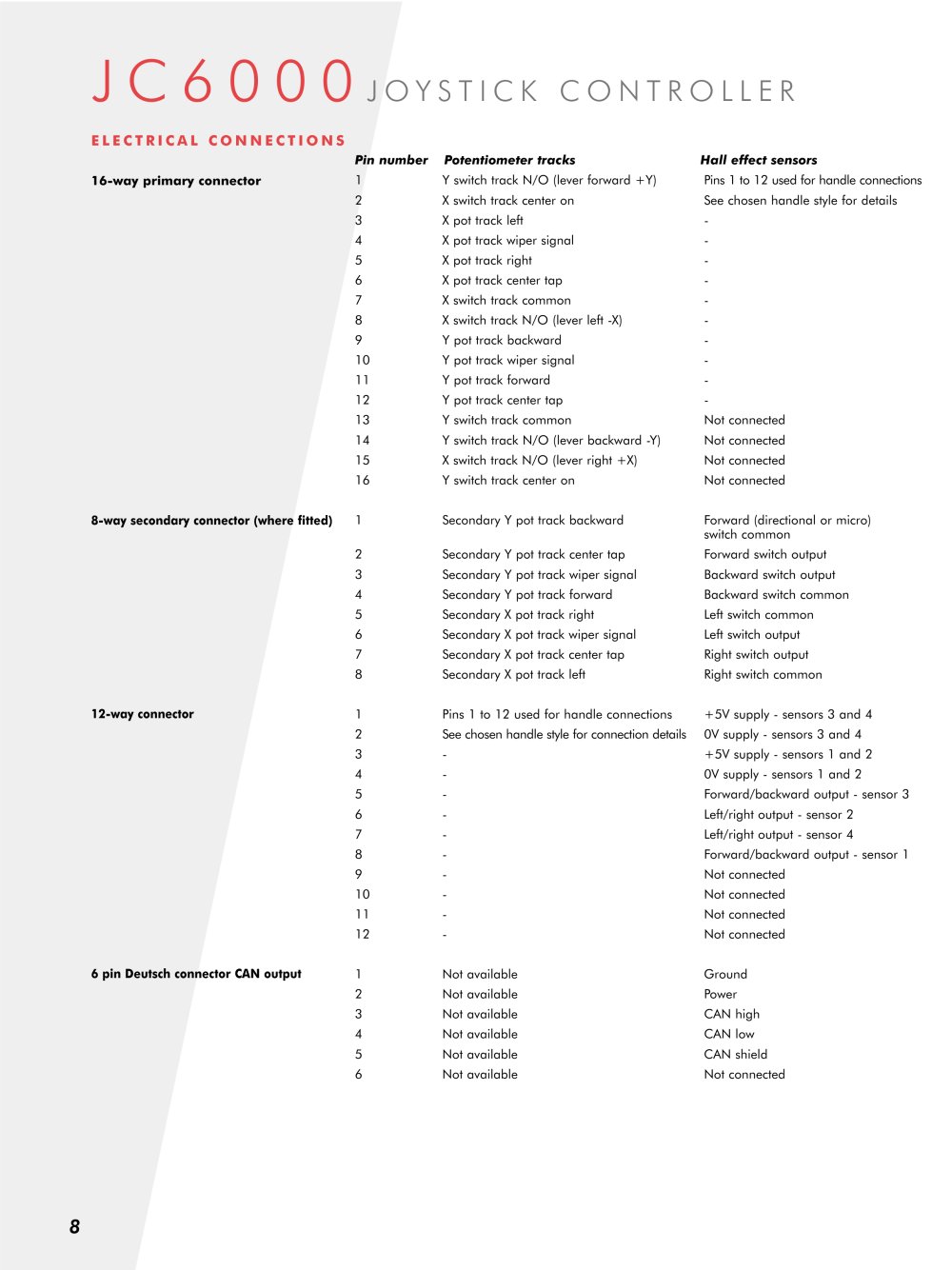

JC6000
Pin numberPotentiometer tracksHall effect sensors 16-way primary connector 1Y switch track N/O (lever forward +Y)Pins 1 to 12 used for handle connections2X switch track center onSee chosen handle style for details
3 X pot track left -
4X pot track wiper signal-
5X pot track right-
6X pot track center tap-
7 X switch track common-
8X switch track N/O (lever left -X)-
9Y pot track backward-
10Y pot track wiper signal-
11Y pot track forward-
12Y pot track center tap-
13Y switch track commonNot connected
14Y switch track N/O (lever backward -Y)Not connected
15X switch track N/O (lever right +X)Not connected
16Y switch track center onNot connected1Secondary Y pot track forwardForward (directional or micro) switch common2Secondary Y pot track center tapForward switch output
3Secondary Y pot track wiper signalBackward switch output
4Secondary Y pot track backwardBackward switch common
5Secondary X pot track rightLeft switch common
6Secondary X pot track wiper signalLeft switch output
7Secondary X pot track center tapRight switch output
8Secondary X pot track leftRight switch common 1 Pins 1 to 12 used for handle connections+5V supply - sensors 3 and 42See chosen handle style for connection details0V supply - sensors 3 and 43-+5V supply - sensors 1 and 2
4-0V supply - sensors 1 and 2
5-Forward/backward output - sensor 3
6-Left/right output - sensor 2
7-Left/right output - sensor 4
8-Forward/backward output - sensor 1
9-Not connected
10-Not connected
11-Not connected
12-Not connected1Not available Ground2Not availablePower
3 Not availableCAN high
4 Not available CAN low
5 Not available CAN shield
6 Not available Not connected 8-way secondary connector (where fitted)
12-way connector 6 pin Deutsch connector CAN output
8
