| | | JCÓÜÜÜJC | | |
| | | |
| | | POTENTIOMETER AND HALL EFFECT CONTROLLER | | CAN OUTPUT CONTROLLER | | |

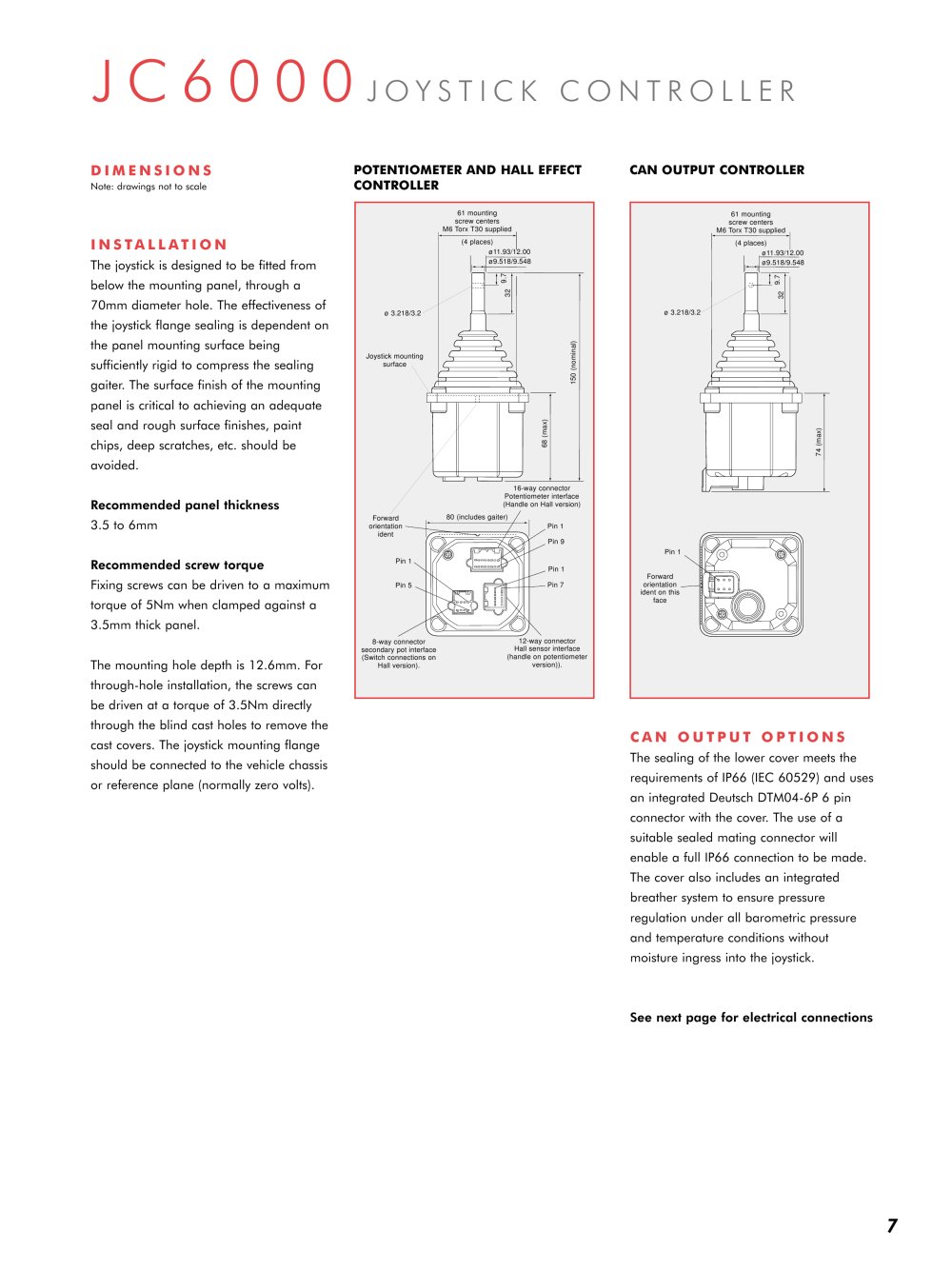

| | | DIMENSIONS Note: drawings not to scale | | |
| | | |
| | | |
| | | |
| | | 61 mounting screw centers M6 Torx T30 supplied | | |
| | | |
| | | (4 places) 011.93/12.00 | | |
| | | INSTALLATION The joystick is designed to be fitted from below the mounting panel, through a 70mm diameter hole. The effectiveness of the joystick flange sealing is dependent on the panel mounting surface being sufficiently rigid to compress the sealing gaiter. The surface finish of the mounting panel is critical to achieving an adequate industrial seal and rough surface finishes, paint chips, deep scratches, etc. should be avoided. Recommended panel thickness 3.5 to 6mm Recommended screw torque Fixing screws can be driven to a maximum torque of 5Nm when clamped against a 3.5mm thick panel. The mounting hole depth is 12.6mm. For through-hole installation, the screws can be driven at a torque of 3.5Nm directly through the blind cast holes to remove the cast covers. The joystick mounting flange should be connected to the vehicle chassis or reference plane (normally zero volts). | | |
| | | |
| | | 09.518/9.548 | | |
| | | |
| | | omin | | |
| | | |
| | | 16-way connector Potentiometer interface (Handle on Hall version) | | |
| | | |
| | | Forward orientation -ident | | |
| | | ^Pin 1 „ Pin 9 | | |
| | | |
| | | |
| | | Pin 1 -Pin 7 | | |
| | | |
| | | 12-way connector Hall sensor interface (handle on potentiometer version)). | | |
| | | 8-way connector secndary pot interface (Switch connections on Hall version). | | |
| | | |
| | | |
| | | CAN OUTPUT OPTIONS The sealing of the lower cover meets the requirements of IP66 (IEC 60529) and uses an integrated Deutsch DTM04-6P 6 pin connector with the cover. The use of a suitable sealed mating connector will enable a full IP66 connection to be made. The cover also includes an integrated breather system to ensure pressure regulation under all barometric pressure and temperature conditions without moisture ingress into the joystick. | | |
| | | |
| | | |
| | | | | |
| | | |
| | | 7 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
