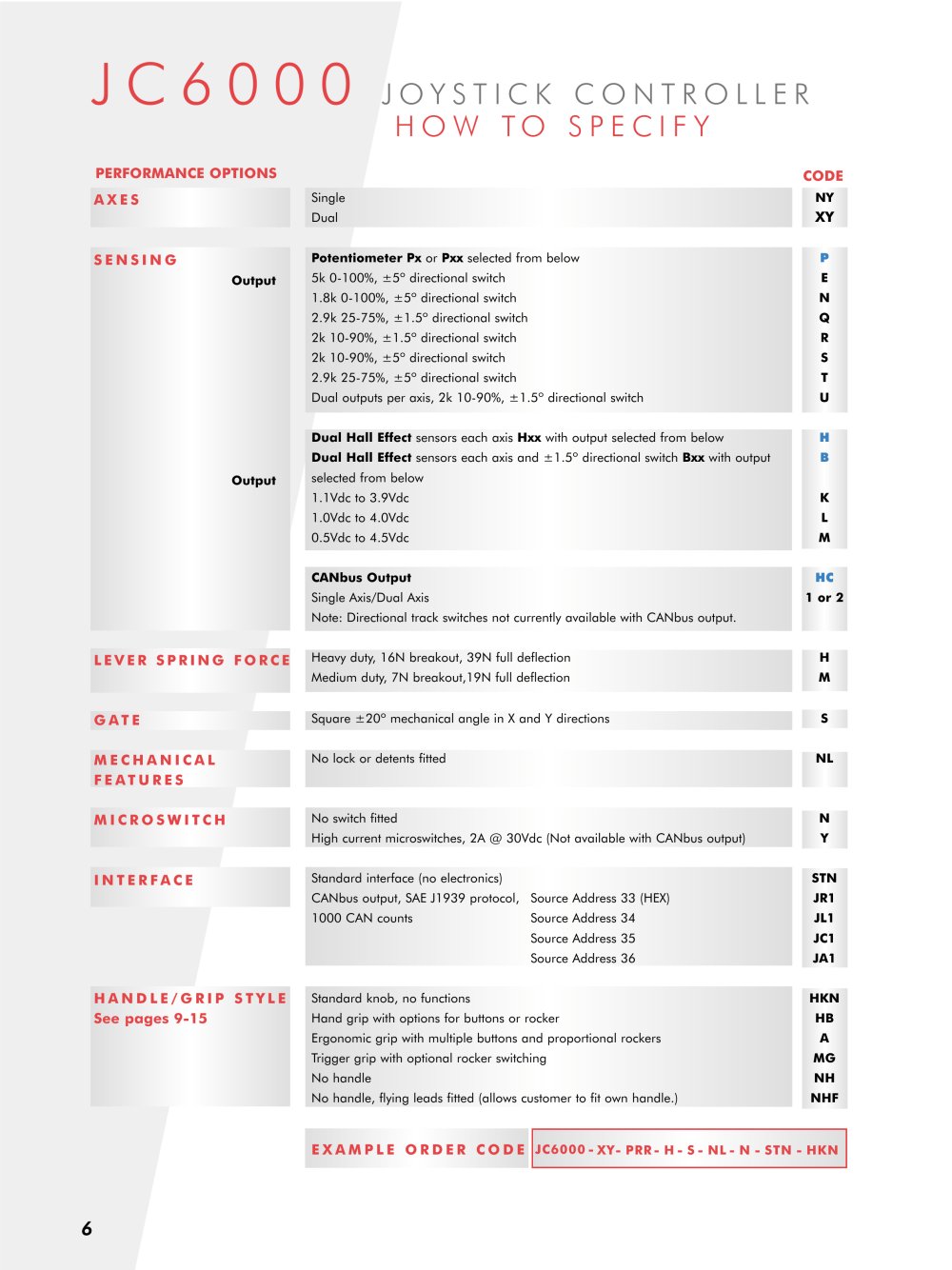

| JC6000 joystick controller how to specify PERFORMANCE OPTIONS CODE AXES Single NY Dual XY SENSING Potentiometer Px or Pxx selected from below P Output 5k 0-100%, ±5° directional switch E 1.8k 0-100%, ±5° directional switch N 2.9k 25-75%, ±1.5° directional switch Q 2k 10-90%, ±1.5° directional switch R 2k 10-90%, ±5° directional switch S 2.9k 25-75%, ±5° directional switch T Dual outputs per axis, 2k 10-90%, ±1.5° directional switch U Dual Hall Effect sensors each axis Hxx with output selected from below H Dual Hall Effect sensors each axis and ±1.5° directional switch Bxx with output B Output selected from below 1.1Vdc to 3.9Vdc K 1.0Vdc to 4.0Vdc L 0.5Vdc to 4.5Vdc M CANbus Output HC Single Axis/Dual Axis 1 or 2 Note: Directional track switches not currently available with CANbus output. LEVER SPRING FORCE Heavy duty, 16N breakout, 39N full deflection H Medium duty, 7N breakout,19N full deflection M GATE Square ±20° mechanical angle in X and Y directions S MECHANICAL No lock or detents fitted NL FEATURES MICROSWITCH No switch fitted N High current microswitches, 2A @ 30Vdc (Not available with CANbus output) Y INTERFACE Standard interface (no electronics) STN CANbus output, SAE J1939 protocol, Source Address 33 (HEX) JR1 1000 CAN counts Source Address 34 JL1 Source Address 35 JC1 Source Address 36 JA1 HANDLE/GRIP STYLE Standard knob, no functions HKN See pages 9-15 Hand grip with options for buttons or rocker HB Ergonomic grip with multiple buttons and proportional rockers A Trigger grip with optional rocker switching MG No handle NH No handle, flying leads fitted (allows customer to fit own handle.) NHF |
