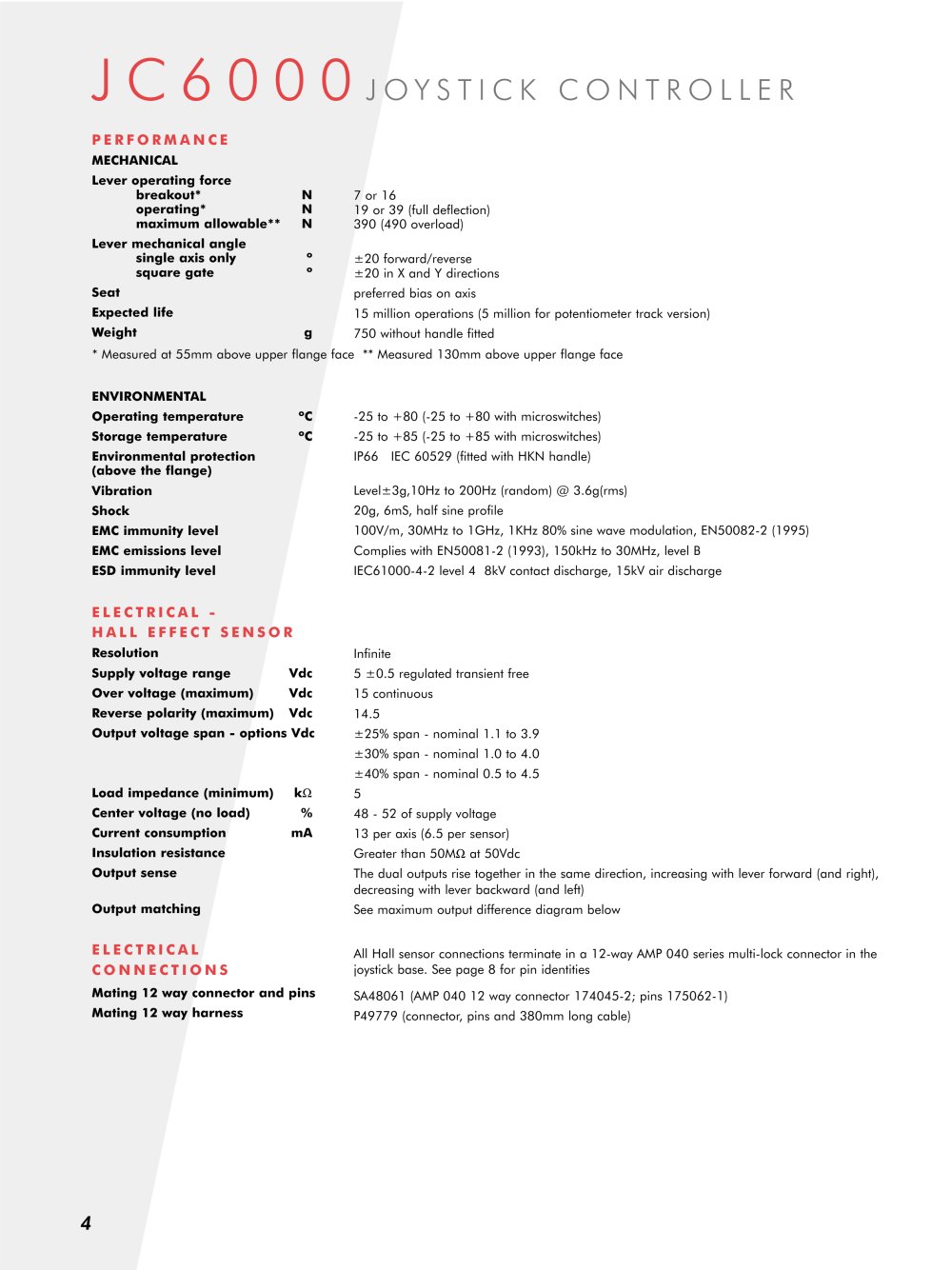

JC6000 joystick controller

PERFORMANCE

MECHANICAL

Lever operating force

breakout* N

operating* N

maximum allowable** N

Lever mechanical angle

single axis only °

square gate °

Seat

Expected life

Weight g

7 or 16

19 or 39 (full deflection) 390 (490 overload)

±20 forward/reverse ±20 in X and Y directions

preferred bias on axis

15 million operations (5 million for potentiometer track version) 750 without handle fitted

* Measured at 55mm above upper flange face ** Measured 130mm above upper flange face

ENVIRONMENTAL

Operating temperature

Storage temperature

Environmental protection (above the flange)

Vibration

Shock

EMC immunity level EMC emissions level ESD immunity level

°C -25 to +80 (-25 to +80 with microswitches)

°C -25 to +85 (-25 to +85 with microswitches)

IP66 IEC 60529 (fitted with HKN handle)

Level±3g,10Hz to 200Hz (random) @ 3.6g(rms) 20g, 6mS, half sine profile

100V/m, 30MHz to 1GHz, 1KHz 80% sine wave modulation, EN50082-2 (1995) Complies with EN50081-2 (1993), 150kHz to 30MHz, level B

IEC61000-4-2 level 4 8kV contact discharge, 15kV air discharge

ELECTRICAL -

HALL EFFECT SENSOR

Resolution

Supply voltage range Vdc

Over voltage (maximum) Vdc Reverse polarity (maximum) Vdc

Output voltage span - options Vdc

Infinite

5 ±0.5 regulated transient free

15 continuous

14.5

±25% span - nominal 1.1 to 3.9 ±30% span - nominal 1.0 to 4.0 ±40% span - nominal 0.5 to 4.5

48 - 52 of supply voltage 13 per axis (6.5 per sensor) Greater than 50M£2 at 50Vdc

The dual outputs rise together in the same direction, increasing with lever forward (and right), decreasing with lever backward (and left)

See maximum output difference diagram below

Load impedance (minimum) Center voltage (no load) Current consumption Insulation resistance Output sense

Output matching

% mA

ELECTRICAL CONNECTIONS

Mating 12 way connector supplier and pins Mating 12 way harness

All Hall sensor connections terminate in a 12-way AMP 040 series multi-lock connector in the joystick base. See page 8 for pin identities

SA48061 (AMP 040 12 way connector 174045-2; pins 175062-1) P49779 (connector, pins and 380mm long cable)
