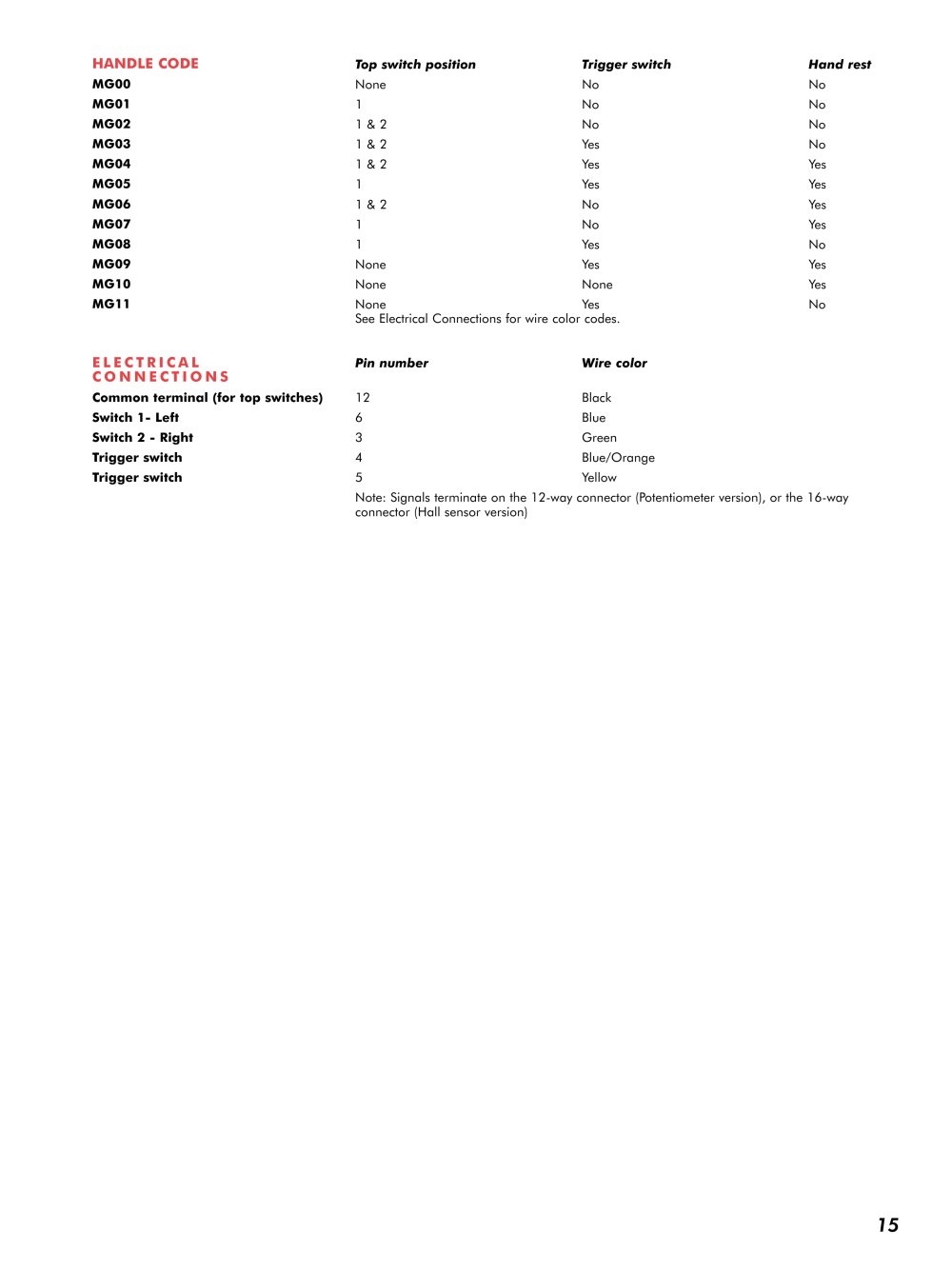

HANDLE CODE	*Top switch position*	*Trigger switch*	*Hand rest*
MG00	None	No	No
MG01		No	No
MG02	1 & 2	No	No
MG03	1 & 2	Yes	No
MG04	1 & 2	Yes	Yes
MG05		Yes	Yes
MG06	1 & 2	No	Yes
MG07		No	Yes
MG08		Yes	No
MG09	None	Yes	Yes
MG10	None	None	Yes
MG11	None Yes See Termination details for wire color codes.		No
ELECTRICAL CONNECTIONS	*Pin number*	*Wire color*
Common terminal (for top switches)	12	Black
Switch 1	6	Blue
Switch 2	3	Green
Trigger switch	4	Blue/Orange
Trigger switch	5	Yellow
	Note: Signals terminate on the 12-way connector (Potentiometer version), connector (Hall sensor version)		or the 16-way
