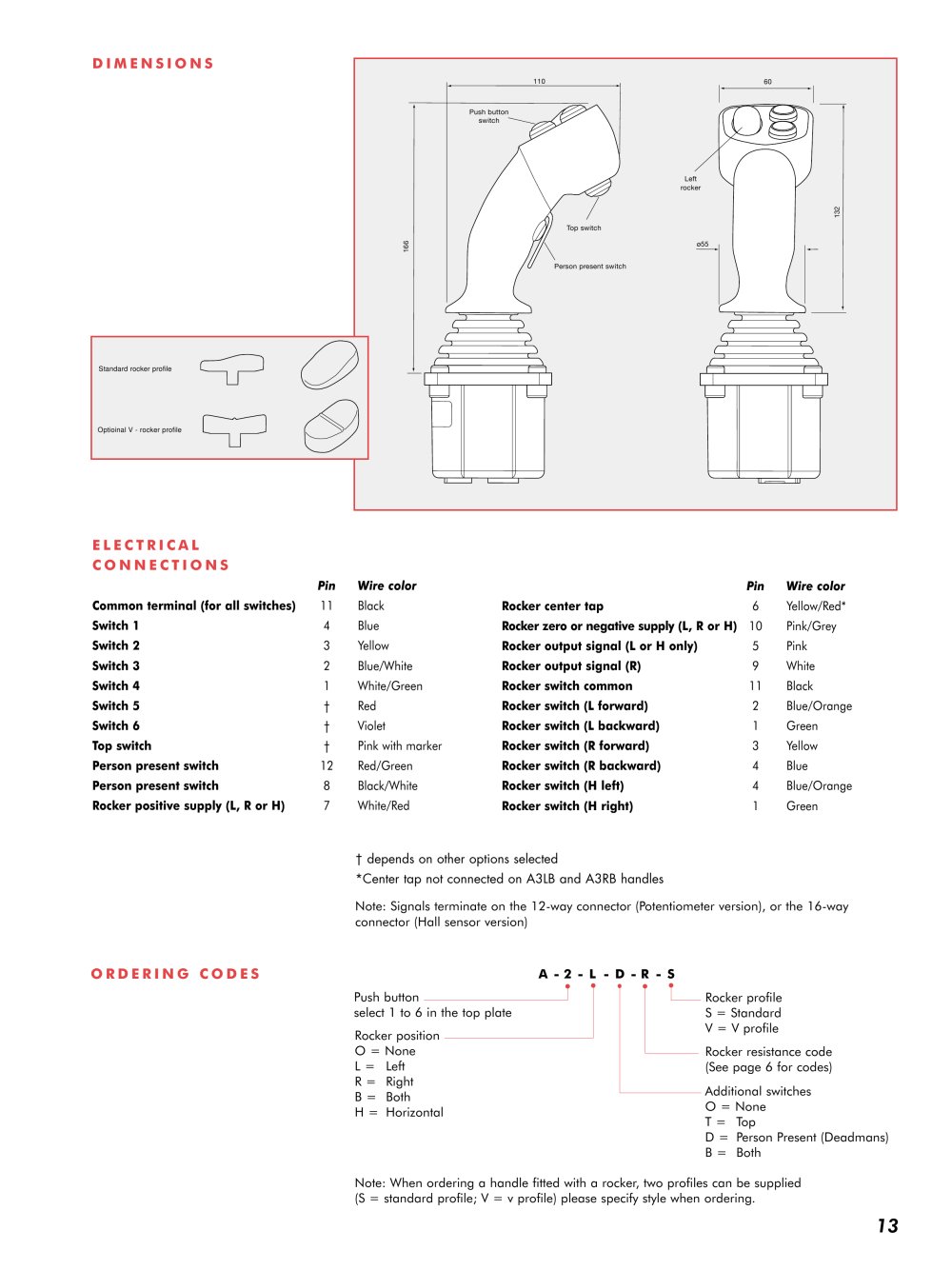

DIMENSIONS ELECTRICAL CONNECTIONS

110 60 ø55Top switch Push buttonswitchLeftrocker Person present switch 166 132 Standard rocker profileOptioinal V - rocker profile PinWire color PinWire color Common terminal (for all switches) 11Black Rocker center tap 6Yellow/Red* Switch 1 4Blue Rocker zero or negative supply (L, R or H) 10Pink/Grey Switch 2 3Yellow Rocker output signal (L or H only) 5Pink Switch 3 2Blue/White Rocker output signal (R) 9White Switch 4 1White/Green Rocker switch common 11Black Switch 5 †Red Rocker switch (L forward) 2Blue/Orange Switch 6 †Violet Rocker switch (L backward) 1Green Top switch †Pink with marker Rocker switch (R forward) 3Yellow Person present switch 12Red/Green Rocker switch (R backward) 4Blue Person present switch 8Black/White Rocker switch (H left) 4Blue/Orange Rocker positive supply (L, R or H) 7White/Red Rocker switch (H right) 1Green † depends on other options selected*Center tap not connected on A3LB and A3RB handles Note: Signals terminate on the 12-way connector specification (Potentiometer version), or the 16-wayconnector (Hall sensor version)Rocker profileS = Standard V = V profileRocker resistance code(See page 6 for codes)

ORDERING CODES

A -2 - L- D -R- S Push button select 1 to 6 in the top plate Additional switches O = None T = Top D = Person Present (Deadmans) B = BothRocker positionO = None L = Left R = Right B = Both H = Horizontal Note: When ordering a handle fitted with a rocker, two profiles can be supplied (S = standard profile; V = v profile) please specify style when ordering.

13
