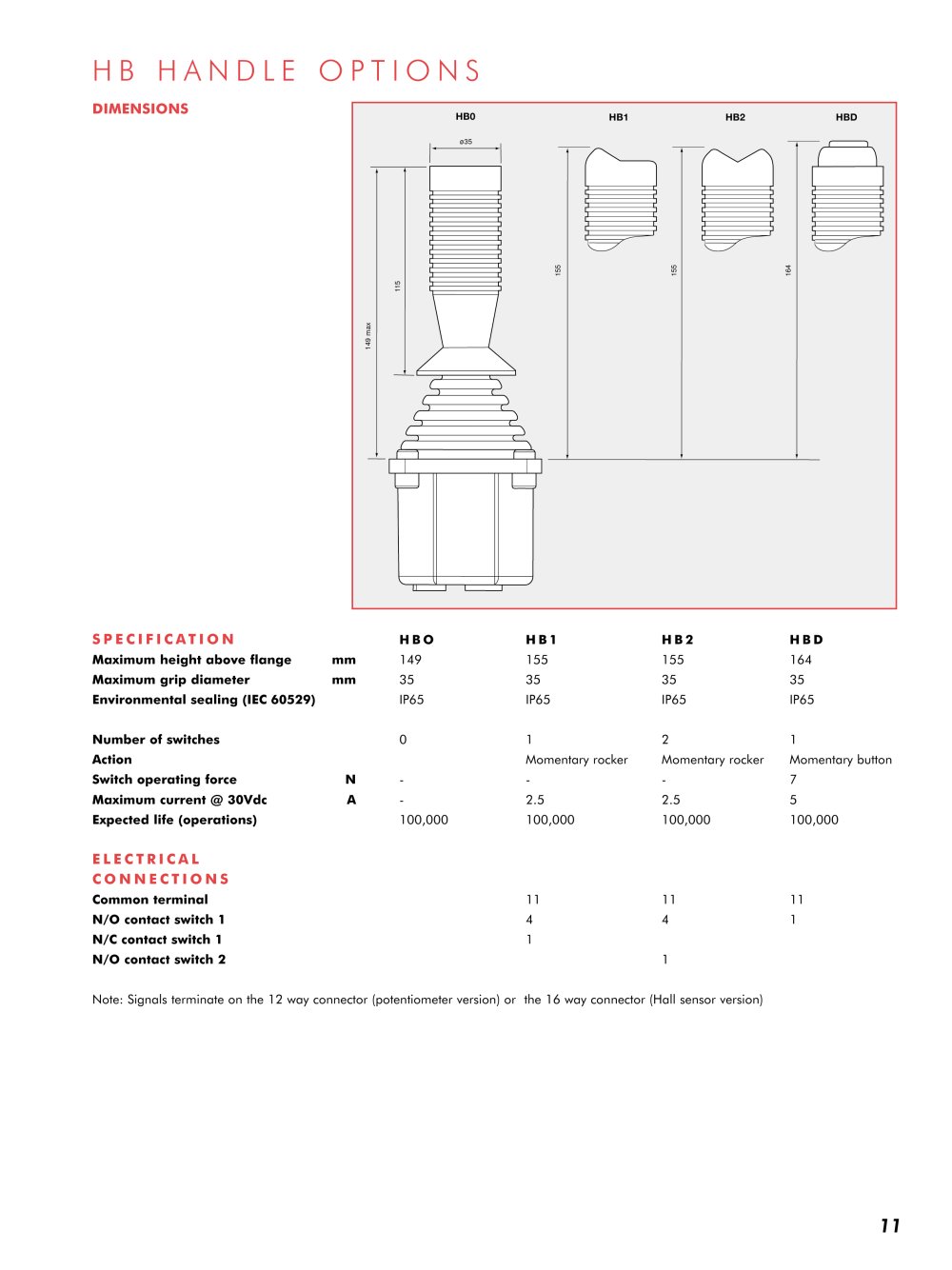

HB HANDLE OPTIONS

DIMENSIONS

HB0HB1HB2HBD ø35 155 155 164 115149 max

SPECIFICATION

HBOHB1HB2HBD Maximum height above flangemm 149155155164 Maximum grip diametermm 35353535 Environmental sealing (IEC60529) IP65IP65IP65IP65 Number of switches 0121 Action Momentary rockerMomentary rockerMomentary button Switch operating forceN ---7 Maximum current @ 30VdcA -2.52.55 Expected life (operations) 100,000100,000100,000100,000

ELECTRICAL CONNECTIONS

Common terminal 111111 N/O contact switch 1 441 N/C contact switch 1 1 N/O contact switch 2 1Note: Signals terminate on the 12 way connector (potentiometer version) or the 16 way connector (Hall sensor version)
