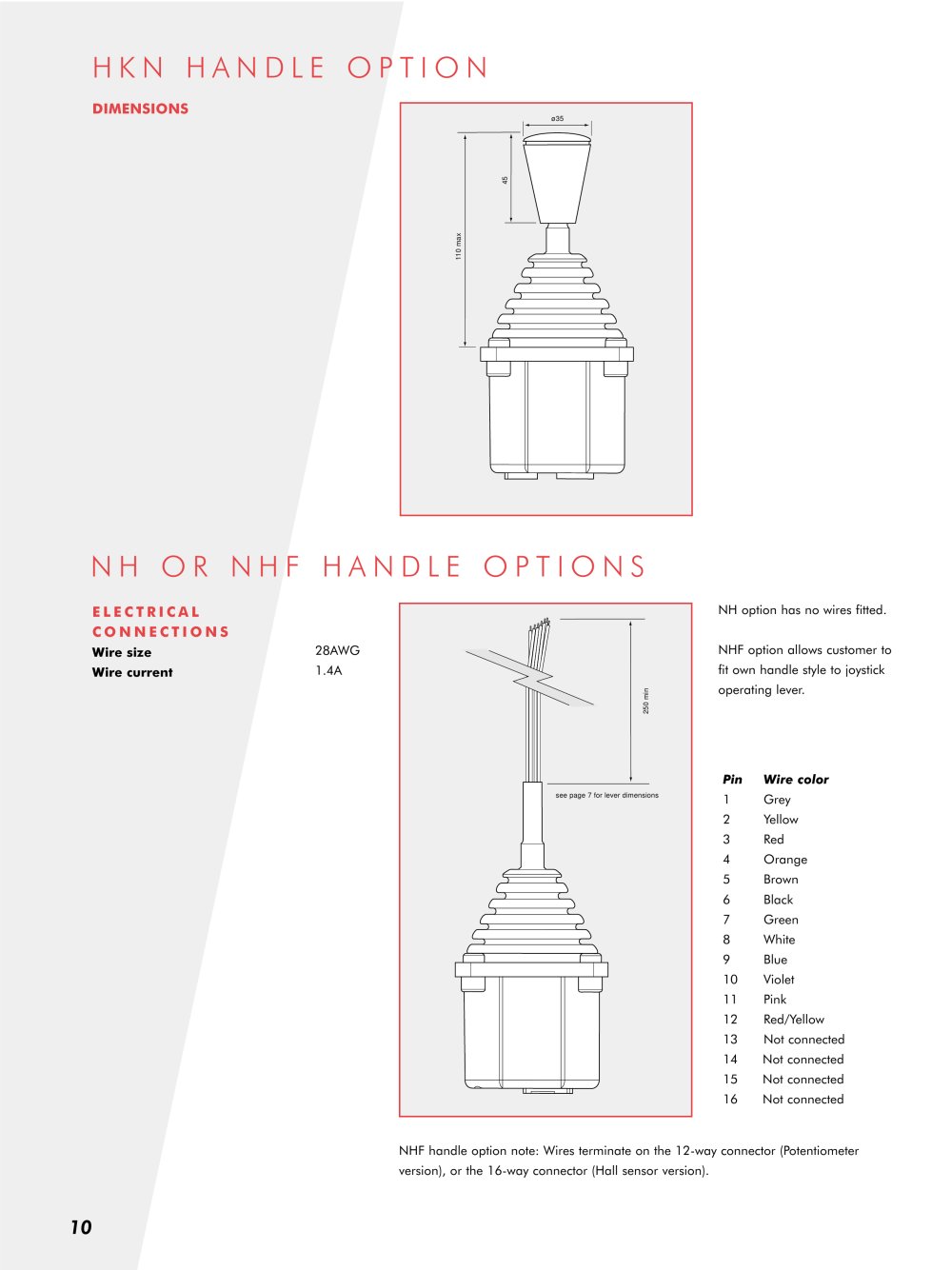

| | | hkn handle option | | |
| | | |
| | | DIMENSIONS | | |
| | | |
| | | nh or nhf handle options | | |
| | | |
| | | NH option has no wires fitted. | | |
| | | ELECTRICAL CONNECTIONS Wire size Wire current | | |
| | | 28AWG 1.4A | | |
| | | |
| | | |
| | | |
| | | | | | | | | | Pin | Wire color | | | | 1 | Grey | | | | 2 | Yellow | | | | 3 | Red | | | | 4 | Orange | | | | 5 | Brown | | | | 6 | Black | | | | 7 | Green | | | | 8 | White | | | | 9 | Blue | | | | 10 | Violet | | | | 11 | Pink | | | | 12 | Red/Yellow | | | | 13 | Not connected | | | | 14 | Not connected | | | | 15 | Not connected | | | | 16 | Not connected | | | | | | | | | |
| | | |
| | | NHF handle option note: Wires terminate on the 12-way connector supplier (Potentiometer version), or the 16-way connector (Hall sensor version). | | |
| | | |
| | | 10 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | |
