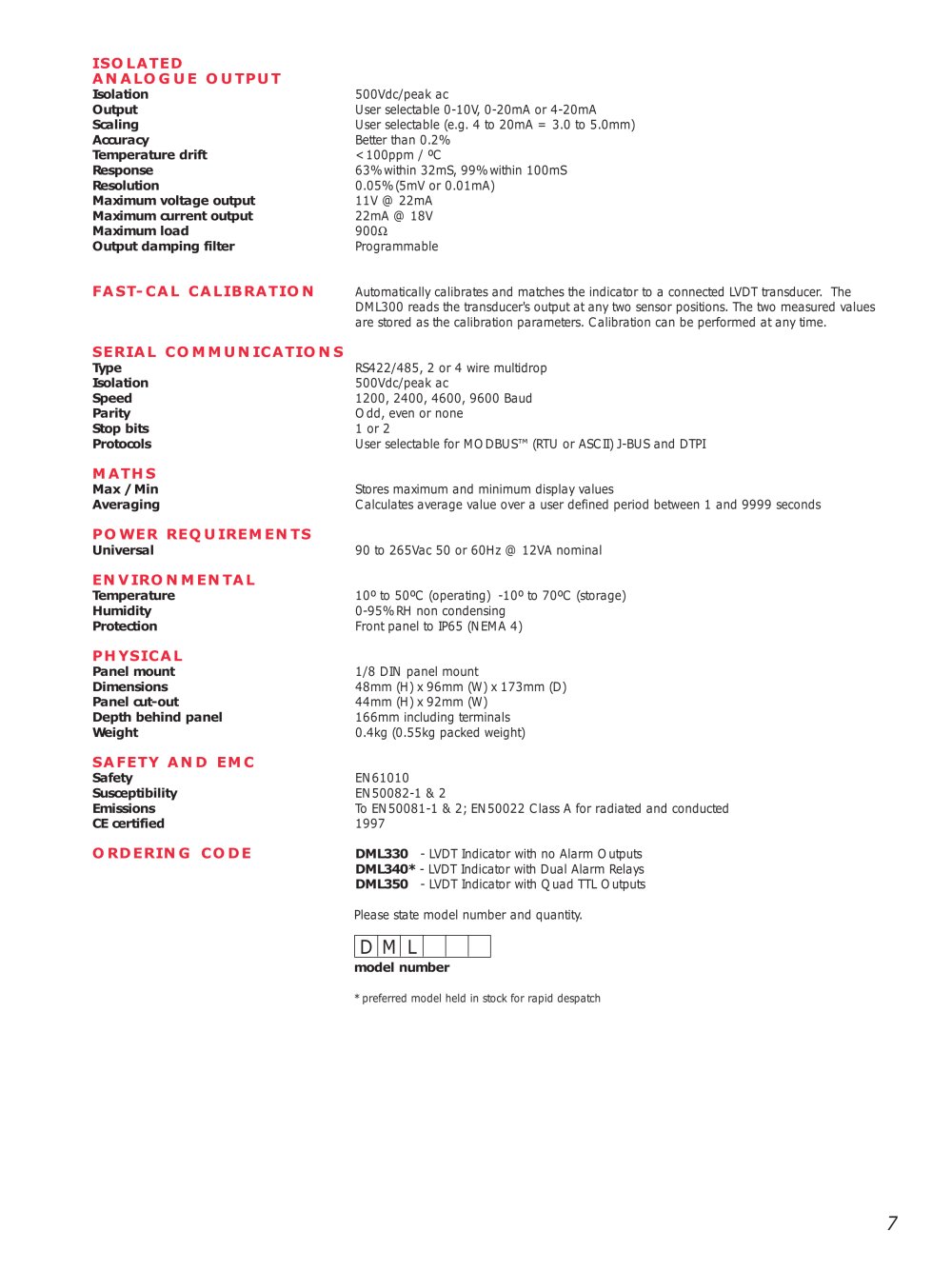

ISOLATED ANALOGUE OUTPUT
Isolation 500Vdc/peak ac Output User selectable 0-10V, 0-20mA or 4-20mA Scaling User selectable (e.g. 4 to 20mA = 3.0 to 5.0mm) Accuracy Better than 0.2% Temperature drift <100ppm / ºC Response 63% within 32mS, 99% within 100mS Resolution 0.05% (5mV or 0.01mA) Maximum voltage output 11V @ 22mA Maximum current output 22mA @ 18V Maximum load 900 Ω Output
damping filter Programmable
FAST-CAL CALIBRATION
Automatically calibrates and matches the indicator to a connected LVDT
transducer. TheDML300 reads the transducer's output at any two sensor positions. The two measured values
are stored as the calibration parameters. Calibration can be performed at any time.
SERIAL COMMUNICATIONS
Type RS422/485, 2 or 4 wire multidrop Isolation 500Vdc/peak ac Speed 1200, 2400, 4600, 9600 Baud Parity Odd, even or none Stop bits 1 or 2 Protocols User selectable for MODBUS™ (RTU or ASCII) J-BUS and DTPI
MATHS
Max / Min Stores maximum and minimum display values Averaging Calculates average value over a user defined period between 1 and 9999 seconds
POWER REQUIREMENTS
Universal 90 to 265Vac 50 or 60Hz @ 12VA nominal
ENVIRONMENTAL
Temperature 10º to 50ºC (operating) -10º to 70ºC (storage) Humidity 0-95% RH non condensing Protection Front panel to IP65 (NEMA 4)
PHYSICAL
Panel mount 1/8 DIN panel mount Dimensions 48mm (H) x 96mm (W) x 173mm (D) Panel cut-out 44mm (H) x 92mm (W) Depth behind panel 166mm including terminals Weight 0.4kg (0.55kg packed weight)
SAFETY AND EMC
Safety EN61010 Susceptibility EN50082-1 & 2 Emissions To EN50081-1 & 2; EN50022 Class A for radiated and conducted CE certified 1997
ORDERING CODE
DML330 - LVDT Indicator with no Alarm Outputs DML340* - LVDT Indicator with Dual
Alarm relays DML350 - LVDT Indicator with Quad TTL OutputsPlease state model number and quantity.
DML
model number
* preferred model held in stock for rapid despatch 7
