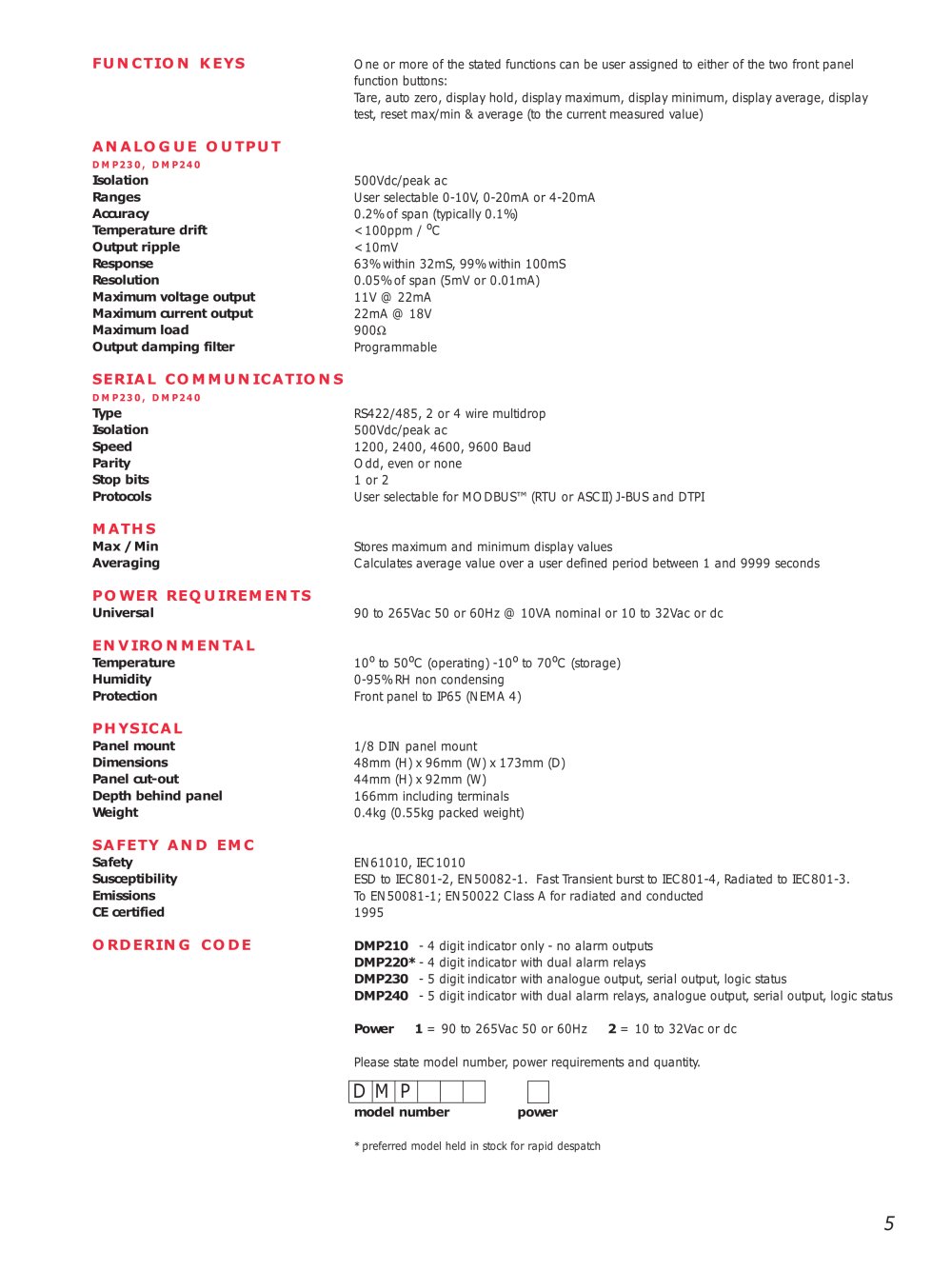

| | | FUNCTION KEYS | | |
| | | One or more of the stated functions can be user assigned to either of the two front panel function buttons: Tare, auto zero, display hold, display maximum, display minimum, display average, display test, reset max/ min & average (to the current measured value) | | |
| | | |
| | | |
| | | ANALOGUE OUTPI DM P230, DM P240 Isolation Ranges Accuracy Temperature drift Output ripple Response Resolution Maximum voltage output Maximum current output Maximum load Output damping filter | | |
| | | 500Vdc/peak ac User selectable 0-10V 0-20mA or 4-20mA 0.2% of span (typically 0.1%) <100ppm/°C < 10mV 63% within 32mS, 99% within 100mS 0.05% of span (5mV or 0.01mA) 11V @ 22mA 22mA @ 18V 900Q Programmable | | |
| | | |
| | | SERIAL COMMUNICATIONS DM P230, DM P240 Type Isolation Speed Parity Stop bits Protocols | | |
| | | RS422/485, 2 or 4 wire multidrop 500Vdc/peak ac 1200, 2400, 4600, 9600 Baud Odd, even or none 1 or 2 User selectable fo r MO DBUS™ (RTU or ASCII) J-BUS and DTP | | |
| | | |
| | | |
| | | MATHS Max / Min Averaging POWER REQUIREMENTS Universal | | |
| | | Stores maximum and minimum display values Calculâtes average value over a user defined period between 1 and 9999 seconds | | |
| | | |
| | | 90 to 265Vac 50 or 60Hz @ 10VA nominal or 10 to 32Vac or dc | | |
| | | |
| | | |
| | | ENVIRONMEN TAL Temperature Humidity Protection PHYSI CAL Panel mount Dimensions Panel cut-out Depth behind panel Weight SAFETY AN D EM C Safety Susceptibility Emissions CE certified | | |
| | | 10° to 50°C (operating) -10° to 70°C (storage) 0-95% RH non condensing Front panel to IP65 (NEMA 4) | | |
| | | |
| | | 1/8 DIN panel mount 48mm (H) x 96mm (W) x 173mm (D) 44mm (H) x 92mm (W) 166mm including terminals 0.4kg (0.55kg packed weight) | | |
| | | |
| | | EN61010, IEC1010 ESD to IEC801-2, EN50082-1. Fast Transient burst to IEC801-4, Radiated to IEC801-3. To EN50081-1; EN50022 Class A for radiated and conducted 1995 | | |
| | | |
| | | |
| | | O RDERI N G CODE | | |
| | | DMP210 - 4 digit indicator only - no alarm outputs DMP220* - 4 digit indicator with dual alarm relays DMP230 - 5 digit indicator with analogue output, serial output, logic status DMP240 - 5 digit indicator with dual alarm relays, analogue output, serial output, logic status | | |
| | | |
| | | |
| | | Power 1 = 90 to 265Vac 50 or 60Hz 2 = 10 to 32Vac or dc | | |
| | | |
| | | Please state model number; power requirements and quantity. | | |
| | | |
| | | D M P | | | |
| | | □ | |
| | | |
| | | model number power * preferred model held in stock for rapid despatch | | |
| | | |
| | | 5 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
