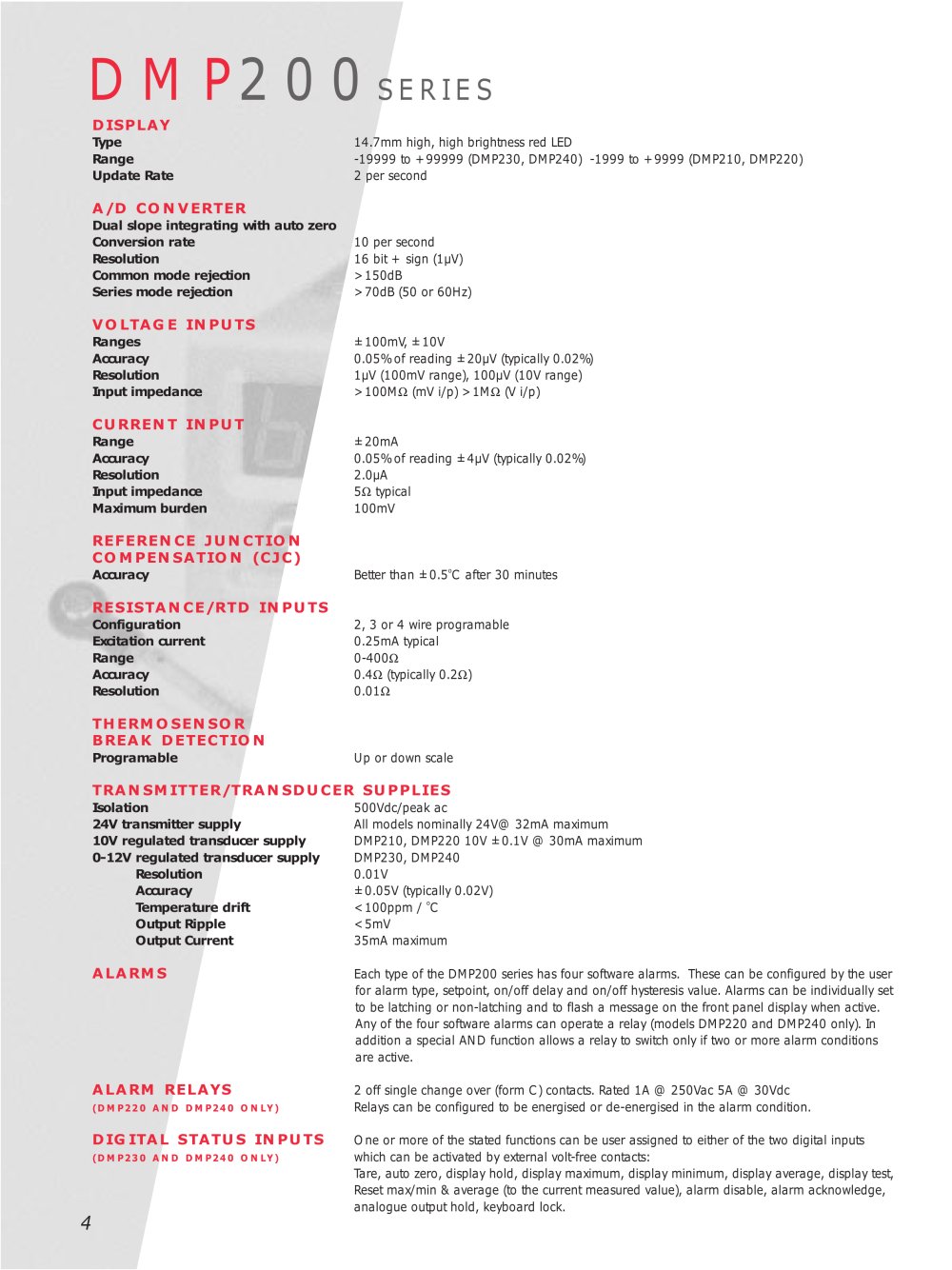

DMP200

SERIES

DISPLAY

Type 14.7mm high, high brightness red LED Range -19999 to +99999 (DMP230, DMP240) -1999 to +9999 (DMP210, DMP220) Update Rate 2 per second

A/D INDUSTRIAL CONVERTER

Dual slope integrating with auto zeroConversion rate 10 per second Resolution 16 bit + sign (1µV) Common mode rejection >150dB Series mode rejection >70dB (50 or 60Hz)

VOLTAGE INPUTS

Ranges ±100mV, ±10V Accuracy 0.05% of reading ±20µV (typically 0.02%) Resolution 1µV (100mV range), 100µV (10V range) Input impedance >100M Ω (mV i/p) >1M Ω (V i/p)

CURRENT INPUT

Range ±20mA Accuracy 0.05% of reading ±4µV (typically 0.02%) Resolution 2.0µA Input impedance 5 Ω typical Maximum burden 100mV

REFERENCE JUNCTION COMPENSATION (CJC)

Accuracy Better than ±0.5
o C after 30 minutes

RESISTANCE/RTD INPUTS

Configuration 2, 3 or 4 wire programable Excitation current 0.25mA typical Range 0-400 Ω Accuracy 0.4 Ω (typically 0.2 Ω ) Resolution 0.01 Ω

THERMOSENSORBREAK DETECTION

Programable Up or down scale

TRANSMITTER/TRANSDUCER SUPPLIES

Isolation 500Vdc/peak ac 24V transmitter supply All models nominally 24V@ 32mA maximum 10V regulated transducer supply DMP210, DMP220 10V ±0.1V @ 30mA maximum 0-12V regulated transducer supply DMP230, DMP240 Resolution 0.01V Accuracy ±0.05V (typically 0.02V) Temperature drift <100ppm /
o C Output Ripple <5mV Output Current 35mA maximum

ALARMS

Each type of the DMP200 series has four software alarms. These can be configured by the userfor alarm type, setpoint, on/off delay and on/off hysteresis value. Alarms can be individually set to be latching or non-latching and to flash a message on the front panel display when active. Any of the four software alarms can operate a relay (models DMP220 and DMP240 only). In addition a special AND function allows a relay to switch only if two or more alarm conditions are active.

ALARM RELAYS

2 off single change over (form C) contacts. Rated 1A @ 250Vac 5A @ 30Vdc
(DMP220 AND DMP240 ONLY) Relays can be configured to be energised or de-energised in the alarm condition.

DIGITAL STATUS INPUTS

One or more of the stated functions can be user assigned to either of the two digital inputs
(DMP230 AND DMP240 ONLY) which can be activated by external volt-free contacts: Tare, auto zero, display hold, display maximum, display minimum, display average, display test, Reset max/min & average (to the current measured value), alarm disable, alarm acknowledge, analogue output hold, keyboard lock.

4
