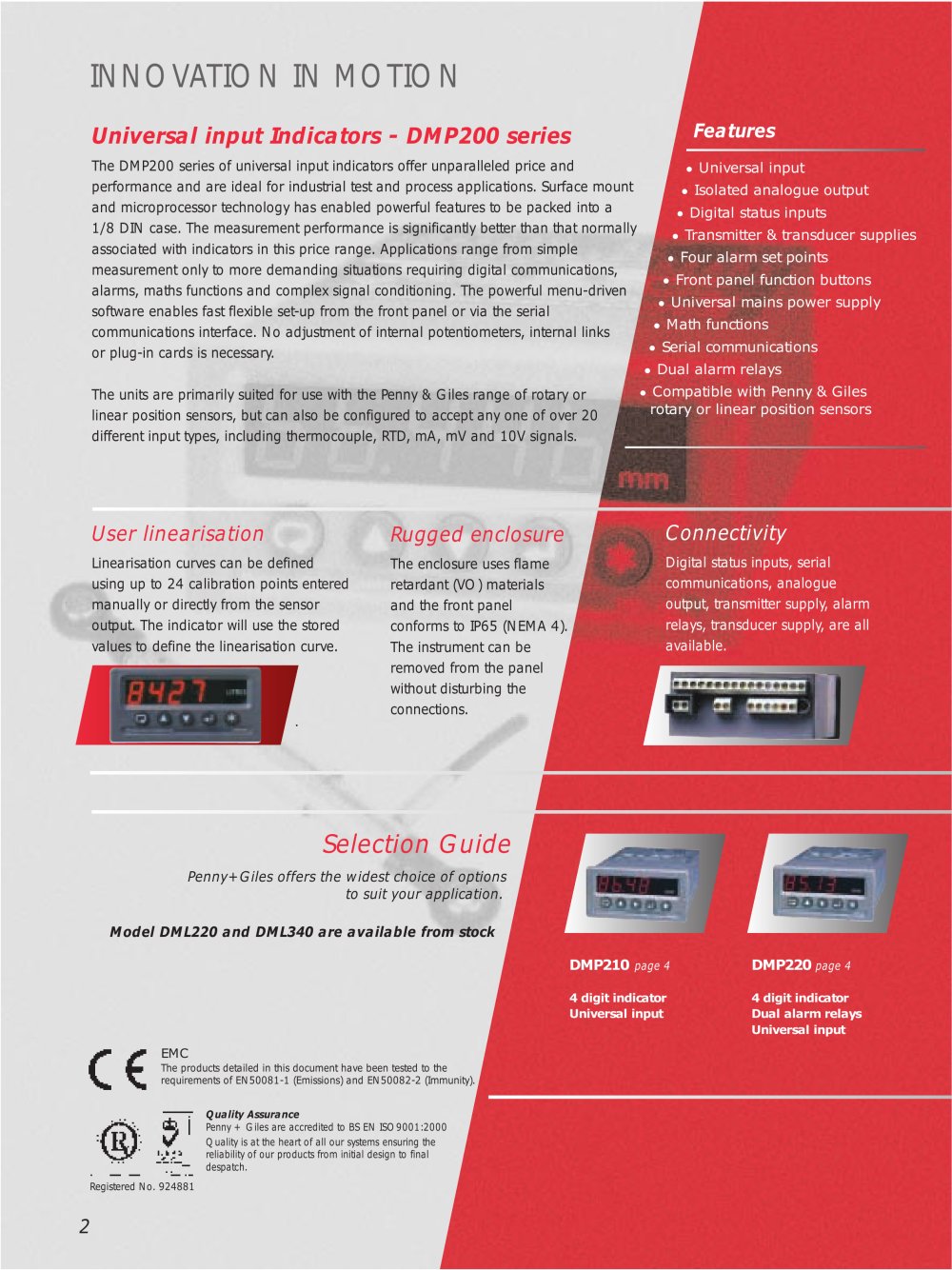

INNOVATION IN MOTION

Universal input Indicators - DMP200 series

Features

The DMP200 series of universal input indicators offer unparalleled price andperformance and are ideal for industrial test and process applications. Surface mountand microprocessor technology has enabled powerful features to be packed into a 1/8 DIN case. The measurement performance is significantly better than that normallyassociated with indicators in this price range. Applications range from simplemeasurement only to more demanding situations requiring digital communications,alarms, maths functions and complex signal conditioning. The powerful menu-drivensoftware enables fast flexible set-up from the front panel or via the serialcommunications interface. No adjustment of internal potentiometers, internal linksor plug-in cards is necessary. The units are primarily suited for use with the Penny & Giles range of rotary orlinear position sensors, but can also be configured to accept any one of over 20different input types, including thermocouple, RTD, mA, mV and 10V signals. ?Universal input?Isolated analogue output?Digital status inputs?Transmitter & transducer supplies?Four alarm set points?Front panel function buttons?Universal mains power supply?Math functions?Serial communications?Dual alarm relays?Compatible with Penny & Giles rotary or linear position sensors

User linearisation Rugged enclosure Connectivity

Linearisation curves can be definedusing up to 24 calibration points enteredmanually or directly from the sensoroutput. The indicator will use the stored values to define the linearisation curve. The enclosure uses flame retardant (VO) materials and the front panel conforms to IP65 (NEMA 4).The instrument can beremoved from the panel without disturbing theconnections. Digital status inputs, serialcommunications, analogueoutput, transmitter supply, alarmrelays, transducer supply, are allavailable.

Selection Guide

Penny+Giles offers the widest choice of options to suit your application. Model DML220 and DML340 are available from stock DMP210
page 4 DMP220
page 4 4 digit indicatorUniversal input 4 digit indicatorDual alarm relaysUniversal input EMC The products detailed in this document have been tested to the requirements of EN50081-1 (Emissions) and EN50082-2 (Immunity). Quality Assurance Penny + Giles are accredited to BS EN ISO9001:2000Quality is at the heart of all our systems ensuring thereliability of our products from initial design to final despatch. Registered No. 924881

2
