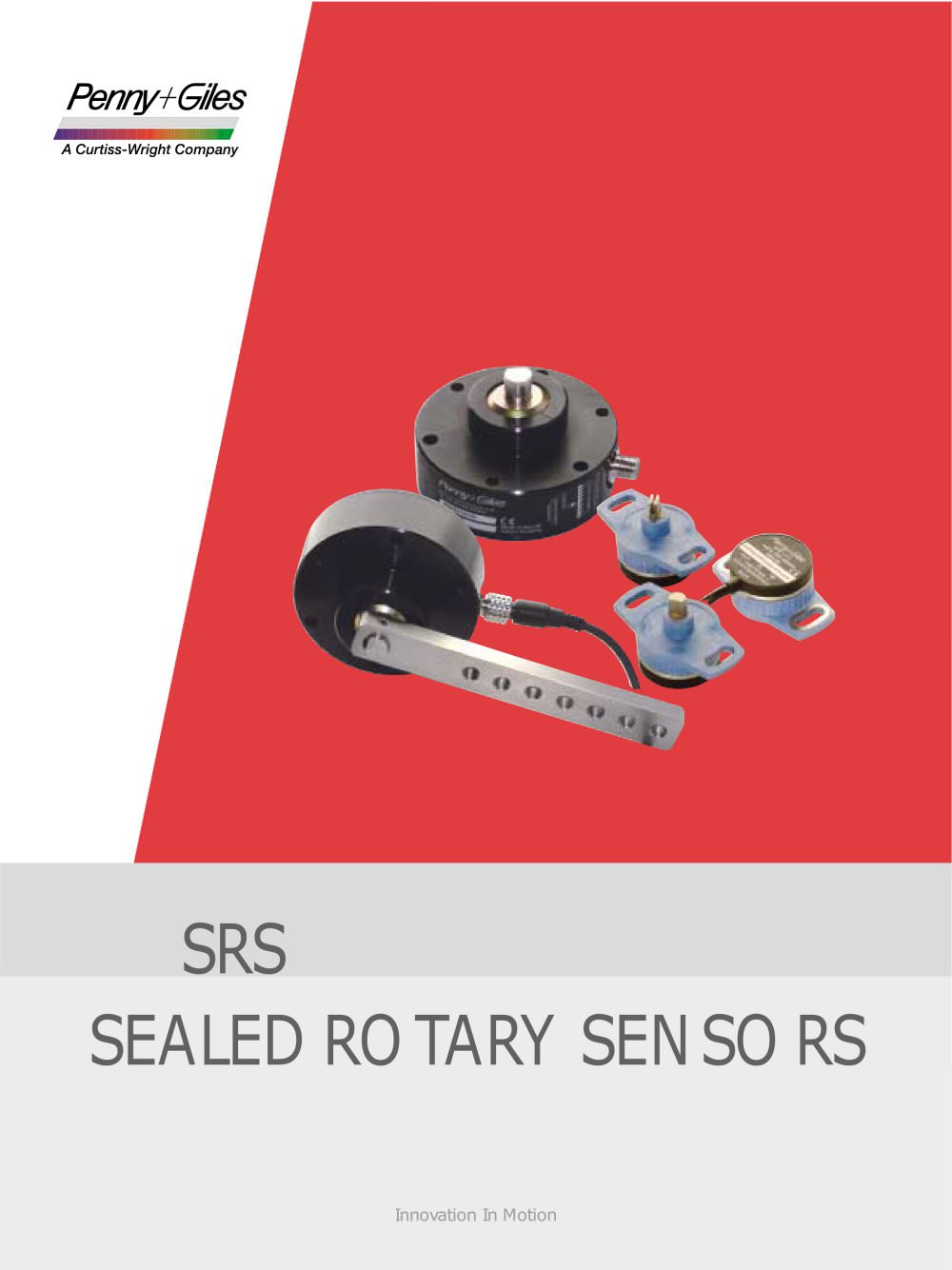

SRS Sealed Rotary Sensors

SRS Sealed Rotary Sensors
8Pages

Catalog excerpts

INNOVATION IN MOTION Penny+Giles SRS280 sealed rotary sensors and SRS880 submersible rotary sensors have been specially developed to provide maximum performance under extremes of temperature, humidity, vibration, shock and immersion. Hybrid track Penny+Giles proven long life hybrid potentiometer track technology (conductive plastic on wire), provides high stability under extremes of temperature and humidity, with virtually infinite resolution and a track life in excess of 50 million operations. With minimal hysteresis and electrical noise and a self-compensating effect for track wear, this...

Open the catalog to page 2

SRS280 sealed rotary sensor The SRS 280 sealed rotary sensor has been specially developed to meet the harsh requirements of today’s automotive, motorsport and industrial position sensing applications. Interchangeable with the popular 38mm fixing centres format, several innovative features are included to increase reliability and performance over similar devices already in service. Crush proof inserts The sensor housing is a high strength glass-filled engineering polymer that has the added feature of stainless steel inserts around the mounting screw area so preventing damage to the flange by...

Open the catalog to page 3

S R S 2 8 0 SEALED R OTA R Y S E N S O R PERFORMANCE ELECTRICAL Electrical angle ±2 ° Ω Resistance ±20% Hysteresis (repeatability) ° 10 to 350 in 10° increments 14.3 per degree < 0.03 < 1 degree (e.g. ±0.3% over 330°, ±1% over 100°) Accuracy Power dissipation at 20˚C W Applied voltage maximum Vdc 0.003 W per angular degree 0.2 per angular degree Resolution Virtually infinite Output smoothness To MIL-R-39023 grade C 0.1% Insulation resistance Greater than 100MΩ at 500Vdc Operating mode Voltage divider only - see Circuit Recommendation below Wiper circuit impedance Minimum of 100 x track...

Open the catalog to page 4

S R S 8 8 0 SUBMERSIBLE R OTA R Y S E N S O R PERFORMANCE ELECTRICAL Electrical angle ±2 ° Ω Resistance ±20% Hysteresis (repeatability) ° 10 to 350 in 10° increments 14.3 per degree Less than 0.03 < 1 degree (e.g. ±0.3% over 330°, ±1% over 100°) Accuracy Power dissipation at 20˚C W Applied voltage maximum Vdc 0.003 per angular degree 0.2 per angular degree Resolution Virtually infinite Output smoothness To MIL-R-39023 grade C 0.1% Insulation resistance Greater than 100MΩ at 500Vdc Operating mode Voltage divider only - see Circuit Recommendation below Wiper circuit impedance Minimum of 100 x...

Open the catalog to page 6

Doc Ref: SRS280/880 02/12 www.pennyandgiles.com Penny & Giles Position sensors, joysticks and solenoids for commercial and industrial applications. 15 Airfield Road Christchurch Dorset BH23 3TG United Kingdom +44 (0) 1202 409499 +44 (0) 1202 409475 Fax sales@pennyandgiles.com 36 Nine Mile Point Industrial Estate Cwmfelinfach Gwent NP11 7HZ United Kingdom +44 (0) 1495 202000 +44 (0) 1495 202006 Fax sales@pennyandgiles.com 665 North Baldwin Park Boulevard City of Industry, CA 91746 USA +1 626 480 2150 +1 626 369 6318 Fax us.sales@pennyandgiles.com Straussenlettenstr. 7b 85053 Ingolstadt,...
