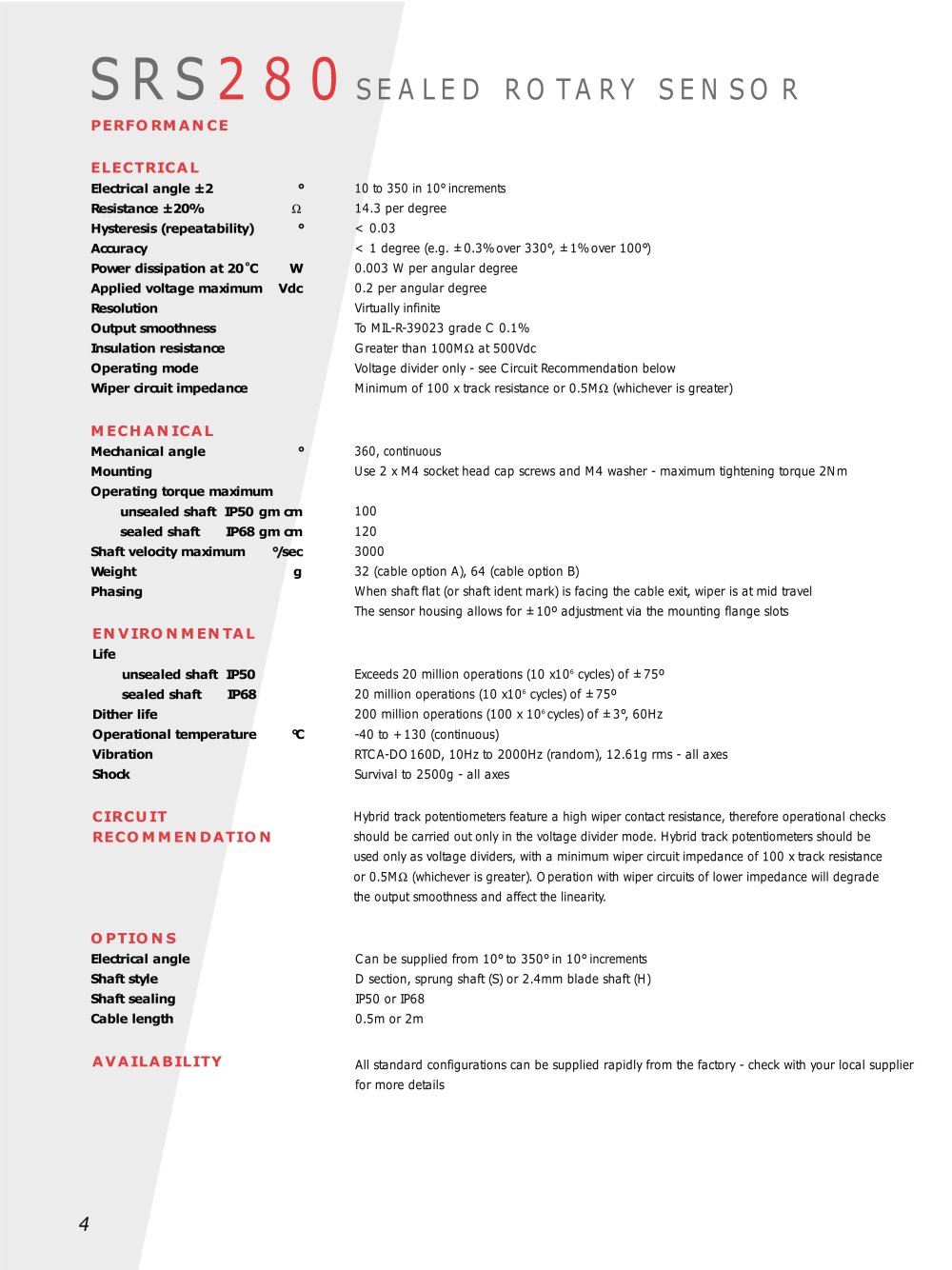

SRS 280

Ω at 500VdcVoltage divider only - see Circuit Recommendation below Minimum of 100 x track resistance or 0.5M Ω (whichever is greater)

SEALED ROTARY SENSOR

PERFORMANCEELECTRICAL

Electrical angle ±2°Resistance ±20% 10 to 350 in 10°increments Ω 14.3 per degree

MECHANICAL

Mechanical angle°Mounting Operating torque maximum unsealed shaft IP50gm cm sealed shaft IP68gm cmShaft velocity maximum °/sec Weightg Phasing 360, continuous Use 2 x M4 socket head cap screws and M4 washer - maximum tightening torque 2Nm100120 3000 32 (cable option A), 64 (cable option B) When shaft flat (or shaft ident mark) is facing the cable exit, wiper is at mid travel Exceeds 20 million operations (10 x10

ENVIRONMENTAL

Lifeunsealed shaft IP50 sealed shaft IP68Dither life Operational temperature°C Vibration Shock
6 cycles) of ±75º 20 million operations (10 x10
6 cycles) of ±75º200 million operations (100 x 10
6 cycles) of ±3°, 60Hz-40 to +130 (continuous) RTCA-DO160D, 10Hz to 2000Hz (random), 12.61g rms - all axes Survival to 2500g - all axes

CIRCUITRECOMMENDATION

Hybrid track potentiometers feature a high wiper contact resistance, therefore operational checks should be carried out only in the voltage divider mode. Hybrid track potentiometers should be used only as voltage dividers, with a minimum wiper circuit impedance of 100 x track resistance or 0.5M Ω (whichever is greater). Operation with wiper circuits of lower impedance will degradethe output smoothness and affect the linearity. Can be supplied from 10°to 350°in 10°

OPTIONS

Electrical angle Shaft style Shaft sealing Cable length increments D or sprung shaftIP50 or IP68 0.5m or 2m

AVAILABILITY

All configurations can be supplied within five days from the factory

4
