PGF8000 Series
4Pages

{{requestButtons}}

Catalog excerpts

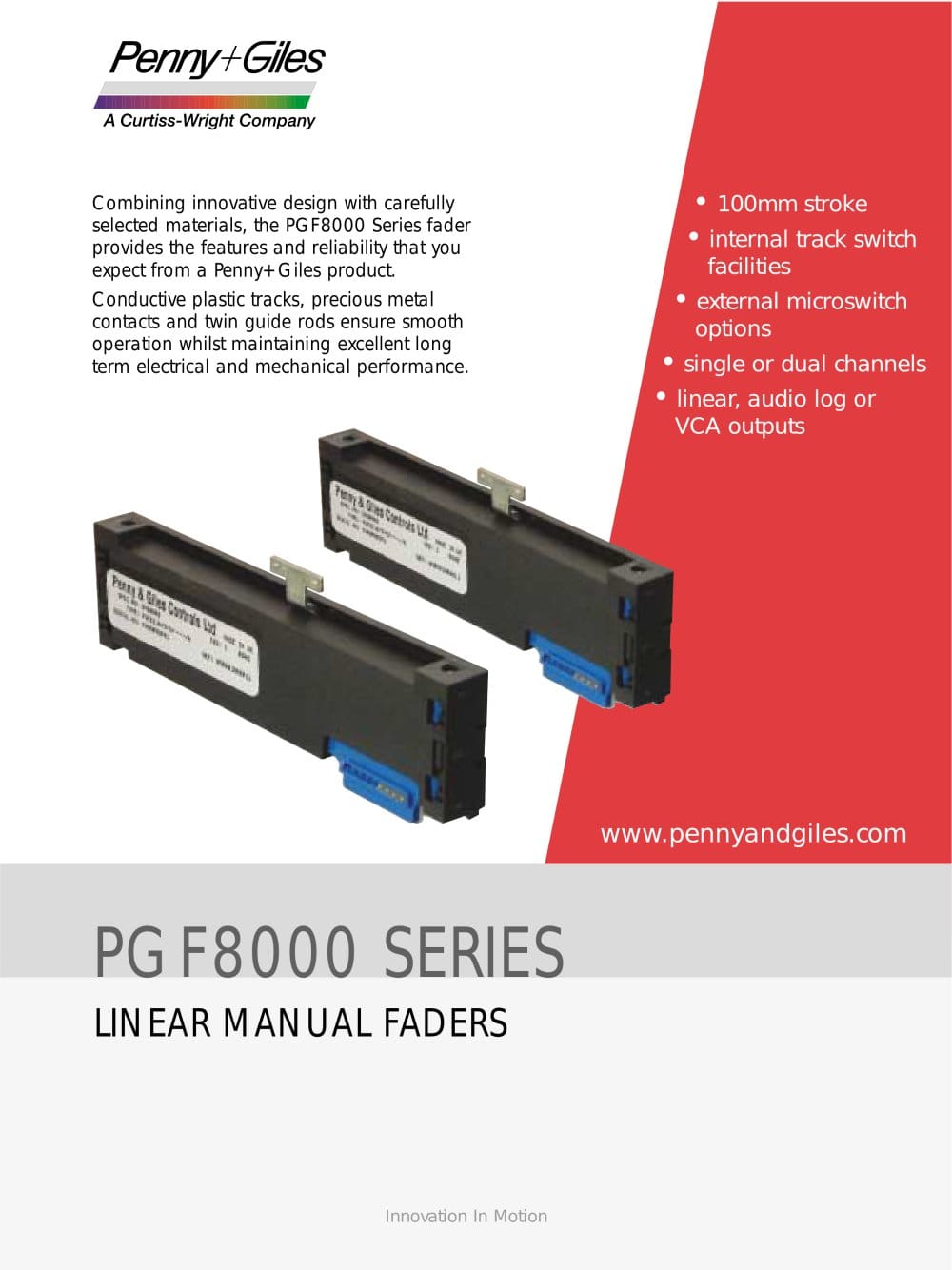

PGF8000 Series - 1

Combining innovative design with carefully selected materials, the PGF8000 Series fader provides the features and reliability that you expect from a Penny + Giles product. Conductive plastic tracks, precious metal contacts and twin guide rods ensure smooth operation whilst maintaining excellent long term electrical and mechanical performance. • internal track switch facilities • external microswitch options single or dual channels linear, audio log or VCA outputs

Open the catalog to page 1
PGF8000 Series - 2

linear manual fader SELECT THE FADER OPTIONS YOU REQUIRE Stroke length Output law Output channels Fader type Please enter the codes for your first three options. This will identify the fader data shown opposite. Resistance Mounting threads Safety warning 50Vdc maximum voltage The PGF8000 is designed for operation at voltages not exceeding 50Vdc SWITCH OPTIONS Pre-fade listen Fader start/Auxiliary An internal switch which operates before the active track is reached. This is at the infinity end of the fader and always under spring load. An internal track switch or external microswitch which...

Open the catalog to page 2
PGF8000 Series - 3

Log audio taper Maximum insertion loss 0.5dB - typical input related crosstalk 85dB Linear Maximum end volts 1.0% Matching accuracy for stereo option (relative to track 1) Matching accuracy (relative to track 1) ±1.0dB(0-40) Note: The ratio of fader resistance to wiper load should be 100:1 or higher. Test conditions • wiper load 100k^ log only • element resistance 10k^ • frequency for crosstalk and cut-off 15kHz • frequency for law accuracy 1kHz • insulation resistance 20M^ at 50Vdc PANEL GRADUATIONS/SLOTS CIRCUIT DIAGRAMS/TERMINATIONS Log audio taper Mounting hole position-see drawing...

Open the catalog to page 3
PGF8000 Series - 4

Penny & Giles Faders and controllers, position sensors, joysticks and solenoids for commercial and industrial applications. Quality Approvals Penny + Giles are accredited to BS EN ISO 9001:2008 Quality is at the heart of all our systems ensuring the reliability of our products from initial design to final despatch. Certificate No. LRQ 0924881 EMC Directive 2004/108/EEC The products detailed in this document are supplied as components for installation into an electrical apparatus or system. They are outside the scope of the EEC directive and will not be CE marked. The information contained...

Open the catalog to page 4
