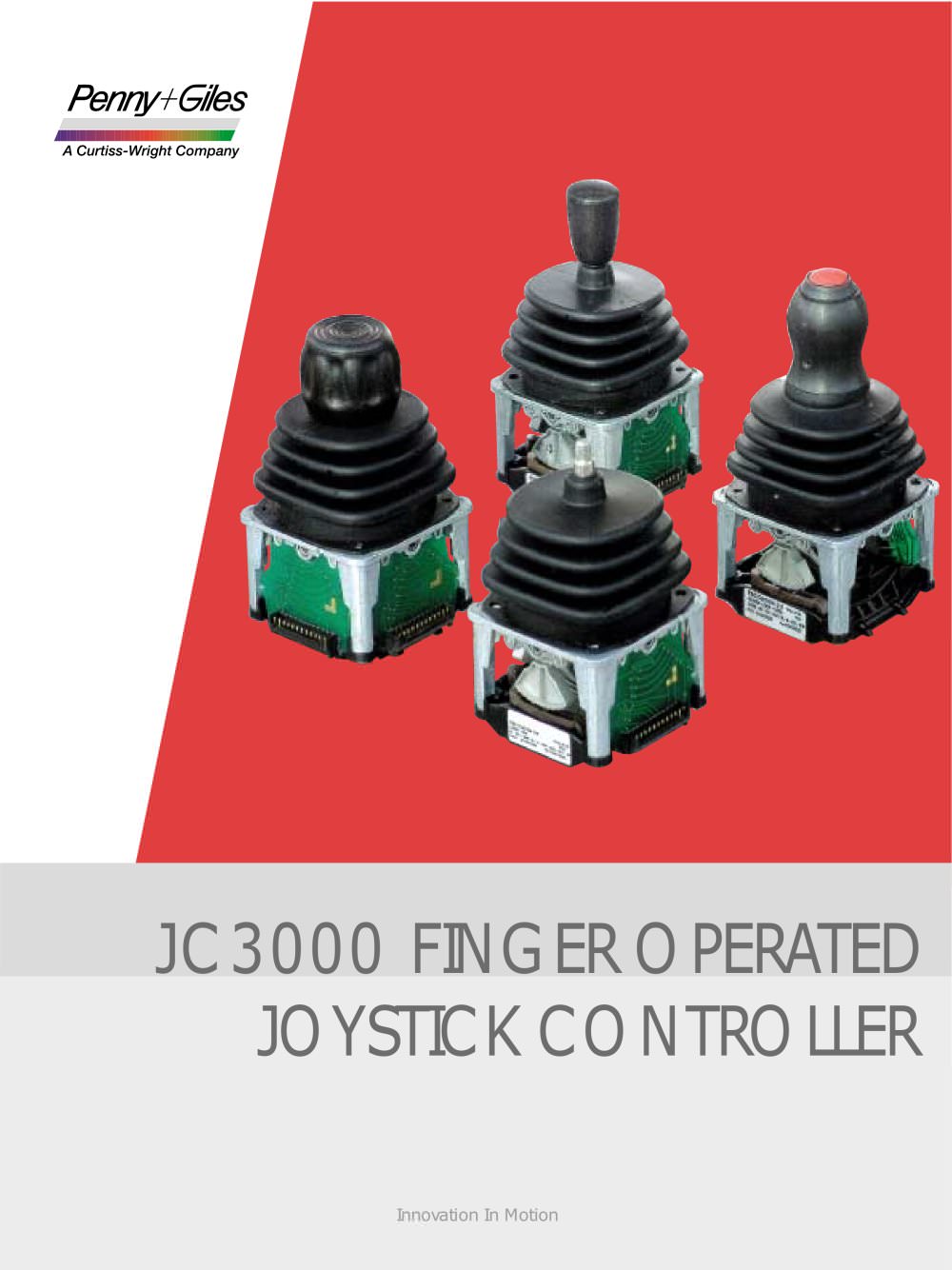

JC3000 FINGER OPERATED JOYSTICK CONTROLLER Innovation In Motion
Open the catalog to page 1The JC3000 joystick controller is designed for demanding applications in remote control chestpacks or auxiliary functions on industrial vehicles and other man-machine interfaces, where precise control, signal reliability, and compact size are important. The joystick is available with single or dual axis control, and can be specified with a choice of either long life potentiometer tracks, or switched output signals. Innovative design With a choice of potentiometer tracks that provide the analog signals proportional to lever movement or 3, 4 or 5 switched outputs per joystick half axis, the...
Open the catalog to page 2Potentiometric sensing Designed to interface with an electronic controller, the long-life potentiometer track generates analog outputs with switched reference signals that are proportional to the distance and direction over which the handle is moved. The analog output can be configured to provide signals for fault detection circuits, and a center tap provides an accurate voltage reference for the center position or a zero point for a bipolar supply voltage. The electrically independent switch operates with separate contacts each side of the joystick center position, in each available axis....
Open the catalog to page 3JC3000 PERFORMANCE MECHANICAL Lever breakout torque XY Nm Lever operating torque XY Nm Lever detent torque XY Nm Maximum allowable torque XY Nm Lever operating angle ° Lever action Lever gate profiles Detent angles ° Maximum Z axis torque Nm Expected life Weight g ENVIRONMENTAL Operating temperature ºC Storage temperature ºC Environmental protection above the flange ELECTRICAL Analog Track Resolution Track resistance (±20%) kÙ Track electrical angle ° Output voltage range % Center tap voltage (no load) % Center tap angle ° Supply voltage - maximum Vdc Output current – maximum mA Wiper...
Open the catalog to page 45 ANALOG TRACK DIAGRAM MULTI PIN CONNECTOR DIAGRAM All potentiometer track and directional/center/handle switch connections terminate in a 12-way Hirose DF3-12P-2DS(01) series connector on each joystick axis – a mating connector and flylead is available (one is required for each axis). The connectors used on the JC3000 joystick are gold plated, therefore the mating connectors should also be gold plated. SA310621 MK1 – Connector, terminals and 100mm long UL1007 wires – 28AWG (7/0.127mm) SA310621 MK2 – Connector, terminals and 300mm long UL1007 wires – 28AWG (7/0.127mm) Y-Axis Allocation...
Open the catalog to page 56 JC3000 PERFORMANCE MECHANICAL Lever breakout torque XY Nm Lever operating torque XY Nm Lever detent torque XY Nm Maximum allowable torque XY Nm Lever operating angle º Lever action Lever gate profiles Detent angles º Maximum Z axis torque Nm Expected life Weight g ENVIRONMENTAL Operating temperature ºC Storage temperature ºC Environmental protection above the flange ELECTRICAL Switch Track Number of switch positions Number of detents Switch angles ° Supply voltage - maximum Vdc Load current – maximum mA Insulation resistance S w i t c h - Center Off Switch operating angle ° Supply voltage...
Open the catalog to page 67 All switch track/center/handle switch connections terminate in a 12-way Hirose DF3-12P-2DS(01) series connector on each joystick axis – a mating connector & flylead is available (one is required for each axis). The connectors used on the JC3000 joystick are gold plated, therefore the mating connectors should also be gold plated. SA310621 MK1 – Connector, terminals and 100mm long UL1007 wires – 28AWG (7/0.127mm) SA310621 MK2 – Connector, terminals and 300mm long UL1007 wires – 28AWG (7/0.127mm) Y-Axis Allocation X-Axis Allocation Connector 12-way Harness Pin Number Wire Colour Switch track...
Open the catalog to page 78 JC3000 DIMENSIONS Note: drawings not to scale JOYSTICK CONTROLLER The joystick is designed to be fitted from below the mounting panel, through a 50.75/51.00mm diameter hole. The effectiveness of the joystick flange sealing is dependent on the panel mounting surface being sufficiently rigid to compress the sealing gaiter. The surface finish of the mounting panel is critical to achieving an adequate seal and rough surface finishes, paint chips, deep scratches, etc. should be avoided. Recommended panel thickness 3.5 to 6mm Recommended screw torque The JC3000 joystick requires 4 x M3 screws...
Open the catalog to page 89 JC3000 AXES GAT E Selecting the gate style and angle determines the track code for switched output and 2/3 of the final track code for analog output versions. TRAC K S - Analog output Final track code element * is determined by the gate/angle previously selected. TRAC K S - Switched output LEVER SPRING FORCE SEAT DETENTS INTERFACE HANDLE STYLE See pages 10-11 PERFORMANCE OPTIONS FEATURE CODE Single axis in Y direction only - Forward/Backward NY Single axis in X direction only - Right/Left XN Dual axis XY Single axis with ±31º lever range (Track code = P–5 or SW5) 131 Single axis with ±25º...
Open the catalog to page 910 JC3000 NHP No handle, plain lever NHT No handle, M5 threaded lever K10 This handle option is a simple tapered style with no switch functions, allowing simple fingertip control. B00 This handle option is a spherical ball style with no switch functions, allowing simple ‘finger and thumb’ control The handle has a recessed diametral groove on the circumference to aid grip. JOYSTICK CONTROLLER HANDLE OPTIONS NHP NHT K10 B00 ø18.0 67.80 max ø31.95 72.90 max HL0 ø32.00 59.20 max HL0 This handle option is a low profile, fluted style that has a maximum 59.2mm height above the mounting panel. This...
Open the catalog to page 1011 ZCS ø23.00 Press to activate switch 76.00 max ZC1 ø26,1 External switch 73.80 max PERFORMANCE ZC1 ZCS Maximum height above flange mm 73.8 76 Maximum diameter mm 26.1 23 Environmental sealing (IEC 60529) IP65 IP66 Number of switches 1 1 Action Momentary button Momentary handle depress Switch operating force N 3 7 Maximum current mA 200 @ 50Vdc 100 @ 30Vdc Expected electrical life operations 1 million 500,000 ZC1 or ZCS HANDLE OPTION A switch function can be incorporated by using the ZC1 external button switch or the ZCS internal switch to verify the change in signals from the joystick....
