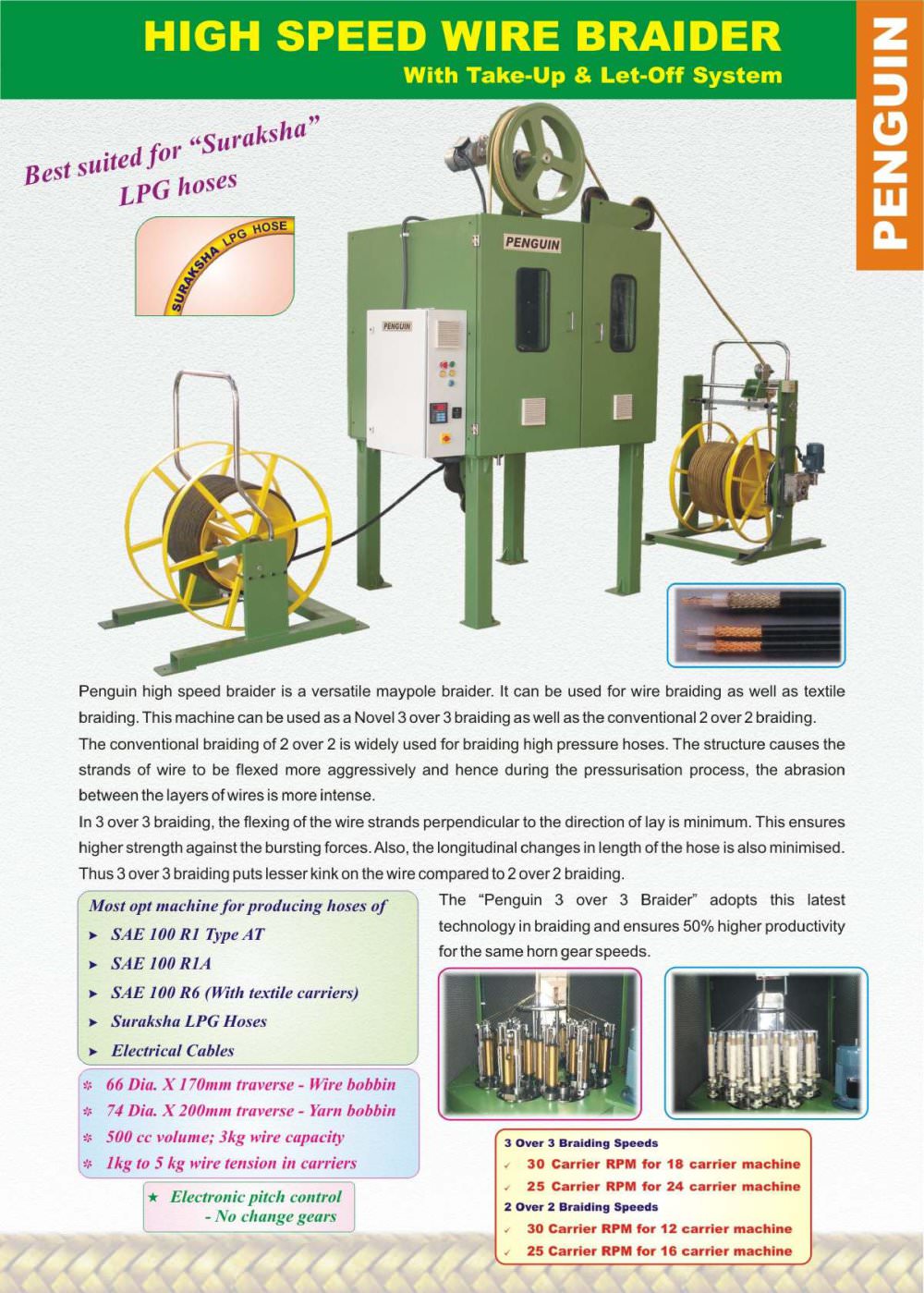

| HIGH SPEED WIRE BRAIDER j 2 With Take-Up & Let-Off System ■ | |||||||||||||||||
| Bc ffG hoses | |||||||||||||||||
| The conventional braiding of 2 over 2 is widely used for braiding high pressure hoses. The structure causes the strands of wire to be flexed more aggressively and hence during the pressurisation process, the abrasion between the layers of wires is more intense. In 3 over 3 braiding, the flexing of the wire strands perpendicular to the direction of lay is minimum. This ensures higher strength against the bursting forces. Also, the longitudinal changes in length of the hose is also minimised. Thus 3 over 3 braiding puts lesser kink on the wire compared to 2 over 2 braiding. The "Penguin 3 over 3 Braider" adopts this latest technology in braiding and ensures 50% higher productivity for the same horn gear speeds. | |||||||||||||||||
| ✓ 6" Carrier RPMfor IX carrier machine * 50 Carrier RPM fur 24 carrier machine | |||||||||||||||||
| m> | |||||||||||||||||
| Most opt machine for producing hoses of > SAE 100 RI Type AT > SAE 100 RI A > SAE 100 R6 (Itlth textile carriers) > Snraksha I.PCHoses > Electrical Cables | |||||||||||||||||
| s 66 Din. X I "Omm traverse - hobbin size 9 SOU cc volume; Skg Hire capacity-it lift to 5 kg Hire tension in carriers | |||||||||||||||||
| # Electronic pitch control - .Vtf change gears | |||||||||||||||||
