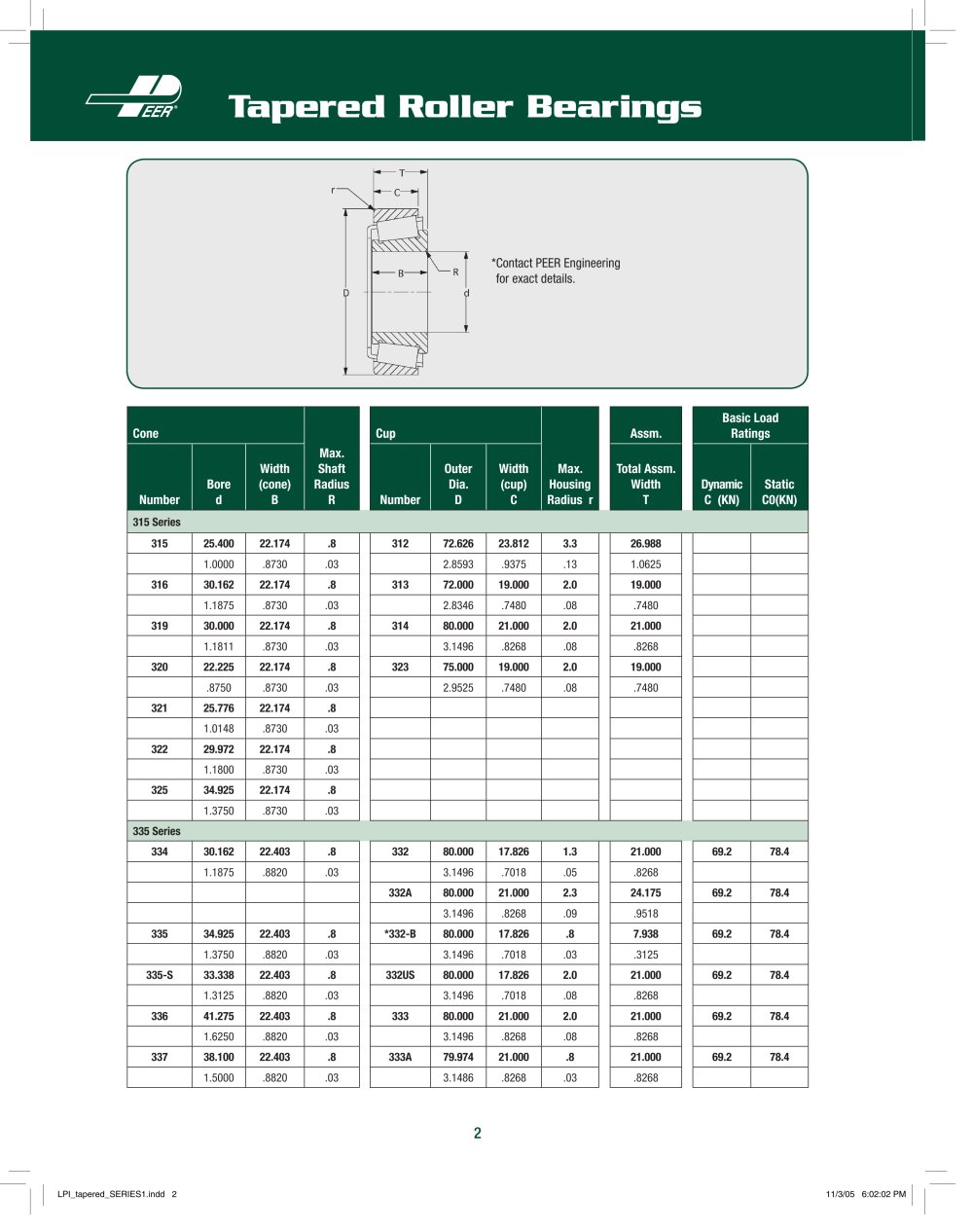

^r££/r Tap

Roller Bearings


Cone				Cup				Assm.	Basic Load Ratings
Number	Bore d	Width (cone) B	Max. Shaft Radius R	Number	Outer Dia. D	Width (cup) C	Max. Housing Radius r	Total Assm. Width T	Dynamic C (KN)	Static C0(KN)
315 Series
315	25.400	22.174	.8	312	72.626	23.812	3.3	26.988
	1.0000	.8730	.03		2.8593	.9375	.13	1.0625
316	30.162	22.174	.8	313	72.000	19.000	2.0	19.000
	1.1875	.8730	.03		2.8346	.7480	.08	.7480
319	30.000	22.174	.8	314	80.000	21.000	2.0	21.000
	1.1811	.8730	.03		3.1496	.8268	.08	.8268
320	22.225	22.174	.8	323	75.000	19.000	2.0	19.000
	.8750	.8730	.03		2.9525	.7480	.08	.7480
321	25.776	22.174	.8
	1.0148	.8730	.03
322	29.972	22.174	.8
	1.1800	.8730	.03
325	34.925	22.174	.8
	1.3750	.8730	.03
335 Series
334	30.162	22.403	.8	332	80.000	17.826	1.3	21.000	69.2	78.4
	1.1875	.8820	.03		3.1496	.7018	.05	.8268
				332A	80.000	21.000	2.3	24.175	69.2	78.4
					3.1496	.8268	.09	.9518
335	34.925	22.403	.8	*332-B	80.000	17.826	.8	7.938	69.2	78.4
	1.3750	.8820	.03		3.1496	.7018	.03	.3125
335-S	33.338	22.403	.8	332US	80.000	17.826	2.0	21.000	69.2	78.4
	1.3125	.8820	.03		3.1496	.7018	.08	.8268
336	41.275	22.403	.8	333	80.000	21.000	2.0	21.000	69.2	78.4
	1.6250	.8820	.03		3.1496	.8268	.08	.8268
337	38.100	22.403	.8	333A	79.974	21.000	.8	21.000	69.2	78.4
	1.5000	.8820	.03		3.1486	.8268	.03	.8268

LPI_tapered_SERIES1.indd 2 11/3/05 6:02:02 PM
