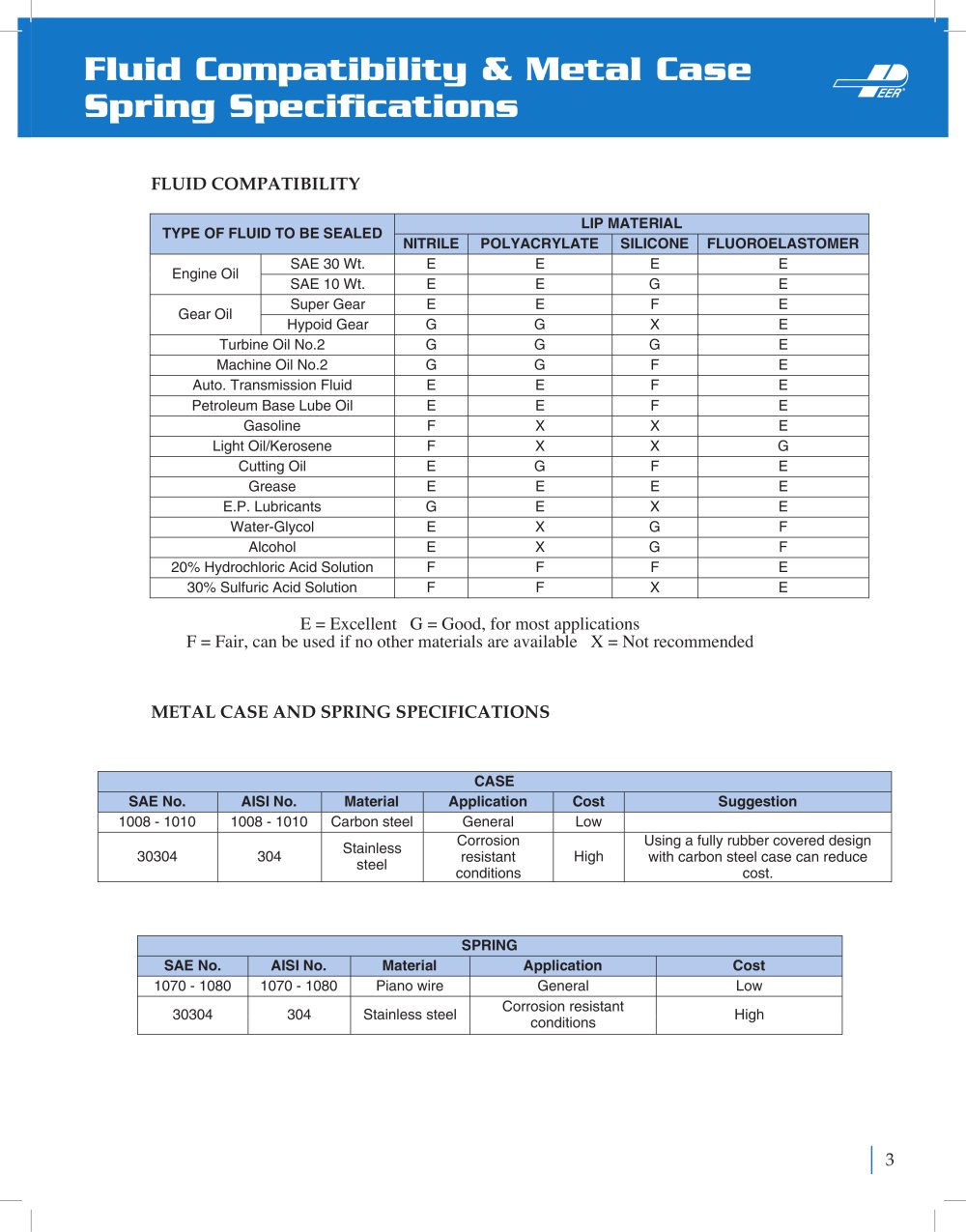

ompatibilrty & Metal Case pring Specifications
FLUID COMPATIBILITY
TYPE OF FLUID TO BE SEALED
LIP MATERIAL
NITRILE
POLYACRYLATE
SILICONE
FLUOROELASTOMER
Engine Oil
SAE 30 Wt.
E
E
E
E
SAE 10Wt.
E
E
G
E
Gear Oil
Super Gear
E
E
F
E
Hypoid Gear
G
G
X
E
Turbine Oil No.2
G
G
G
E
Machine Oil No.2
G
G
F
E
Auto. Transmission Fluid
E
E
F
E
Petroleum Base Lube Oil
E
E
F
E
Gasoline
F
X
X
E
Light Oil/Kerosene
F
X
X
G
Cutting Oil
E
G
F
E
Grease
E
E
E
E
E.P. Lubricants
G
E
X
E
Water-Glycol
E
X
G
F
Alcohol
E
X
G
F
20% Hydrochloric Acid Solution
F
F
F
E
30% Sulfuric Acid Solution
F
F
X
E
E = Excellent G = Good, for most applications F = Fair, can be used if no other materials are available X = Not recommended
METAL CASE AND SPRING SPECIFICATIONS
CASE
SAE No.
AISI No.
Material
Application
Cost
Suggestion
1008 - 1010
1008 - 1010
Carbon steel
General
Low
30304
304
Stainless steel
Corrosion resistant conditions
High
Using a fully rubber covered design with carbon steel case can reduce cost.
SPRING
SAE No.
AISI No.
Material
Application
Cost
1070 - 1080
1070 - 1080
Piano wire
General
Low
30304
304
Stainless steel
Corrosion resistant conditions
High
