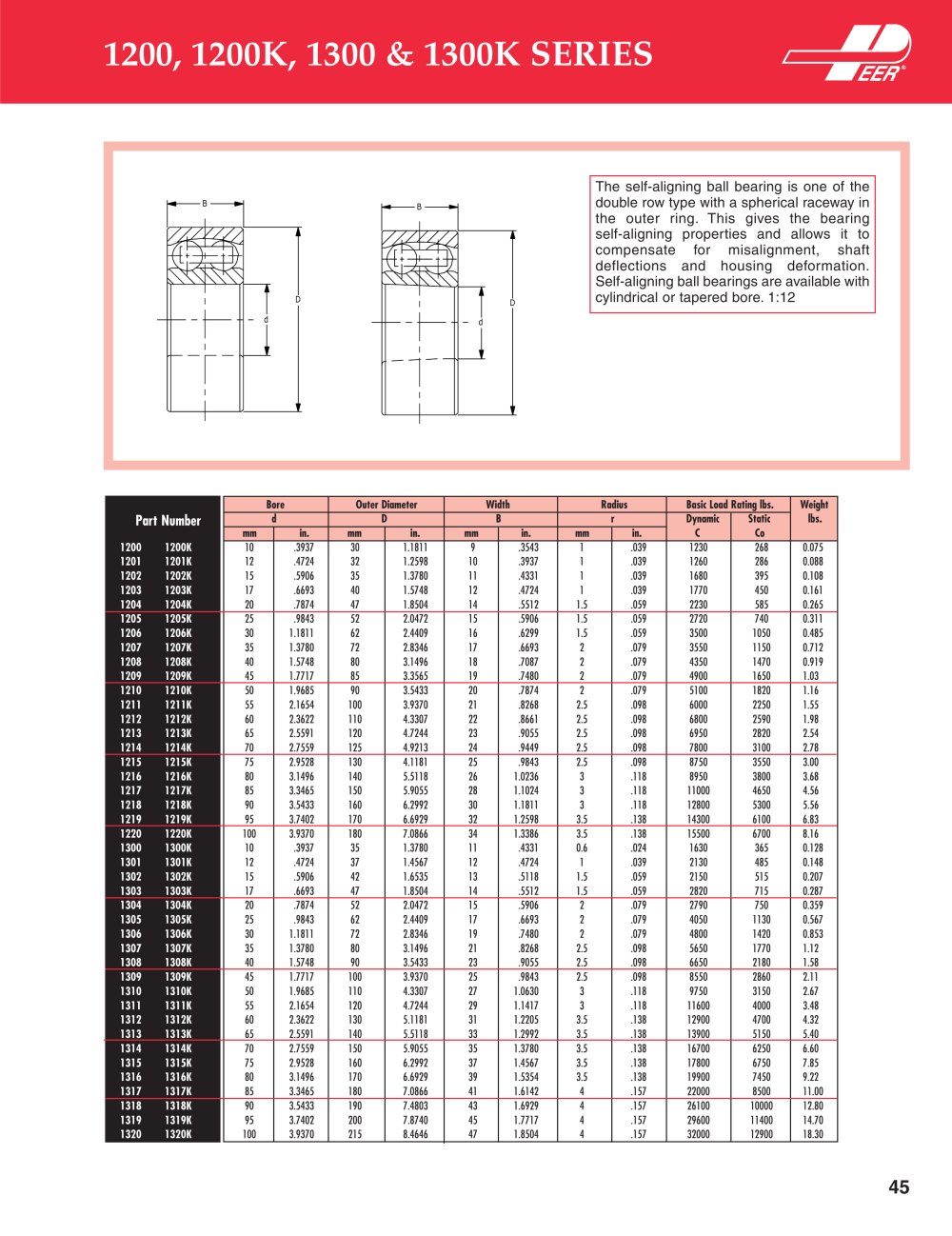

1200, 1200K, 1300 & 1300K SERIES _m

The self-aligning ball bearing is one of the double row type with a spherical raceway in the outer ring. This gives the bearing self-aligning properties and allows it to compensate for misalignment, shaft deflections and housing deformation. Self-aligning ball bearings are available with cylindrical or tapered bore. 1:12


	Bore	Outer Diameter \|		Width		Radius		Basic Load Rating lbs.		Weight
	d		D	B		r		Dynamic	Static	lbs.
mm	in.	mm	in.	mm	in.	mm	in.	C	Co
10	.3937	30	1.1811	9	.3543	1	.039	1230	268	0.075
12	.4724	32	1.2598	10	.3937	1	.039	1260	286	0.088
15	.5906	35	1.3780	11	.4331	1	.039	1680	395	0.108
17	.6693	40	1.5748	12	.4724	1	.039	1770	450	0.161
20	.7874	47	1.8504	14	.5512	1.5	.059	2230	585	0.265
25	.9843	52	2.0472	15	.5906	1.5	.059	2720	740	0.311
30	1.1811	62	2.4409	16	.6299	1.5	.059	3500	1050	0.485
35	1.3780	72	2.8346	17	.6693	2	.079	3550	1150	0.712
40	1.5748	80	3.1496	18	.7087	2	.079	4350	1470	0.919
45	1.7717	85	3.3565	19	.7480	2	.079	4900	1650	1.03
50	1.9685	90	3.5433	20	.7874	2	.079	5100	1820	1.16
55	2.1654	100	3.9370	21	.8268	2.5	.098	6000	2250	1.55
60	2.3622	110	4.3307	22	.8661	2.5	.098	6800	2590	1.98
65	2.5591	120	4.7244	23	.9055	2.5	.098	6950	2820	2.54
70	2.7559	125	4.9213	24	.9449	2.5	.098	7800	3100	2.78
75	2.9528	130	4.1181	25	.9843	2.5	.098	8750	3550	3.00
80	3.1496	140	5.5118	26	1.0236	3	.118	8950	3800	3.68
85	3.3465	150	5.9055	28	1.1024	3	.118	11000	4650	4.56
90	3.5433	160	6.2992	30	1.1811	3	.118	12800	5300	5.56
95	3.7402	170	6.6929	32	1.2598	3.5	.138	14300	6100	6.83
100	3.9370	180	7.0866	34	1.3386	3.5	.138	15500	6700	8.16
10	.3937	35	1.3780	11	.4331	0.6	.024	1630	365	0.128
12	.4724	37	1.4567	12	.4724	1	.039	2130	485	0.148
15	.5906	42	1.6535	13	.5118	1.5	.059	2150	515	0.207
17	.6693	47	1.8504	14	.5512	1.5	.059	2820	715	0.287
20	.7874	52	2.0472	15	.5906	2	.079	2790	750	0.359
25	.9843	62	2.4409	17	.6693	2	.079	4050	1130	0.567
30	1.1811	72	2.8346	19	.7480	2	.079	4800	1420	0.853
35	1.3780	80	3.1496	21	.8268	2.5	.098	5650	1770	1.12
40	1.5748	90	3.5433	23	.9055	2.5	.098	6650	2180	1.58
45	1.7717	100	3.9370	25	.9843	2.5	.098	8550	2860	2.11
50	1.9685	110	4.3307	27	1.0630	3	.118	9750	3150	2.67
55	2.1654	120	4.7244	29	1.1417	3	.118	11600	4000	3.48
60	2.3622	130	5.1181	31	1.2205	3.5	.138	12900	4700	4.32
65	2.5591	140	5.5118	33	1.2992	3.5	.138	13900	5150	5.40
70	2.7559	150	5.9055	35	1.3780	3.5	.138	16700	6250	6.60
75	2.9528	160	6.2992	37	1.4567	3.5	.138	17800	6750	7.85
80	3.1496	170	6.6929	39	1.5354	3.5	.138	19900	7450	9.22
85	3.3465	180	7.0866	41	1.6142	4	.157	22000	8500	11.00
90	3.5433	190	7.4803	43	1.6929	4	.157	26100	10000	12.80
95	3.7402	200	7.8740	45	1.7717	4	.157	29600	11400	14.70
100	3.9370	215	8.4646	47	1.8504	4	.157	32000	12900	18.30

Part Number

1200K 1201K 1202K 1203K 1204K

1200 1201 1202 1203

1204

318 1318

319 1319

320 1320
