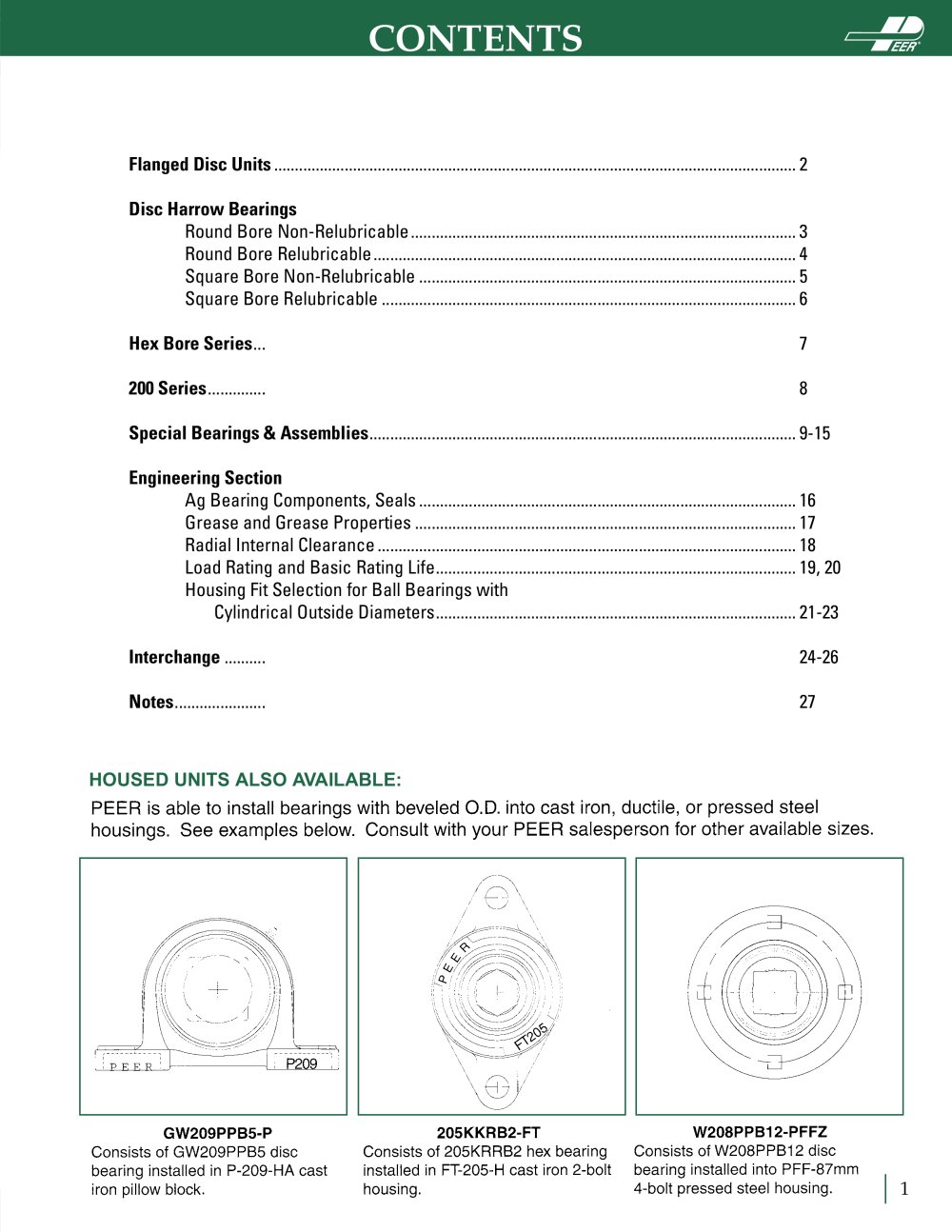

| CONTENTS | ||||||||||||||||||||
| Flanged Disc Units..............................................................................................................................2 Disc Harrow Bearings Round Bore Non-Relubricable.............................................................................................3 Round Bore Relubricable......................................................................................................4 Square Bore Non-Relubricable...........................................................................................5 Square Bore Relubricable....................................................................................................6 Hex Bore Series... 7 200 Series.............. 8 Special Bearings&Assemblies.......................................................................................................9-15 Engineering Section Ag Bearing Components, Seals...........................................................................................16 Grease and Grease Properties............................................................................................17 Radial Internal Clearance.....................................................................................................18 Load Rating and Basic Rating Life.......................................................................................19,20 Housing Fit Selection for Ball Bearings with Cylindrical Outside Diameters.......................................................................................21-23 Interchange.......... 24-26 Notes...................... 27 | ||||||||||||||||||||
| HOUSED UNITS ALSO AVAILABLE: PEER is able to install bearings with beveled O.D. into cast iron, ductile, or pressed steel housings. See examples below. Consult with your PEER salesperson for other available sizes. | ||||||||||||||||||||
| <0 | ||||||||||||||||||||
| 0 | ||||||||||||||||||||
| W208PPB12-PFFZ Consists of W208PPB12 disc bearing installed into PFF-87mm 4-bolt pressed steel housing. | ||||||||||||||||||||
| 205KKRB2-FT Consists of 205KRRB2 hex bearing installed in FT-205-H cast iron 2-bolt housing. | ||||||||||||||||||||
| GW209PPB5-P Consists of GW209PPB5 disc bearing installed in P-209-HA cast iron pillow block. | ||||||||||||||||||||
