WELL CAMERA - 3 Pages

  1. P. 1

  2. P. 2

  3. P. 3

Catalogue excerpts

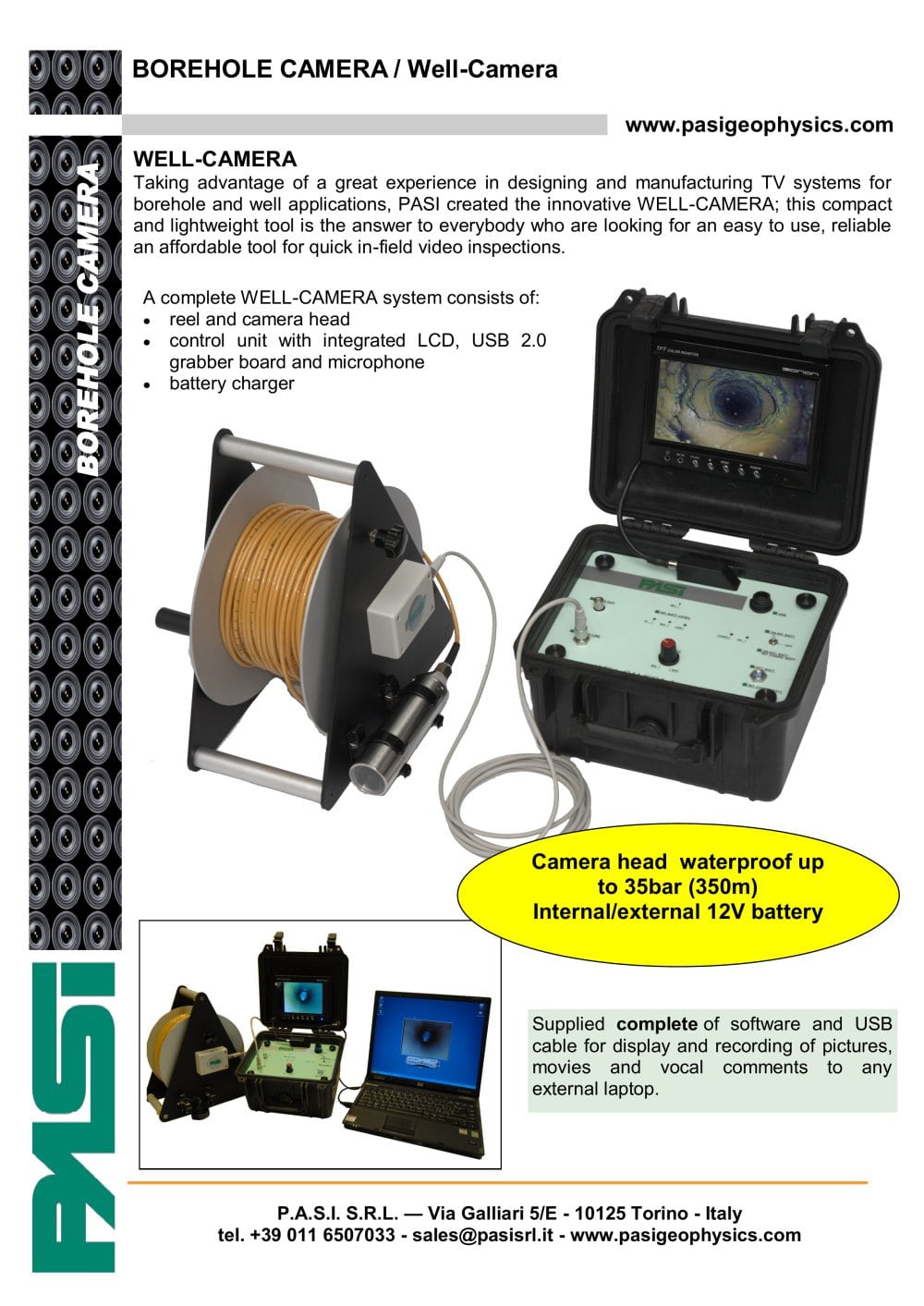

BOREHOLE CAMERA / Well-Camera BOREHOLE CAMERA www.pasigeophysics.com WELL-CAMERA Taking advantage of a great experience in designing and manufacturing TV systems for borehole and well applications, PASI created the innovative WELL-CAMERA; this compact and lightweight tool is the answer to everybody who are looking for an easy to use, reliable an affordable tool for quick in-field video inspections. A complete WELL-CAMERA system consists of: reel and camera head control unit with integrated LCD, USB 2.0 grabber board and microphone battery charger Camera head waterproof up to 35bar (350m) Internal/external 12V battery Supplied complete of software and USB cable for display and recording of pictures, movies and vocal comments to any external laptop. P.A.S.I. S.R.L. — Via Galliari 5/E - 10125 Torino - Italy tel. +39 011 6507033 - sales@pasisrl.it - www.pasigeophysics.com

 Open the catalogue to page 1

BOREHOLE CAMERA / Well-Camera BOREHOLE CAMERA www.pasigeophysics.com TECHNICAL SPECIFICATIONS WELL-CAMERA Camera Head Diameter Sensor type Minimum intensity required Light type 6x high intensity leds Waterproof protection Monitor Display Wide Screen Image rotation Control Unit Power supply internal or external 12V battery, for up to 6 hours of field use. Digital output integrated USB 2.0 audio/video grabber board + microphone for saving movies and vocal comments directly to any external PC Analog video output MOD. WELL-CAMERA.1 borehole TV camera with 50m cable MOD. WELL-CAMERA.1 borehole TV camera...

 Open the catalogue to page 2

BOREHOLE CAMERA / Well-Camera Accessories BOREHOLE CAMERA www.pasigeophysics.com Transit cases for Well-Camera reel: TEL-VAL-000: for 50m & 100m reels Dim. 34cm x 40cm x 33cm - Weight: 6,5 kg TEL-VAL-001: for 150m & 200m reels Dim. 41cm x 40cm x 33cm - Weight : 7,3 kg TEL-VAL-002: for 300m reel Dim. 52cm x 43cm x 33cm - Weight: 9 kg TEL-VAL-003: for 400m & 500m reels Dim. 57cm x 43cm x 33cm - Weight: 10,4 kg ASPO 50: with 50m of fiberglass cable & Teflon adaptor for Well-Camera Head Aspo dim: 51cm x 62cm x 22 cm - Weight: 5,55 kg Teflon adaptor: Ø 4,2 cm x 12 cm TEL-902-000: Adjustable stainless...

 Open the catalogue to page 3
