NEW ELECTRICAL IMAGING SYSTEM IN ALTERNATE CURRENT MOD. POLARES - P.A.S.I. - #2

Text version of the page

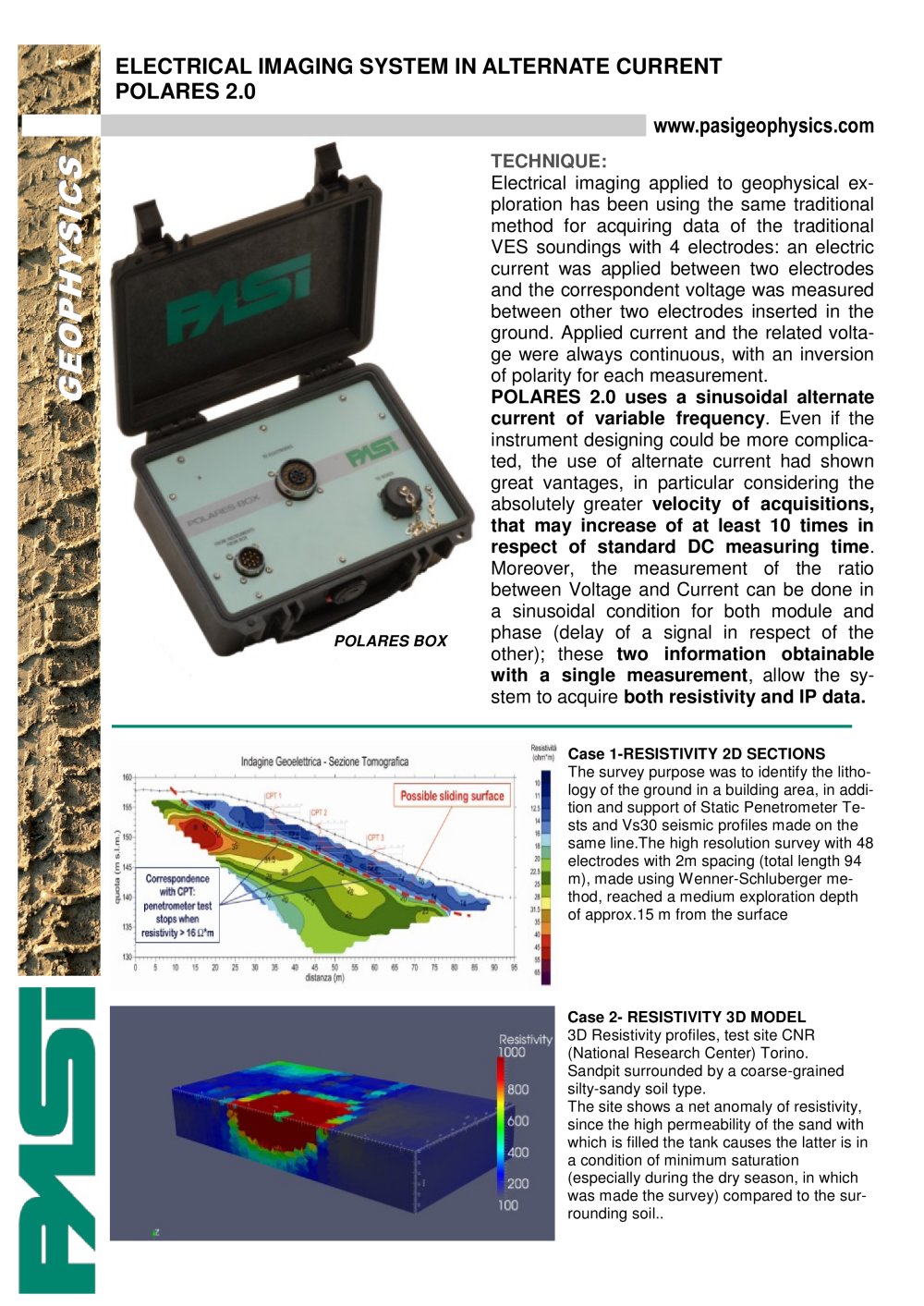

for additional technical or commercial questions pls. e-mail to sales@pasisrl.it PRELIMINARY With the recent great progresses in electronics was first possible to design an automatic “multiplexer” to commute signals on the different electrodes, so that both Current and Voltage measurement could be done by a single unit with microprocessor controlled sequence of measurements. In the same instrument you have both the control&measuring system and the power system ; only the commutation system is external for a mor flexibility in using. The new POLARES is lighter, smaller, faster and more reliable in respect to the former generation of electrical imaging systems. Thanks to an intuitive user interface - realised through a high quality LCD touch screen - all operations can be controlled without a mouse or a keyboard. With its very low consuming embedded system (that doesn’t require cooling fans or traditional HD) and the “open source” operating system the User can appreciate a greater authonomy and a greater reliablity of the instrument. Several external devices can be connected through the USB port: USB dongles, network interfaces, WiFi, Bluetooth, GPS antennas, keyboards, etc... Moreover, the use of a non-conventional PC extends working conditions to wide environmental humidity and temperature ranges. CPU Arm 9 32 bit Operating System Linux Display QVGA 5.7” with LED backlight Touch Screen 5-wire, resistive Data Storage Flash Solid State Memory (> 200.000 measurements) External Output Port USB host 1.1 I/O connection USB dongle I/O optional connections Ethernet, Wi-Fi, Bluetooth, RS232, RS485, USB client, GPS DSP Freescale (Motorola) 120 MIPS Converters A/D 16 bit SAR and D/A at 16 bits Voltage Measuring Ranges 300V, 30V, 3V Current Measuring Ranges 3A, 300mA, 30mA Available Frequencies 66.7 Hz, 16.7 Hz, 4.16 Hz, 1.04 Hz Quality measurement tests Continuous Component, distortion, background noise, phase in excess, sigma module, sigma phase Max. number of electrodes Illimitated Max. Voltage 750 Vpp Max. Current 2A Max. Power 200 W Thermal protection Dissipator and case interior, alarms and system block Power Supply Lead or Lithium battery, 8.5V= / 15V=, internal fuse 30A, protection against inversion of polarity Operating temperature From -20°C to 60°C external environmental temperature Physicals 410x300x170mm, Kg 6 Technical Features POLARES-BOX
