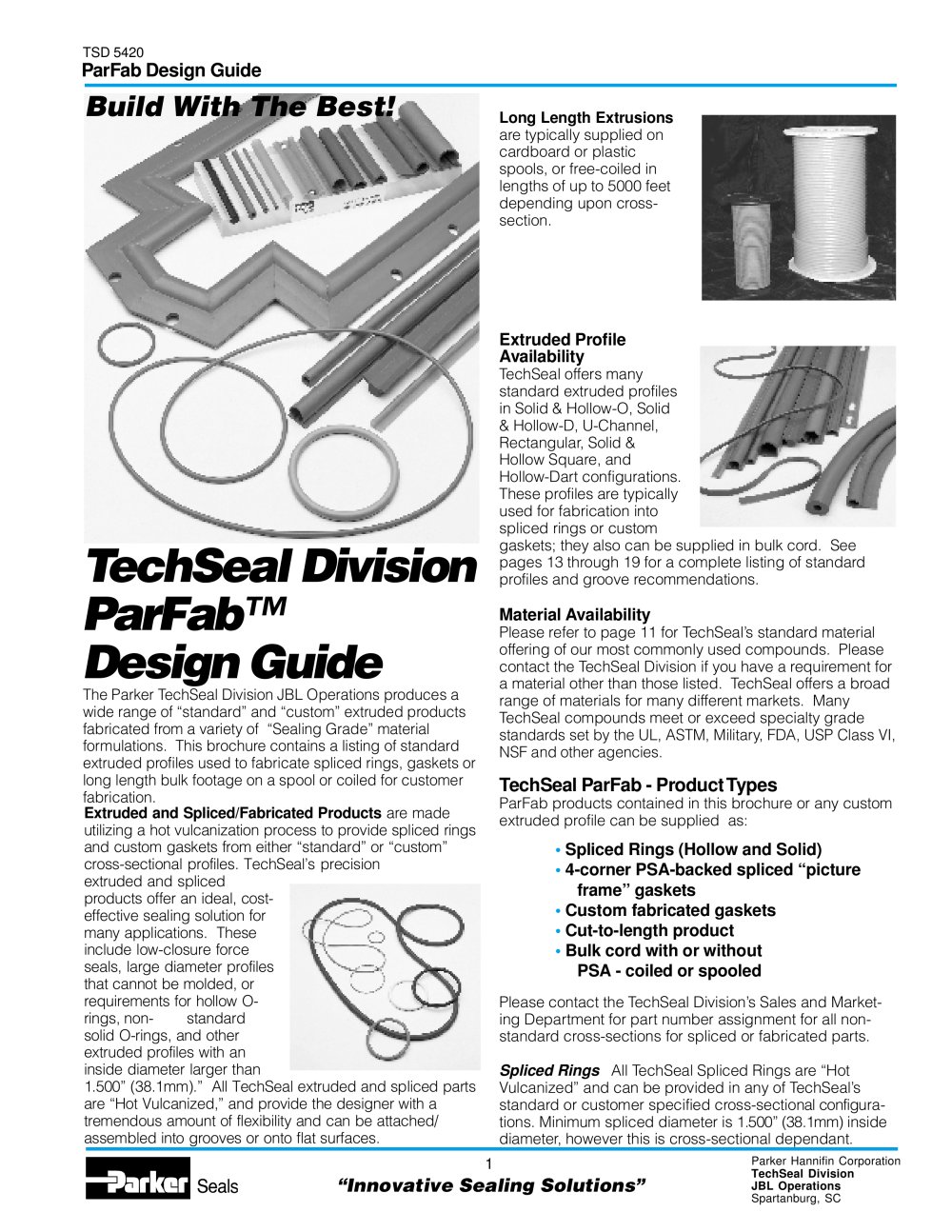

TSD 5420

ParFab Design Guide

Build With The Best!

are typically supplied oncardboard or plasticspools, or free-coiled in lengths of up to 5000 feetdepending upon cross-section. Long Length Extrusions

Extruded ProfileAvailability

TechSeal offers manystandard extruded profilesin Solid & Hollow-O, Solid& Hollow-D, U-Channel, Rectangular, Solid &Hollow Square, andHollow-Dart configurations. These profiles are typicallyused for fabrication intospliced rings or custom gaskets; they also can be supplied in bulk cord. Seepages 13 through 19 for a complete listing of standardprofiles and groove recommendations.

ParFab Design Guide - 14828 TechSeal Division ParFab™Design Guide

Material Availability

Please refer to page 11 for TechSeal’s standard material offering of our most commonly used compounds. Please contact the TechSeal Division if you have a requirement fora material other than those listed. TechSeal offers a broadrange of materials for many different markets. Many TechSeal compounds meet or exceed specialty grade The Parker TechSeal Division JBL Operations produces awide range of “standard” and “custom” extruded products fabricated from a variety of “Sealing Grade” materialformulations. This brochure contains a listing of standardextruded profiles used to fabricate spliced rings, gaskets or long length bulk footage on a spool or coiled for customerfabrication standards set by the UL, ASTM, Military, FDA, USP Class VI, NSF and other agencies. .

TechSeal ParFab - Product Types

Extruded and Spliced/Fabricated Products are madeutilizing a hot vulcanization process to provide spliced ringsand custom gaskets from either “standard” or “custom”cross-sectional profiles. TechSeal’s precision extruded and splicedproducts offer an ideal, cost-effective sealing solution for many applications. Theseinclude low-closure forceseals, large diameter profiles that cannot be molded, orrequirements for hollow O-rings, non- standard solid O-rings, and otherextruded profiles with aninside diameter larger than 1.500” (38.1mm).” All TechSeal extruded and spliced partsare “Hot Vulcanized,” and provide the designer with atremendous amount of flexibility and can be attached/ assembled into grooves or onto flat surfaces. ParFab products contained in this brochure or any custom extruded profile can be supplied as:

• Spliced Rings (Hollow and Solid) ? 4-corner PSA-backed spliced “picture frame” gaskets ? Custom fabricated gaskets ? Cut-to-length product ? Bulk cord with or without PSA - coiled or spooled

Please contact the TechSeal Division’s Sales and Market-ing Department for part number assignment for all non-standard cross-sections for spliced or fabricated parts. Spliced Rings All TechSeal Spliced Rings are “HotVulcanized” and can be provided in any of TechSeal’sstandard or customer specified cross-sectional configura-tions. Minimum spliced diameter is 1.500” (38.1mm) insidediameter, however this is cross-sectional dependant. 1
Parker Hannifin Corporation TechSeal DivisionJBL Operations

“Innovative Sealing Solutions”

Spartanburg, SC
