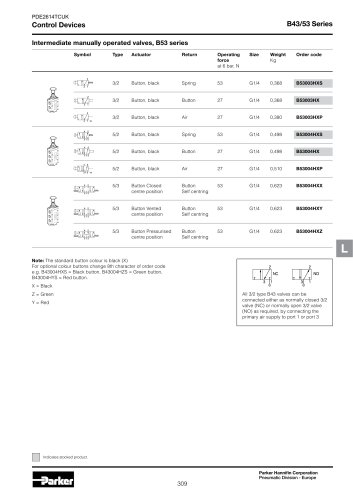

Intermediate manually operated valves, B53 series
Symbol
Type Actuator
Return
Operating
Size
force
at 6 bar, N
Weight
Kg
Order code
3/2
Button, black
Spring
53
G1/4
0,368
B53003HXS
3/2
Button, black
Button
27
G1/4
0,368
B53003HX
3/2
Button, black
Air
27
G1/4
0,380
B53003HXP
5/2
Button, black
Spring
53
G1/4
0,498
B53004HXS
5/2
Button, black
Button
27
G1/4
0,498
B53004HX
5/2
Button, black
Air
27
G1/4
0,510
B53004HXP
5/3
Button Closed
centre position
Button
Self centring
53
G1/4
0,623
B53004HXX
5/3
Button Vented
centre position
Button
Self centring
53
G1/4
0,623
B53004HXY
5/3
Button Pressurised
centre position
Button
Self centring
53
G1/4
0,623
B53004HXZ
L
Note: The standard button colour is black (X)
For optional colour buttons change 8th character of order code
e.g. B43004HXS = Black button, B43004HZS = Green button,
B43004HYS = Red button.
X = Black
All 3/2 type B43 valves can be
connected either as normally closed 3/2
valve (NC) or normally open 3/2 valve
(NO) as required, by connecting the
primary air supply to port 1 or port 3
Z = Green
Y = Red
Indicates stocked product.
