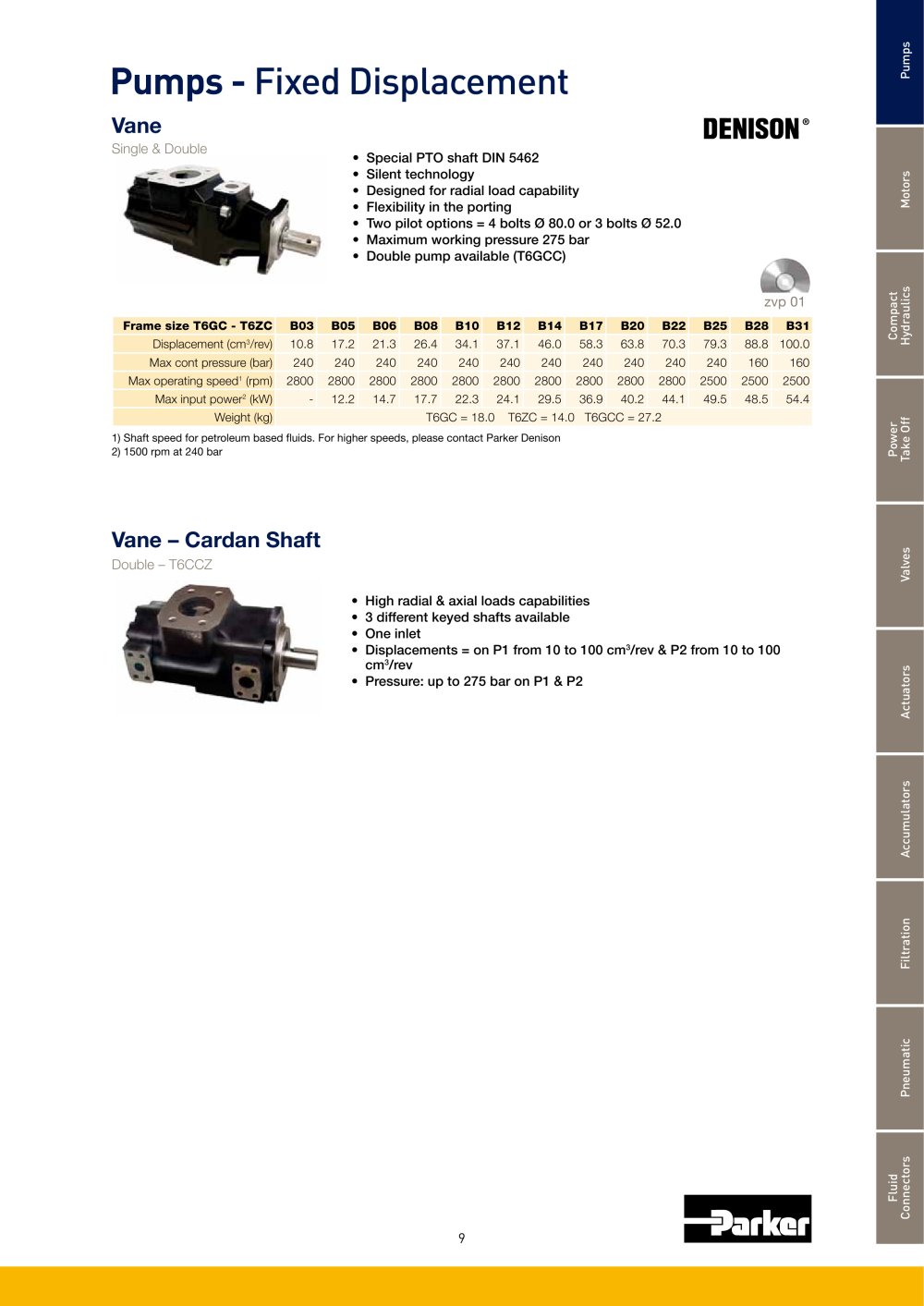

9 zvp 01 ® Pumps - Fixed Displacement Frame size T6GC - T6ZC B03 B05 B06 B08 B10 B12 B14 B17 B20 B22 B25 B28 B31 Displacement (cm3/rev) 10.8 17.2 21.3 26.4 34.1 37.1 46.0 58.3 63.8 70.3 79.3 88.8 100.0 Max cont pressure (bar) 240 240 240 240 240 240 240 240 240 240 240 160 160 Max operating speed1 (rpm) 2800 2800 2800 2800 2800 2800 2800 2800 2800 2800 2500 2500 2500 Max input power2 (kW) - 12.2 14.7 17.7 22.3 24.1 29.5 36.9 40.2 44.1 49.5 48.5 54.4 Weight (kg) T6GC = 18.0 T6ZC = 14.0 T6GCC = 27.2 • Special PTO shaft DIN 5462 • Silent technology • Designed for radial load capability • Flexibility in the porting • Two pilot options = 4 bolts Ø 80.0 or 3 bolts Ø 52.0 • Maximum working pressure 275 bar • Double pump available (T6GCC) • High radial & axial loads capabilities • 3 different keyed shafts available • One inlet • Displacements = on P1 from 10 to 100 cm3/rev & P2 from 10 to 100 cm3/rev • Pressure: up to 275 bar on P1 & P2 Vane – Cardan Shaft 1) Shaft speed for petroleum based fluids. For higher speeds, please contact Parker Denison 2) 1500 rpm at 240 bar Vane Double – T6CCZ Single & Double Filtration Accumulators Actuators Valves Motors Fluid Connectors Pneumatic Pumps Compact Hydraulics Power Take Off
