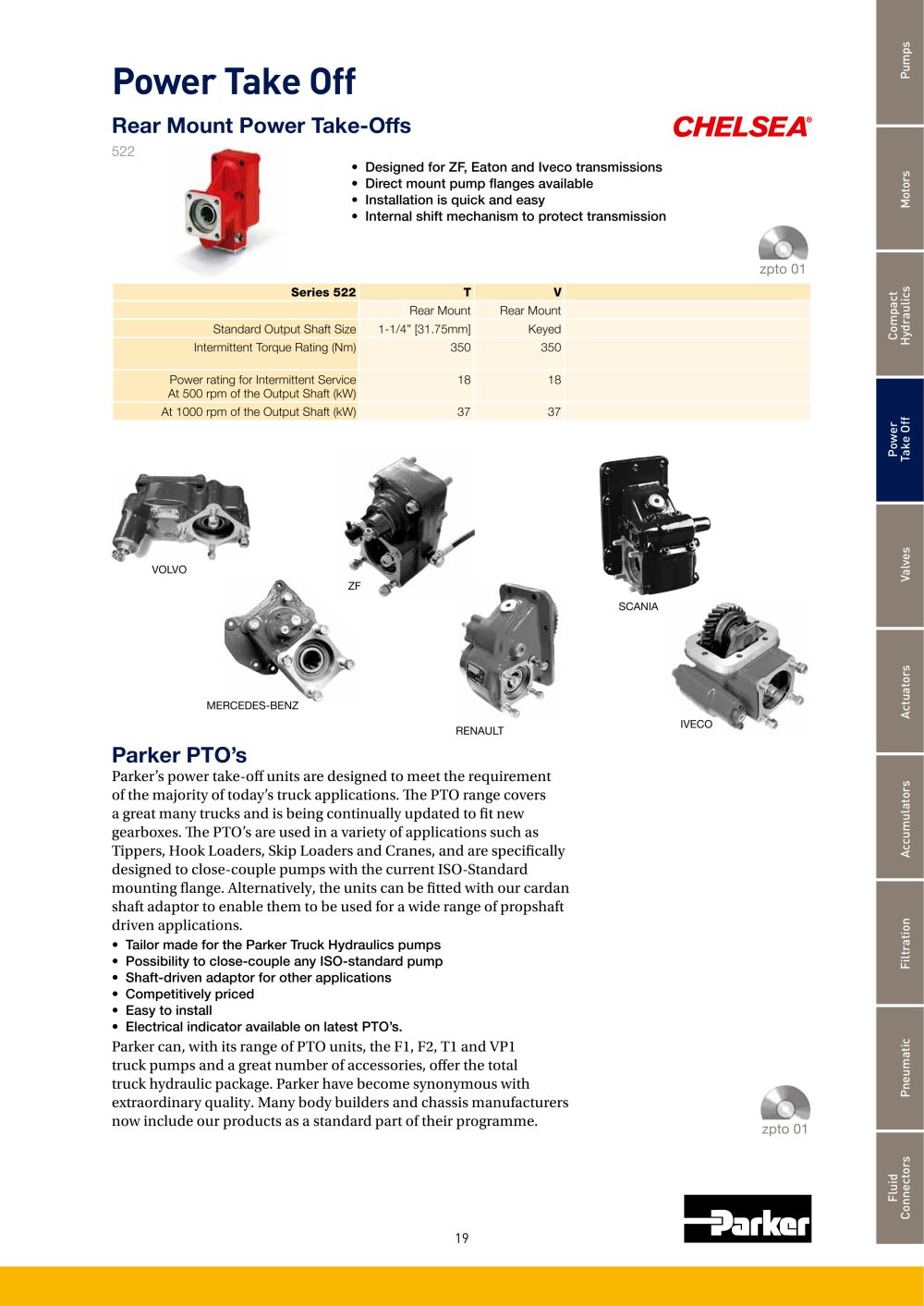

Power Take Off
near Mount Power Take-Offs
522
Designed for ZF, Eaton and Iveco transmissions Direct mount pump flanges available Installation is quick and easy
a
a
a
zpto_01
Series 522
522*T 522*V
Rear Mount Rear Mount
Standard Output Shaft Size
1-1/4" [31.75mm] Keyed
Intermittent Torque Rating (Nm)
350 350
Horsepower Rating for Intermittent Service At 500 rpm ofthe Output Shaft (kW) At 1000 rpm ofthe Output Shaft (kW)
18 18
37 37
Parker PTO's
Parker's power take-off units are designed to meet the requirement of the majority of today's truck applications. The PTO range covers a great many trucks and is being continually updated to fit new gearboxes. The PTO's are used in a variety of applications such as Tippers, Hook Loaders, Skip Loaders and Cranes, and are specifically designed to close-couple pumps with the current ISO-Standard mounting flange. Alternatively, the units can be fitted with our cardan shaft adaptor to enable them to be used for a wide range of propshaft driven applications.
• Tailor made for the Parker Truck Hydraulics pumps
• Possibility to close-couple any ISO-standard pump
• Shaft-driven adaptor for other applications
• Competitively priced
• Easy to install
• Electrical indicator available on latest PTO's.
Parker can, with its range of PTO units, the Fl, F2, Tl and VP1 truck pumps, and a great number of accessories, offer the total truck hydraulic package. Parker have become synonymous for extraordinary quality. Many body builders and chassis manufacturers now include our products as a standard part of their programme.
VOLVO
SCANIA
RENAULT
ZF
MERCEDES
IVECO
19
Parker Hannifin Corporation
Hydraulics Group
